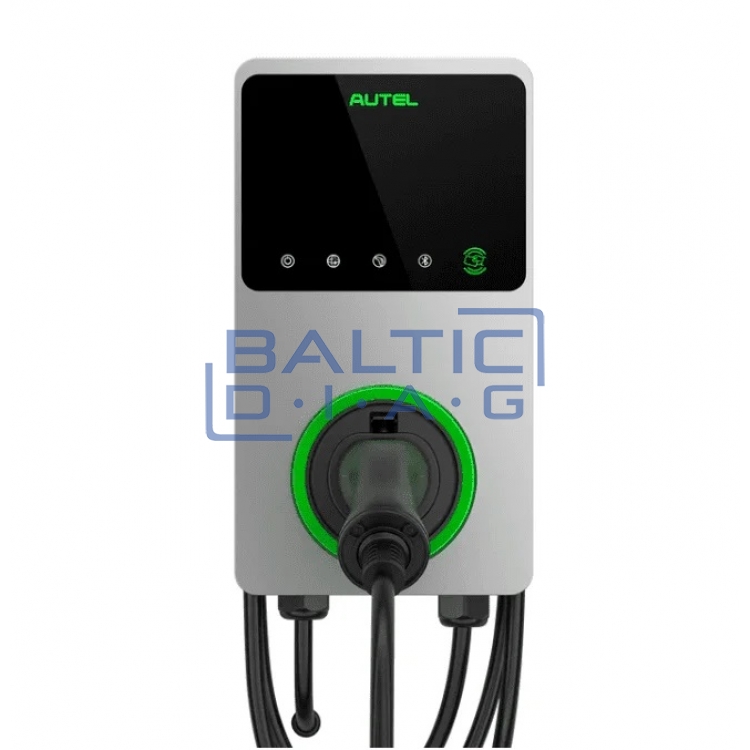

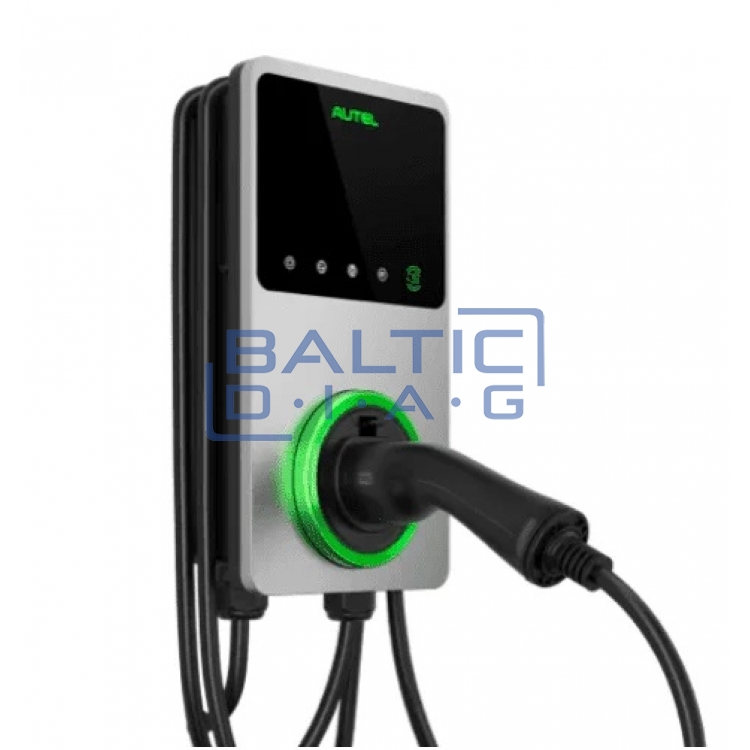

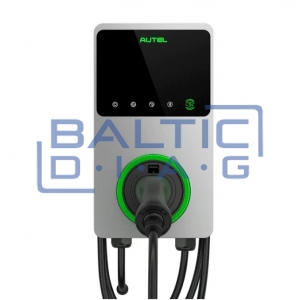

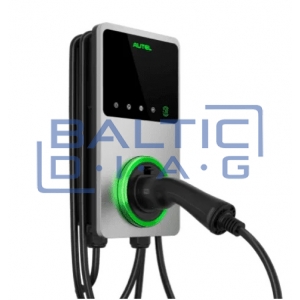

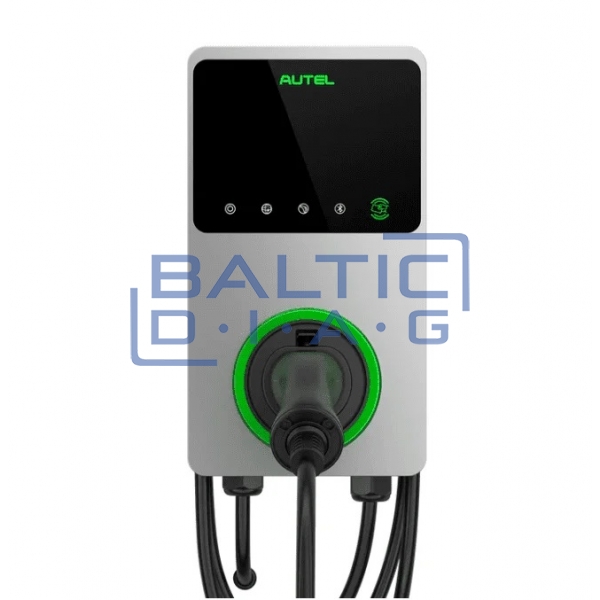

Autel MaxiCharger AC wallbox 7kW, 32A, type 2, single phase (Silver color)

Autel MaxiCharger AC Wallbox 7kW, 32A, Type 2, Single Phase (Silver Color)

Manufacturer: Autel, warranty period - 24 months

The latest Autel MaxiCharger AC Wallbox models are specifically designed for both business and personal use. This EV charger can be managed through a dedicated mobile application, offering simplicity, intuitiveness, and convenience. It is ideal for everyday use, featuring Mode-3 functionality with built-in Type-2 charging cables.

Compatibility:

• Residential homes
• Company parking zones
• Auto service centers
• Shopping center parking lots

Features:

• RFID Card Control: Autel MaxiCharger supports Bluetooth, Wi-Fi, 4G, and Ethernet connectivity.
• Top-notch Safety: World's first triple protection technology for secure charging.
• High Reliability: IP65 protection, suitable for all weather conditions.
• Durability: Smart battery diagnostics technology for extended battery life.
• User-Friendly: Easy to install and maintain.
• Advanced Battery Diagnostics Technology: Ensures optimal battery health.
• Compliance with All Charging Standards.
• Built-in Overload Protection: Ensures safe operation.
• Waterproof and Dustproof (IP65): Reliable performance in outdoor conditions.
• Remote Software Updates and Troubleshooting: Keeps the charger up to date.
• Universal Compatibility: Suitable for all electric vehicles.
• MaxiCharge Mobile App: Monitor, control, and optimize your EV charger anytime, anywhere.
• Dynamic Load Management: Adjusts to power demands actively.

Technical Specifications:

• Charging Mode: Mode 3, Type 2
• Power Output: 7 kW
• Current: 32 A
• Frequency: 50 Hz
• Voltage: 230V ± 15%, 1P + N + PE
• Network Type: TT, TN
• RCD: AC 30mA, DC 6mA
• RCBO: External Type A RCBO
• Protections: Overcurrent, overvoltage, undervoltage, surge protection
• Charging Cable: 5m (optional 7.5m)
• IP and IK Ratings: Enclosure IP65, base IP54; IK08
• Maximum Working Altitude: 2000 m
• Operating Temperature: -40°C ~ +55°C
• Storage Temperature: -40°C ~ +85°C
• Installation: Wall-mounted or floor-mounted with a stand
• Weight: 3600g
• Dimensions: 336 × 187 × 85 mm
• Status Indicators: LED / APP / LCD (other EV chargers)
• User Interface: Autel Charger APP
• Connections: Bluetooth, Wi-Fi, Ethernet
• Communication Protocols: OCPP 1.6J
• User Authentication: App, RFID card, QR code
• Safety Standards: IEC/EN 61851-1, EN 62311, EN 62479, IEC/EN 62955
• Certifications: CE, TUV
