Air-hydraulic jack 50/25t
Air-hydraulic jack 50/25t
Air-hydraulic jack 50/25t
New
Air-hydraulic jack 50/25t
Air-hydraulic jack 50/25t

Air-hydraulic jack 50/25t

  • SKU: BD70473
350.00 €

Prices shown include tax

Send Message

Description

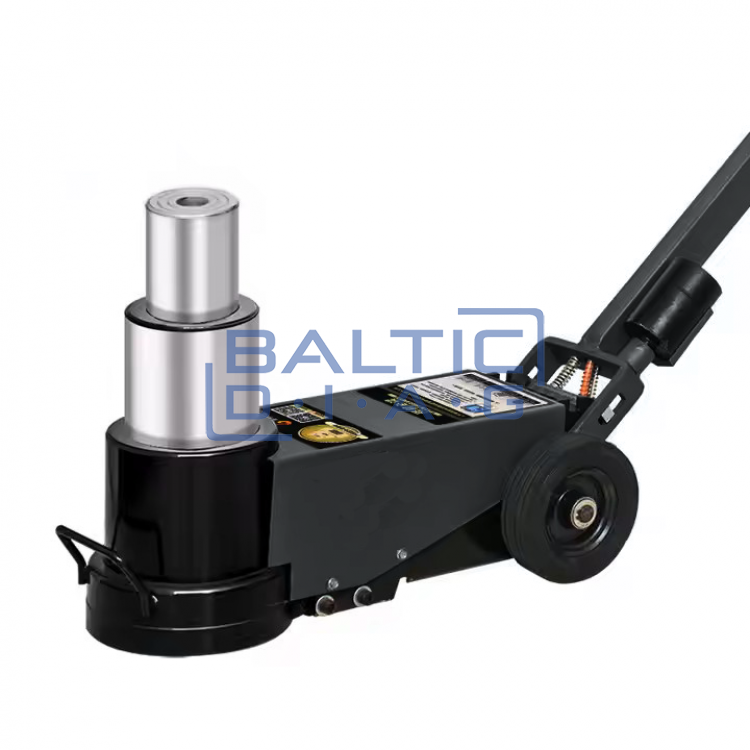

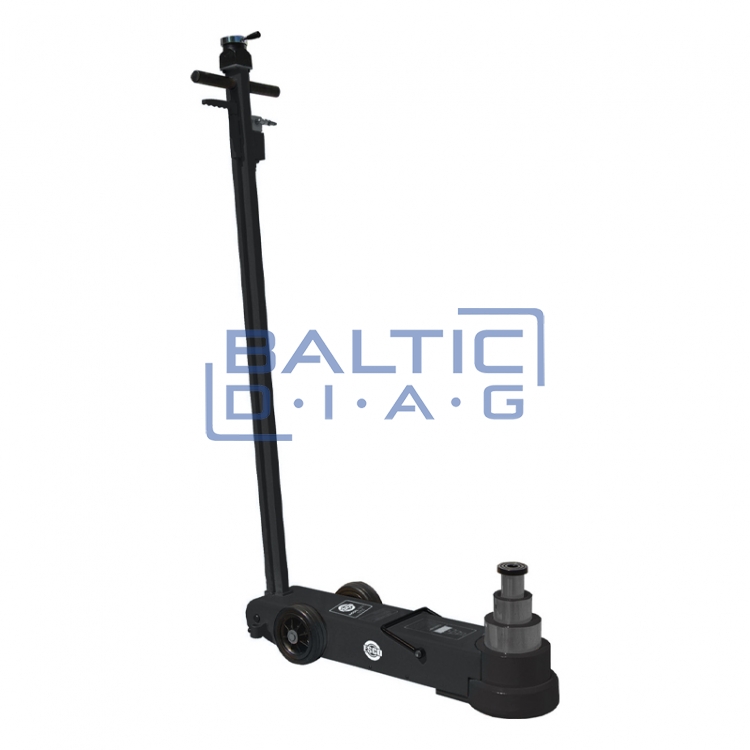

Air-Hydraulic Jack 50/25t

Country of origin: China, warranty period – 24 months

This is an exceptionally durable and professional air-hydraulic jack designed for heavy-duty vehicle maintenance – ideal for lifting trucks, buses, agricultural machinery, and fleet vehicles. The model features a piston head sealing technology commonly used in industrial equipment, ensuring excellent pressure retention and durability even under extreme loads. The three-stage lifting system allows for a maximum lifting height of 210 mm, while the extended 130 cm handle with three lockable positions enables easier access to hard-to-reach areas.

Features:
  • SUPER HEAVY DUTY – robust construction for heavy lifting applications
  • Solid one-piece base ensures greater stability and strength
  • Industrial-grade piston seal design – better pressure retention
  • Long 130 cm handle with 3 locking positions – improved handling
  • Smooth and safe lowering – integrated flow control system
  • Double-polished chrome-plated pistons – reduced oil bypass and wear
  • Air-assisted lowering – faster piston retraction
  • Built-in overload safety valve – protects the unit from excessive loads
  • Mobile – equipped with wheels for easy transportation
Technical specifications:
  • Lifting capacity: 50 t / 25 t / 10 t
  • Minimum height: 210 mm
  • 1st stage lift height: 102 mm (50 t)
  • 2nd stage lift height: 25 mm (25 t)
  • 3rd stage lift height: 94 mm (10 t)
  • Maximum height: 431 mm
  • Handle length: 1304 mm
  • Body width: 165 mm
  • Width at wheels: 289 mm
  • Operating air pressure: 0.8–1.2 MPa
  • Weight: 60 kg
