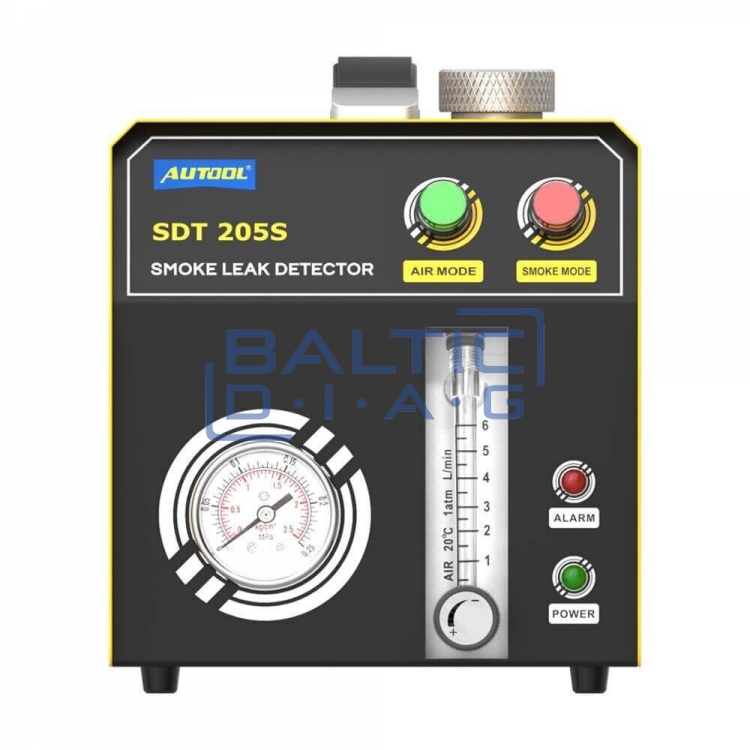

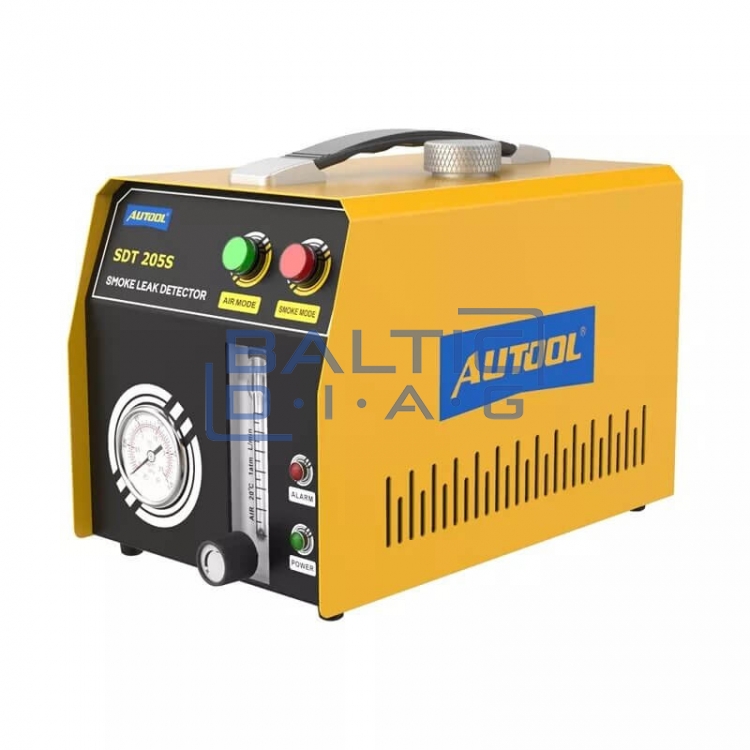

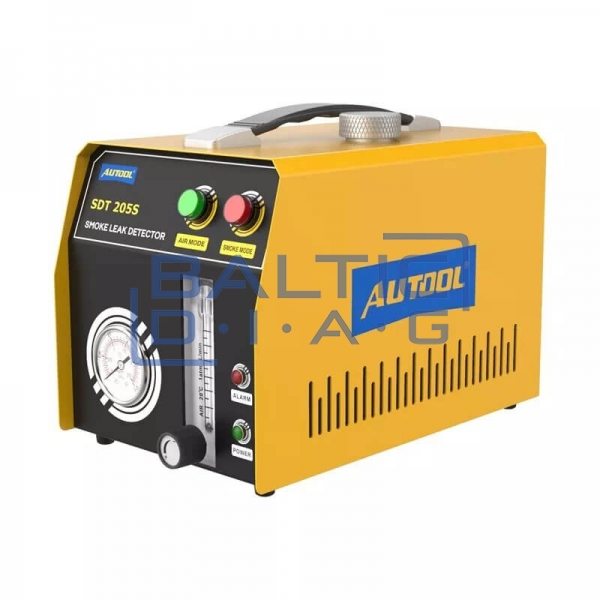

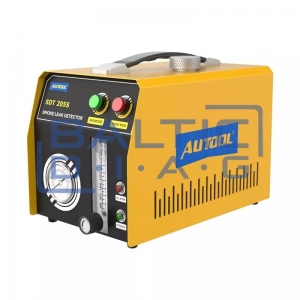

Smoke generator Autool SDT205S

Smoke generator Autool SDT205S

Manufacturer: Autool

Autool SDT205S is professional equipment that allows you to identify various car malfunctions and system leaks. The device will allow you to accurately and quickly determine the location of the problem in such systems as: intake, exhaust, fuel and vapor recirculation systems, cooling, turbine systems, engine tightness, etc.

Performing a leak test:

1. Add 20 ml of special liquid to the device.
2. Connect the device's smoke blowing nozzle to the system under test.
3. Connect the smoke generator to a 12 V power source, turn on the start button.
4. After about 30 seconds the system will be filled with smoke. At that time, try to look for leaky places through which smoke rushes.

Advantages of the smoke generator Autool SDT205S:

• A very wide range of applications. You will be able to test not only various car systems, but also motorcycle, ATV, and boat systems
• A powerful and easy-to-use device. It has a built-in small compressor, so all you have to do is connect the power supply wires to a 12V DC source and it will charge in 30 seconds. is ready to fulfill its purpose
• Advanced technology to work with the EVAP system. The device has two flow meters that allow accurate monitoring of parameter data. You also have the option to adjust the air and smoke flow separately
• Protection against overheating and freezing. The generator has an intelligent protection that allows the device to work even up to a temperature of 75 °C. If the safe temperature limits are exceeded, the device is forced to shut down
• 3 year warranty

Components that make up the device:

• Pressure gauge
• Air flow control valve
• Warning signs
• Air mode selection button
• Smoke mode selection button
• Test oil reservoir cap
• Oil outlet connection
• Smoke outlet connection
• Power supply connector

Technical parameters:

• Outlet pressure: < 15 psi ~ 1 bar
• Output flow: 6 l/min
• Air outlet: integrated small compressor
• Power supply: 12 V / DC
• Device dimensions: 250 x 160 x 165 mm
• Device weight: 3.7 kg
• Package dimensions: 295 x 295 x 205 mm

The set includes:

• 1 x Smoke generator Autool SDT 205S
• 1 x hook
• 1 x rubber connection adapters
• 1 x hard Rubber Connection Adapters (with stock specs)
• 1 x soft Rubber Connection Adapters (with stock specs)
• 1 x standard taper adapter
• 1 x universal Inflatable Seal Pump
• 1 x power cords
• 1 x special valve key
• 1 x test Oil Filling Bottle
• 1 x special EVAP system adapter
• 1 x smoke Hose
• 1 x user manual
