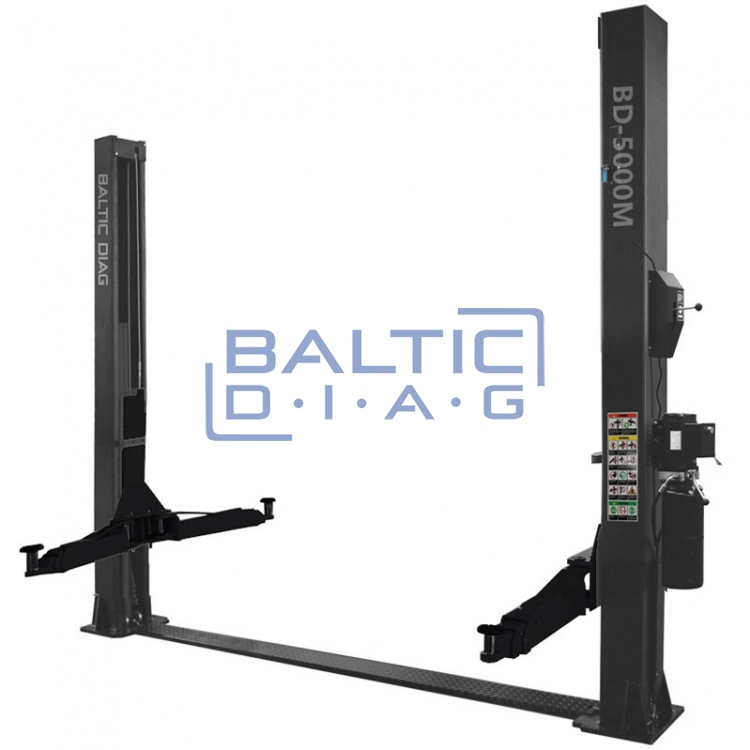

Two post lift for minibuses, 5T BD-5000M
Description:

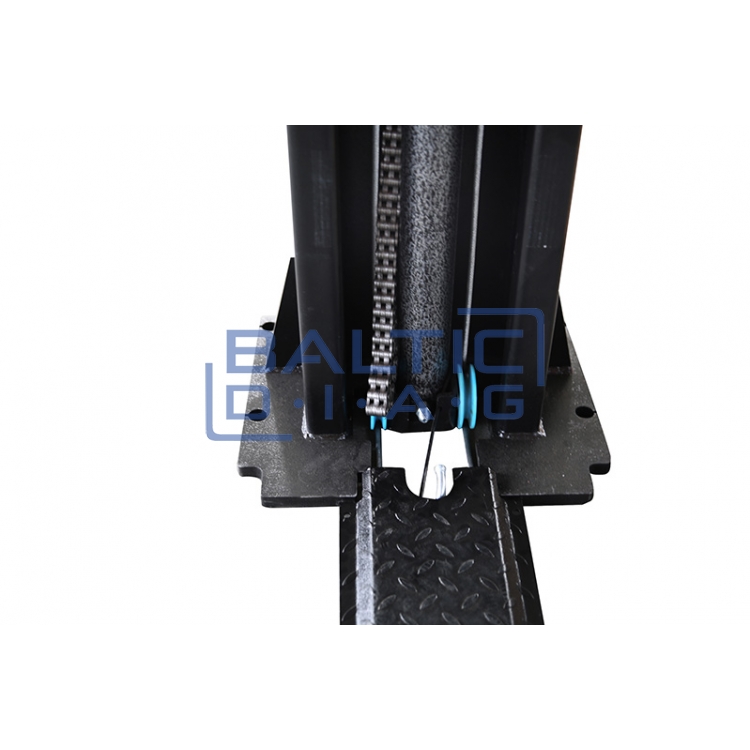

  • The elevator columns are synchronized through the bottom
  • The lifter has a compact design, reduced wear and tear of parts and minimized probability of breakdowns
  • Columns use hydraulic cylinders designed and manufactured according to ANSI standards
  • Self-lubricating UHMW polyethylene sliders and brass bushings
  • Release mechanism made to double protection standard
  • Reinforced arms attachment "carriage"

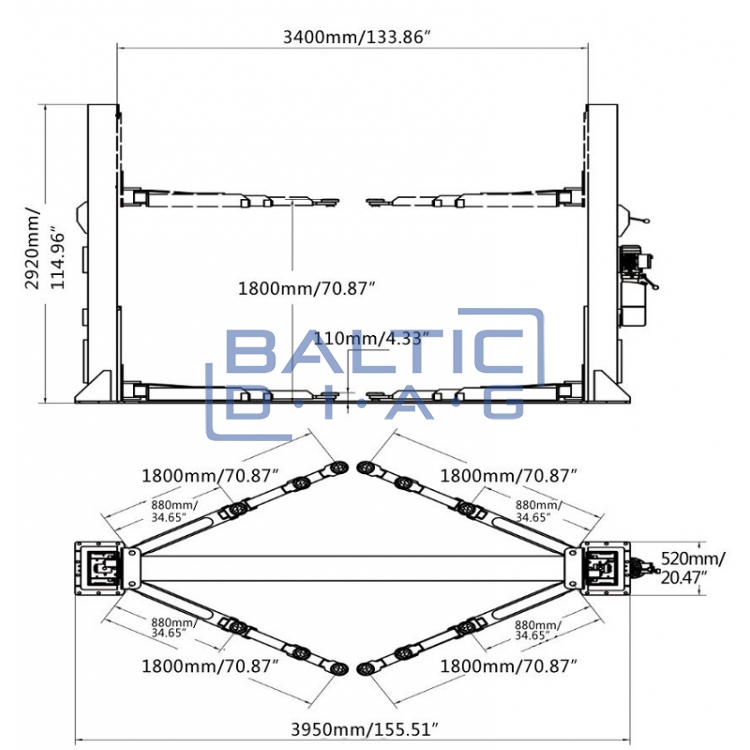

Technical parameters:
  • Lift capacity: 5000 kg
  • Lifting time: 60 - 65 sec.
  • Lift height: 1800 mm
  • Total width of the lift: 3964 mm
  • Width between columns: 3414 mm
  • Maximum width of serviced car: 3050 mm
  • Minimum height of soles: 110 mm
  • Lift weight: 831 kg

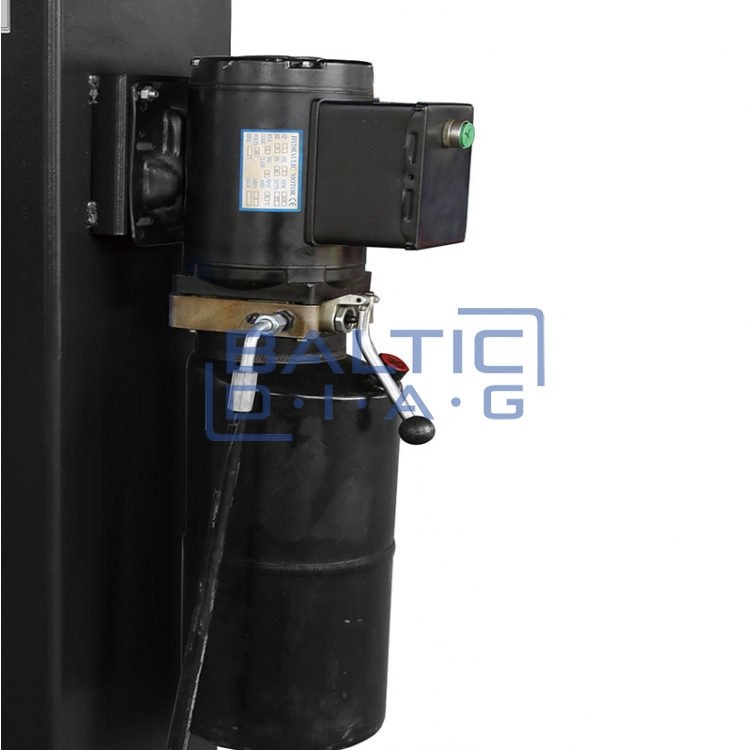

  • Electric motor used: 3 kW
  • Power supply voltage: 380 V / 50 Hz / 3 phases
  • Color code: RAL7021

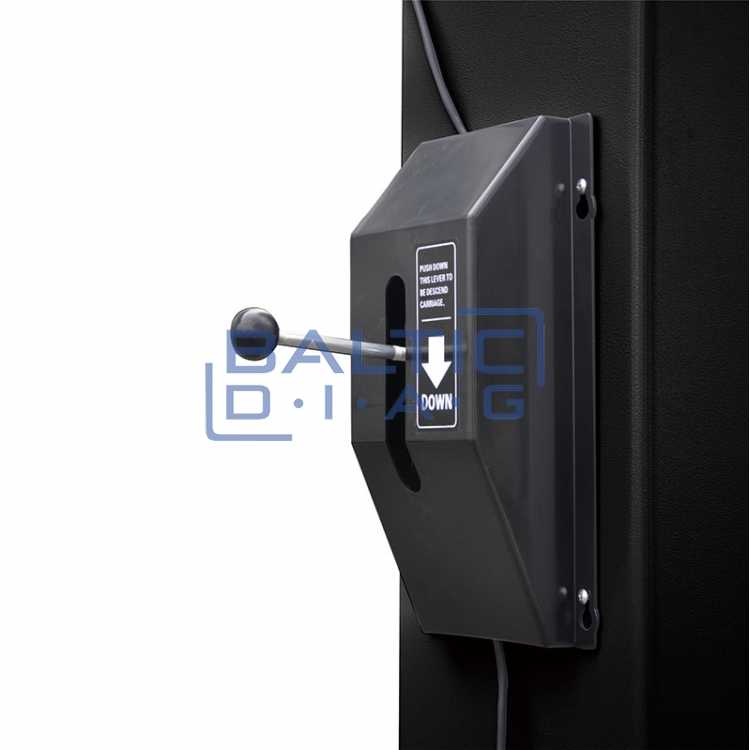

  • Paw protection: manual arm release, on one side.

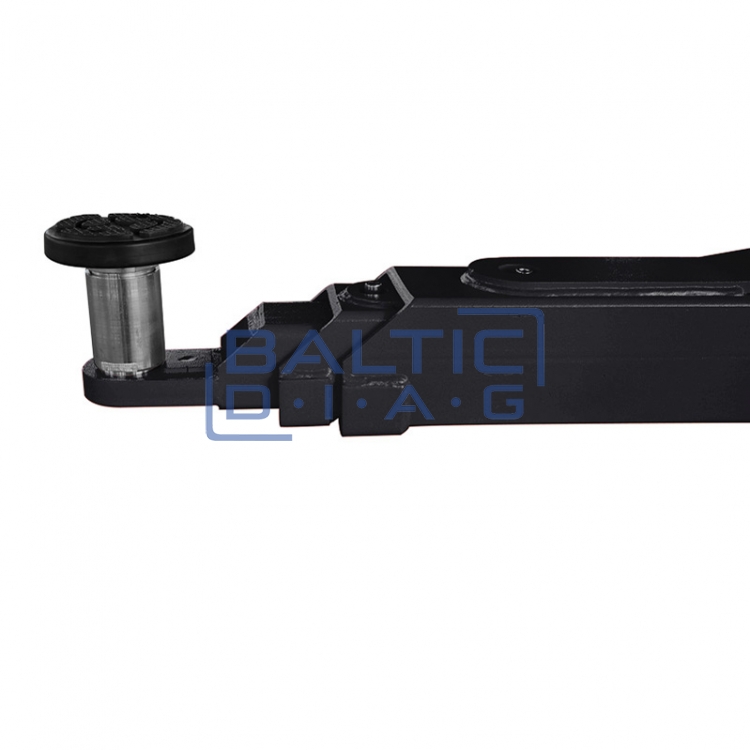

  • 3-stage arm length: 880 – 1800 mm
  • Noise level: < 80 dB(A)
  • CE certificate
