Battery tester GYS PBT 812

Battery tester GYS PBT 812

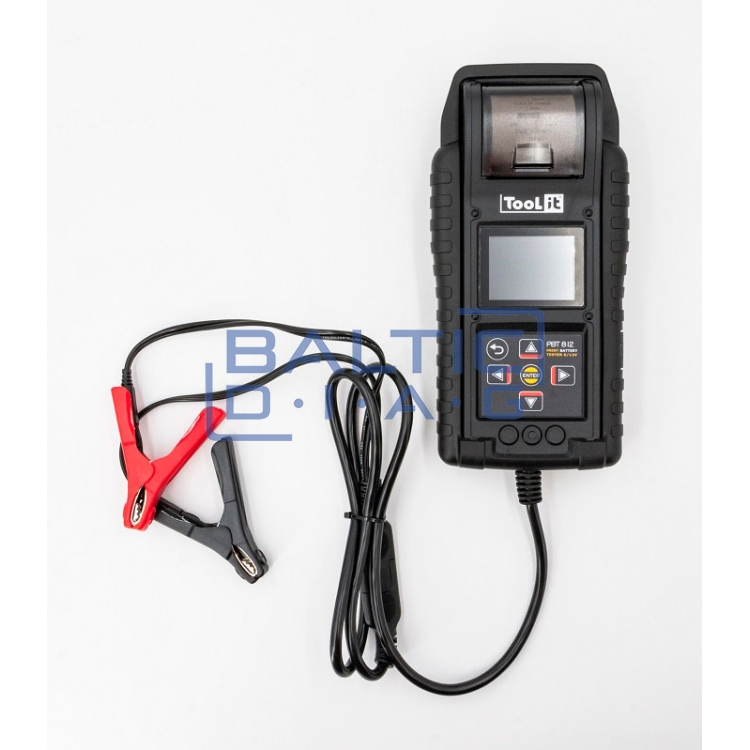

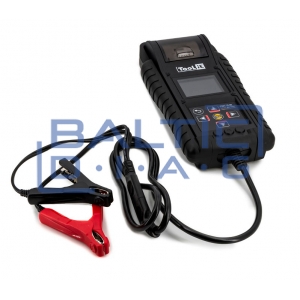

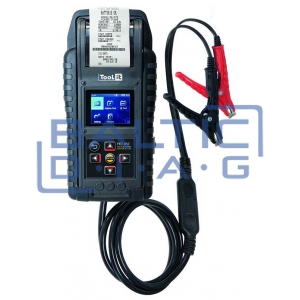

This battery tester GYS PBT 812 is a professional battery and electrical system testing device for mechanics and car maintenance specialists. This tester provides extremely accurate measurement, allowing you to quickly and reliably check batteries. With the integrated printer, test results can be immediately printed and presented to customers or used in documentation. With the GYS PBT 812 Professional Tester, you can be sure that you have a powerful and reliable tool that ensures accurate and fast testing and clear results.

Features:

• The charge and voltage level of the 6 and 12 V batteries are checked
• The possibility to perform a check of the vehicle's 12 V starting system during its start-up
• Ability to carry out vehicle 12 V charging system, measurement of charging voltage is performed without load, with load and current graph is provided

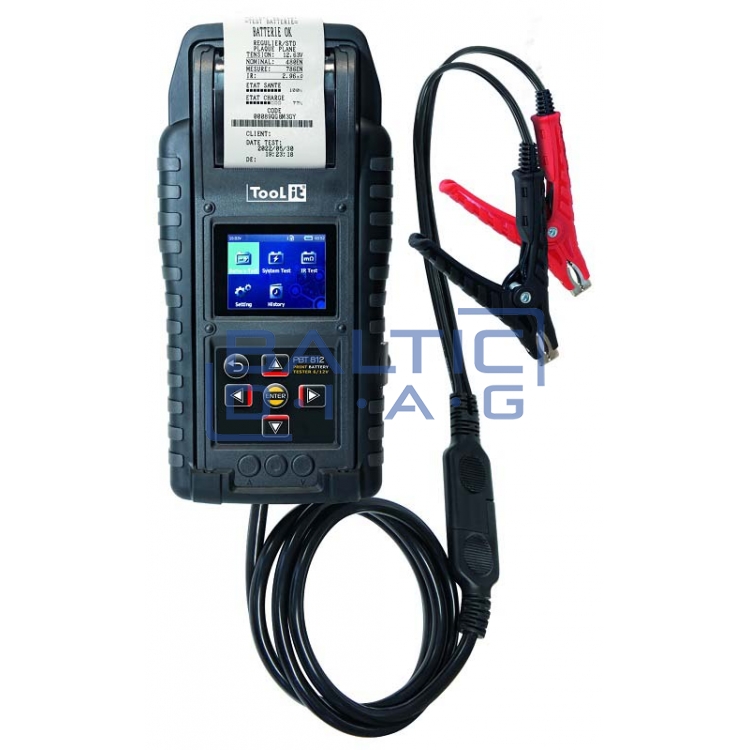

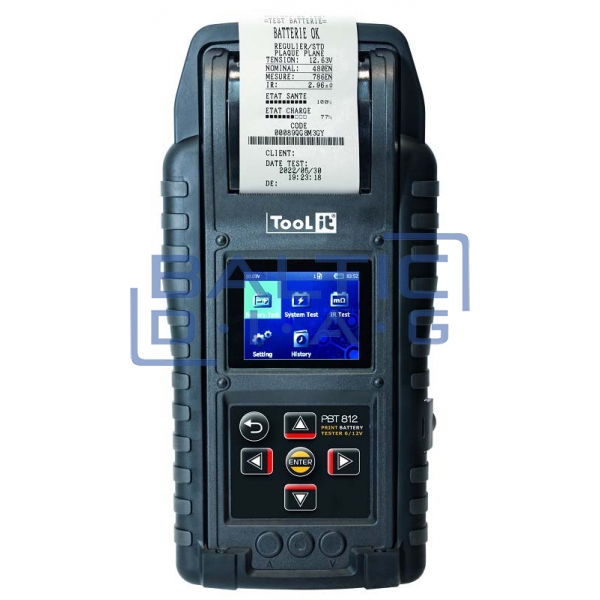

• Built-in thermal printer that allows you to print the obtained results
• Instantaneous analysis: available starting voltage, battery charge level expressed as % (SOC and SOH), and integrated internal battery resistance

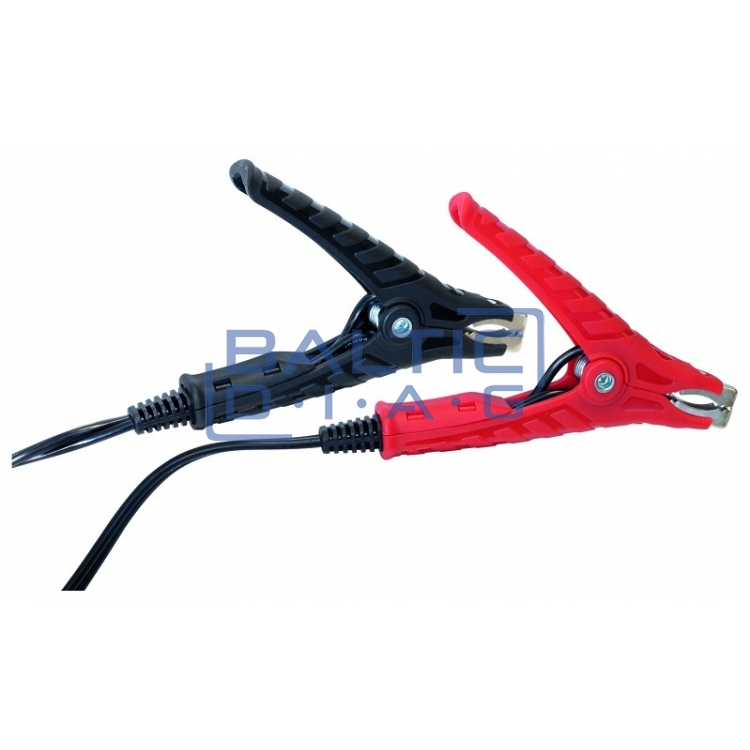

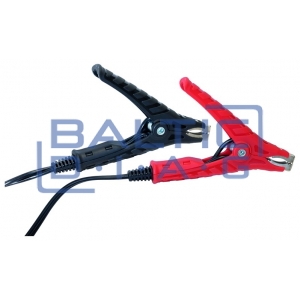

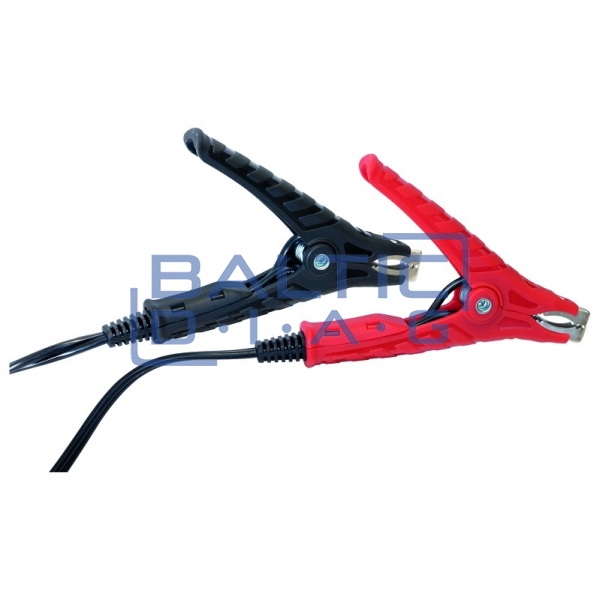

• Insulated terminals

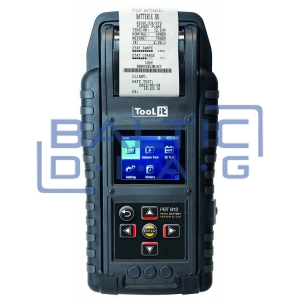

• Large, 2.8" color screen to enhance the information conveyed
• Screen brightness is adjustable
• The inspection report is fully adjustable, it is possible to change the time, date and name
• Multilingual art (10 languages)
• Protection against mixed poles
• ABS plastic body (acid resistant) + shockproof
• Possibility to disconnect the test terminals with a cable

Compatible with battery packs:

• Sealed batteries: VRLA / GEL / AGM Flat / AGM Spiral / SLI
• Standard acid batteries
• Start / Stop batteries (EFB / AGM)

High accuracy:

• Automatic adjustment of measurements depending on the ambient temperature
• Dynamic resistance measurement minimizes battery discharge and provides real measurement results that are not affected by: surface charge, parasitic loads (lights, various indicators, etc.), poor contact.

Efficiency ratios:

• EN1: 25 > 2830 CCA
• EN2: 25 > 2710 CCA
• DIN: 25 > 1685 CCA
• SAE: 25 > 3000 CCA
• JIS: Japanese battery cells
• IEC: 25 > 1985 CCA (international standard)
• CA/MCA: 25 > 3600 CCA (marine batteries)

Technical parameters:

• Suitable for battery batteries: 6 - 12 V
• Battery capacity of measured batteries: 7 > 240 Ah
• Ability to measure: electric current, voltage, and parameters of charging and starting systems, for 12 V vehicles
• Delivery of results: in about 1 sec
• Integrated system: temperature compensation
• Power source: 6 x 1.5V, AA batteries or 18650 Li-ion batteries.
• Dimensions: 280 x 140 x 75 mm
• Cable length: 1800 mm
• Weight: 0.7 kg
