Pneumatic-hydraulic pit floor jack AC Hydraulic GGD150U

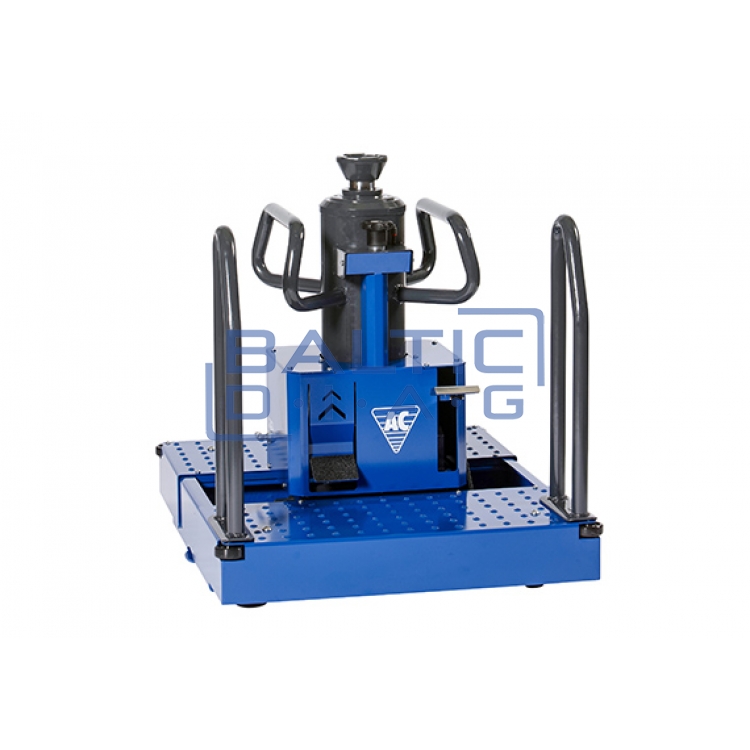

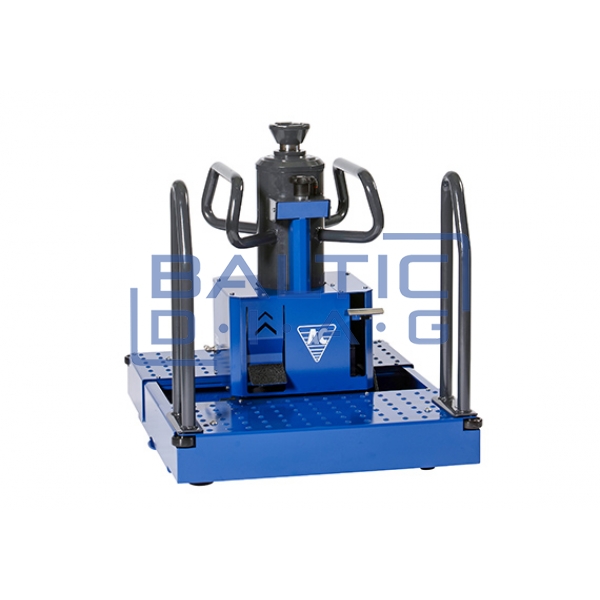

Pneumo-hydraulic floor-mounted pit jack AC Hydraulic GGD150U 15t

Country of origin: Denmark, warranty period – 3 years for hydraulics and 10 years for frame components

Pneumo-hydraulic jack with a swiveling telescopic cylinder designed for use in service pits or under vehicle lifts. Its mobility, ergonomic design and precise control make it ideal for professional repair tasks, especially gearbox mounting and other undercarriage work.

Functions:

• Suitable for use both in service pits and under vehicle lifts
• Swiveling cylinder allows easy access to work zones under the vehicle
• Perfect for gearbox installation and repairs
• Foot control allows precise and safe height adjustment
• Spring-loaded castor locks prevent movement when lifting over 800 kg
• Ball-bearing wheels ensure easy maneuverability in the workshop

Technical specifications:

• Lifting capacity: 15 tons
• Stroke: 1285 mm
• Minimum height: 920 mm
• Maximum height: 2205 mm
• Cylinder swiveling range: 205 mm
• Jack length: 845 mm
• Jack width: 1075 mm
• Cylinder diameter: 60 mm
• Required air pressure: 8.5–12 bar
• Required air flow: 350 L/min
• Weight: 250 kg
