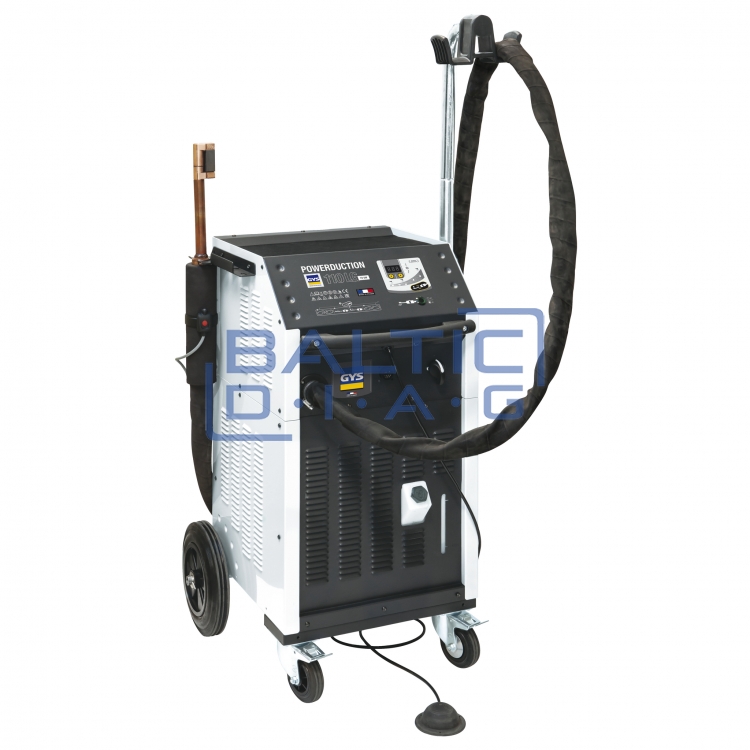

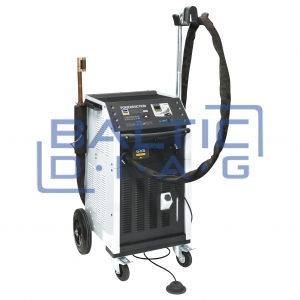

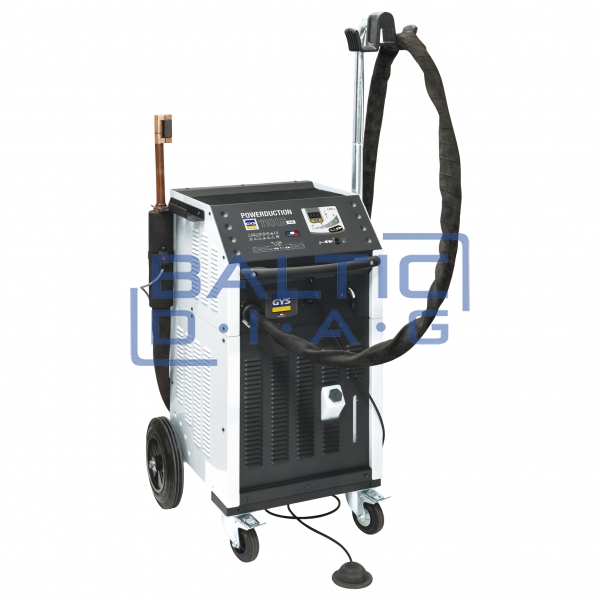

Induction heater GYS Powerduction 110LG


GYS, France; Warranty: 24 months

Description:

The Powerduction 110LG is an ultra-fast induction heater designed to release stuck metal and aluminum parts. The high power of 11 kW can be exploited without interruption thanks to the efficient liquid cooling system. The equipment is powered by a 400V three-phase source, from 16A connector. Suitable for use in any sector: automotive, heavy vehicle repair, construction, manufacturing, marine, rail and other.
Applicability:
- Ironing of curved frames (not stainless steel)
- Loosen bolts, pivot joints without damaging rubber gaskets
- Removing jammed hub bearings
- Exhaust system removal work
- Annealing of metal parts
- Heating for folding
- Soldering, etc.

The heating power reaches 11 kW and the power can be adjusted in 1000W increments. The metal core is heated up to a depth of 6 mm to achieve a redness of 800 ° C.
Instantaneous, flame-free heating to a specific point, so it can be used on wires, pipes or other heat-resistant parts, eliminating the need for disassembly.
The 4 meter inductor cable allows you to work at any height, wherever the machine itself cannot reach.
Comes with pneumatic pedal, which acts as an alternative to the button on the inductor handle. The pneumatic pedal simplifies holding the inductor in difficult access situations.

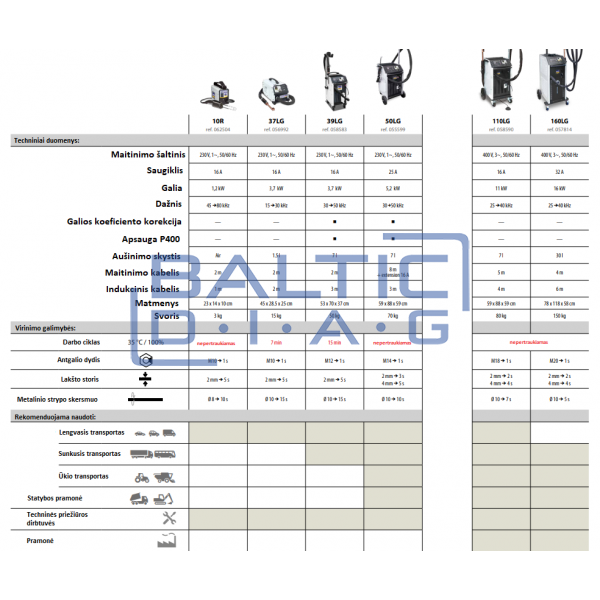

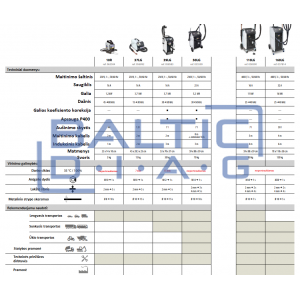

Technical parameters:

- Power supply: 400V three-phase
- Fuse: 16A
- Power: 11 kW
- Frequency: 25 - 40 kHz
- Operating mode: Continuous
- Coolant capacity: 7L
- Dimensions: 59 x 88 x 59 mm
- Weight: 80 kg
- Power cable length: 5 meters
- Inductor cable length: 4 meters
- Code: 058590

Standard equipment and accessories:

Indukcinio kaitintuvo priedai Powerduction 110LG
