Wheel balancer with diagnostic functions geodyna® 8250-2P Hofmann

Wheel Balancer with Diagnostic Functions geodyna® 8250-2P Hofmann

Country of origin: Italy, warranty period - 24 months

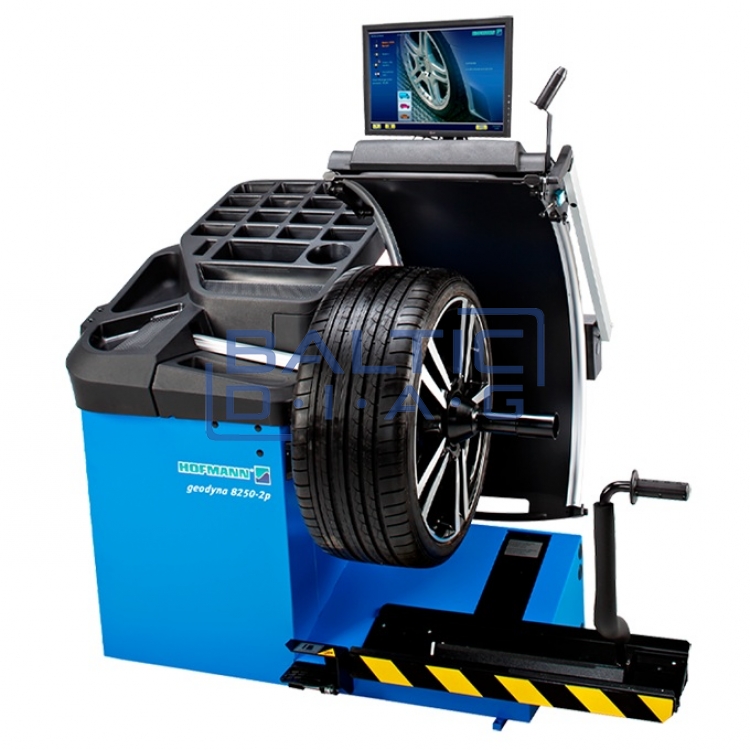

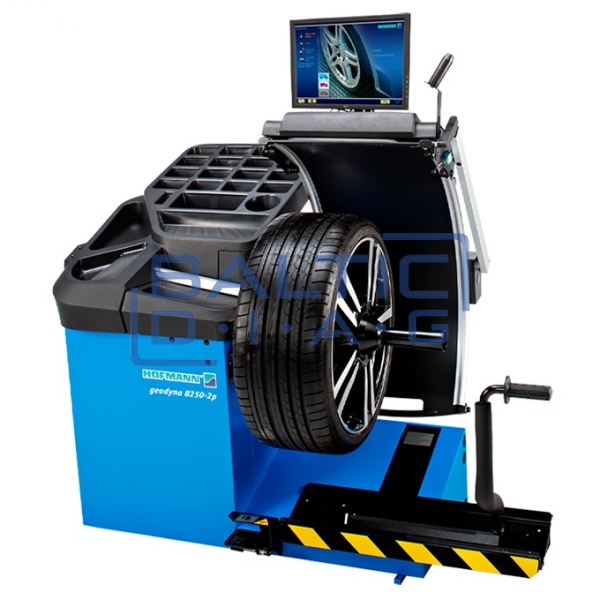

The Hofmann® geodyna® 8250-2P is an advanced, fully automatic wheel balancer designed for professional automotive workshops aiming to optimize workflow and increase profitability. This system not only balances wheels but also detects weight and shape imperfections, including potential steering wheel vibration issues, which are crucial for modern vehicle maintenance. The automatic data entry function allows for rim diameter, offset distance, and the distance from the rim mounting point to its edge to be determined automatically, selecting the appropriate balancing mode, weight type, and placement without human intervention. The integrated wheel lift assists in effortlessly raising the wheel to the required height, reducing the operator's physical strain.

The easyWeight™ technology provides precise laser-guided weight positioning, while Split Weight Mode enables aesthetic concealment of balancing weights behind the spokes, which is particularly beneficial for high-end wheels. The machine is also equipped with automatic spoke recognition, wheel measurement scanning, and the innovative Power Clamp™ electromechanical clamping system, ensuring exceptional accuracy and efficiency.

The geodyna® 8250-2P offers top-tier diagnostics and functionality, allowing workshops to deliver flawless wheel balancing, maximize productivity, and increase profitability.

Features:

• Automatic non-contact data entry system – automatically detects rim diameter, offset, and mounting distance, selecting the optimal balancing mode.
• Diagnostic function – detects weight and shape irregularities that may cause steering wheel vibrations.
• Integrated wheel lift – raises the wheel to the required height, reducing physical strain on the operator.
• easyWeight™ – laser technology for precise weight positioning.
• Split Weight Mode – allows weights to be concealed behind the spokes, maintaining aesthetic wheel appearance.
• Automatic spoke detection – precisely identifies spoke positions, optimizing the balancing process.
• Power Clamp™ – electromechanical wheel clamping system ensuring accuracy and stability.

Technical Specifications:

• Power supply: 230V 50/60Hz
• Dimensions: 190 x 100 x 136 cm
• Maximum rim width: 20" (51 cm)
• Maximum wheel diameter: 42" (107 cm)
• Maximum wheel weight: 70 kg

AUTOMATIC DATA ENTRY

• Eliminating the need for manual input, this intelligent system automatically detects wheel dimensions and selects the appropriate balancing mode, weight type, and placement. This automation accelerates the balancing cycle, reduces errors, and enhances efficiency.

AUTOMATIC SPOKE DETECTION

• Using a laser scanner, this advanced system autonomously identifies the exact number and position of rim spokes. Consequently, the system provides guidance for optimal weight placement behind the spokes, enabling precise balancing using the Split Weight Mode function.

EASYWEIGHT™

• This precision-guided system simplifies weight placement, eliminating the need for guesswork. Using laser technology, it accurately pinpoints the exact weight placement location, ensuring flawless balancing and highly accurate results.

POWER CLAMP™

• Utilizing advanced electromechanical technology, this balancer features a powerful clamping system that consistently and reliably secures the wheel with constant force. This ensures exceptional accuracy and repeatable results every time.

QUICKBAL™

• Designed for maximum efficiency, this feature intelligently adjusts the number of revolutions according to each wheel’s specifications. Operating at maximum speed, it reduces the balancing cycle time, ensuring fast and effective results.

RADIAL AND LATERAL RUNOUT

• Provides a complete diagnosis of wheel and tire uniformity, displaying radial and lateral runout measurements from the first to the third harmonic. This function helps accurately identify balancing issues and suggests potential wheel mounting solutions.

SMARTSONAR™

• This intelligent system uses sonar sensors to automatically detect rim width, eliminating the need for manual input and reducing the possibility of errors. By streamlining the process, it enhances efficiency and accuracy.

SPLIT WEIGHT MODE

• This feature ensures precise balancing while allowing for the concealment of counterweights behind the spokes, maintaining the wheel’s aesthetic appeal and visual presentation.

STOP IN POSITION

• By simply touching the screen, users can activate the system to automatically rotate the wheel to the precise weight application position. This convenient feature simplifies the process and enhances operational efficiency.
