Timing Adjustment Tool Kit Ford 1.0 EcoBoost

Timing Adjustment Tool Kit Ford 1.0 EcoBoost

Country of Origin: Poland, warranty period - 24 months

The timing adjustment tool kit for Ford 1.0 EcoBoost is a professional tool set designed for locking and adjusting the engine timing system. It is compatible with Ford vehicles equipped with 1.0 EcoBoost and 1.1 EcoBoost engines. The kit is used for engine repairs, timing belt replacement, VCT (Variable Camshaft Timing) adjustment, and camshaft timing corrections.

Features:

• Designed for precise locking and adjustment of the engine timing system.
• Suitable for timing belt replacement, VCT adjustment, and camshaft timing work.
• Compatible with a wide range of Ford models with 1.0 and 1.1 EcoBoost engines.

Technical Specifications:

Applications:

• Ford Models: Fiesta, Focus, B-MAX, C-MAX, EcoSport, Grand C-MAX, Grand Tourneo Connect, Tourneo Connect, Transit Connect, Transit Courier (2011–2017).

Engine Types:

• 1.0 EcoBoost (Econetic / SCTi) 3-cylinder engines
• 1.1 EcoBoost engines

Engine Codes:

• 1.0 EcoBoost: M1CA, M1CB, M1DA, M1DC, M1DD, M1JA, M1JC, M1JE, M1JH, M1JJ, M2DA, M2DB, M2DC, M2GA, M2GB, P4JA, P4JB, P4JC, P4JD, SFCA, SFCB, SFCC, SFCD, SFCE, SFCF, SFDA, SFDC, SFDB, SFJA, SFJB, SFJC, SFJD, SFJE, SFJH, SFJJ, SFJK, SFJL, SFJN, SFJP, XMJA, XMJB, XMJC, XMJD.
• 1.1 EcoBoost: XPJA, XPJB, XPJC, XPJD, XYJA, XYJB, XYJC, XYJD, XYJE.

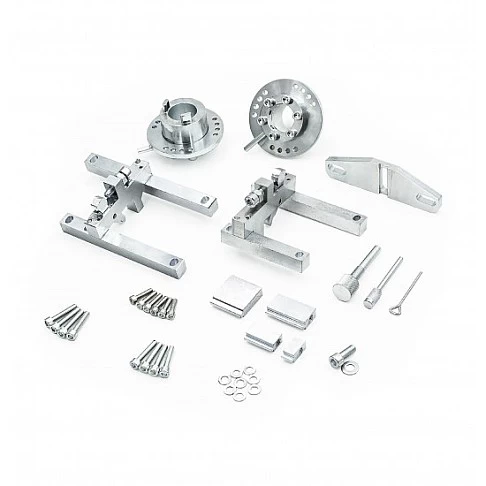

Contents:

• Crankshaft locking pin – OEM 303-1604
• Tension roller locking pin – OEM 303-1054
• Flywheel locking tool – OEM 303-1602
• Intake camshaft locking tool – OEM 303-1605/1
• Exhaust camshaft locking tool – OEM 303-1605/2
• Intake camshaft VCT adjustment locking tool – OEM 303-1606/1
• Exhaust camshaft VCT adjustment locking tool – OEM 303-1606/2
