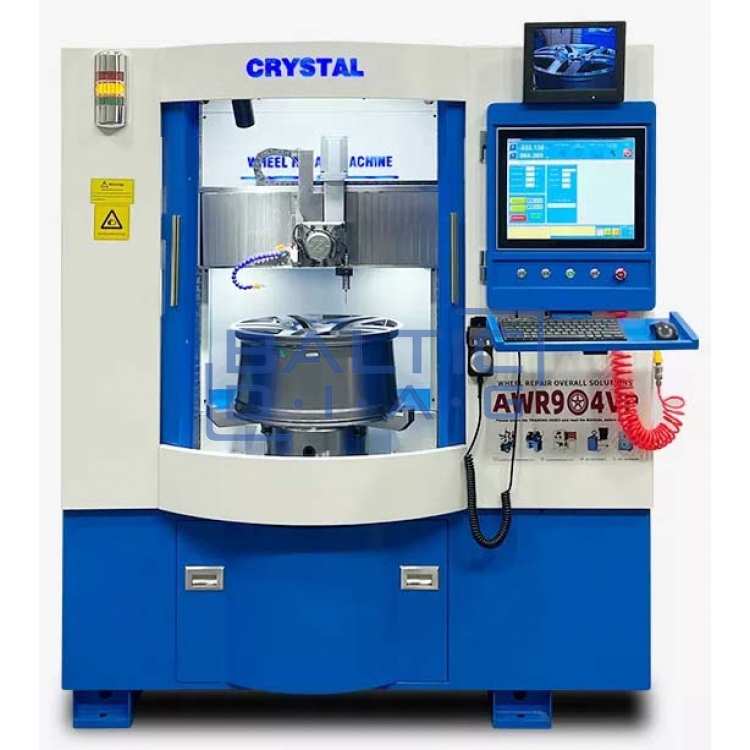

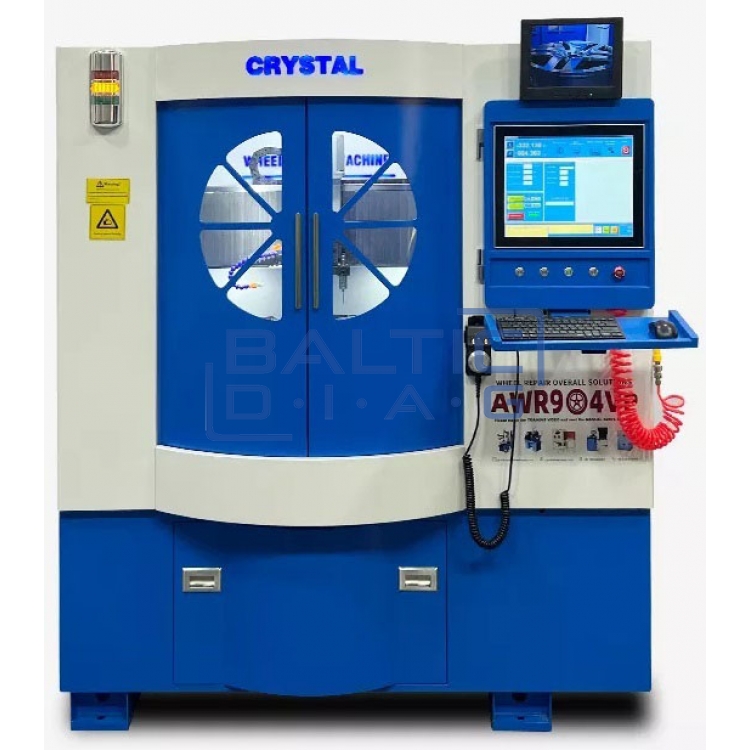

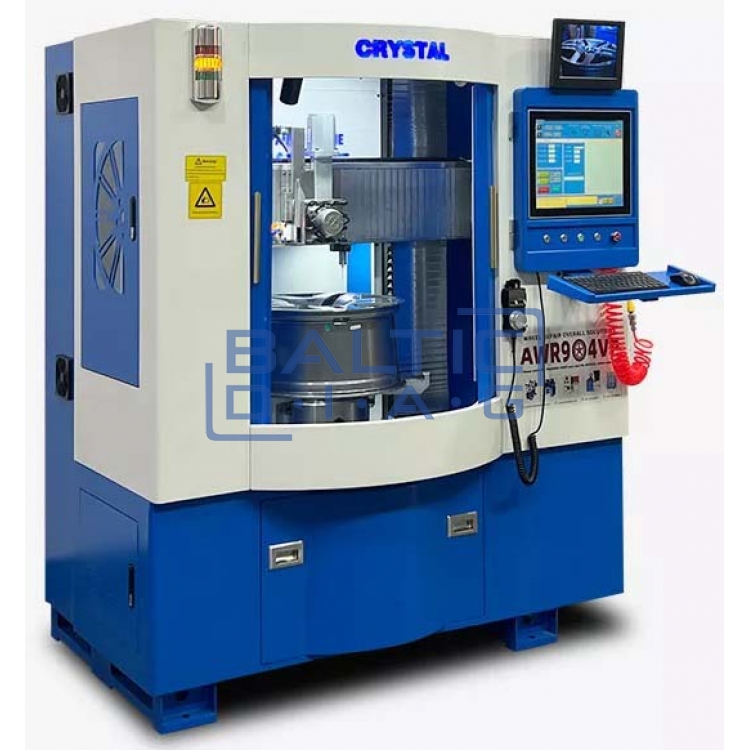

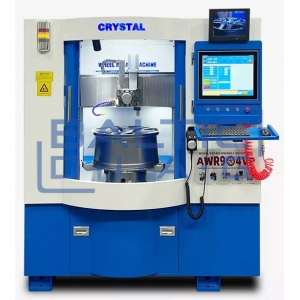

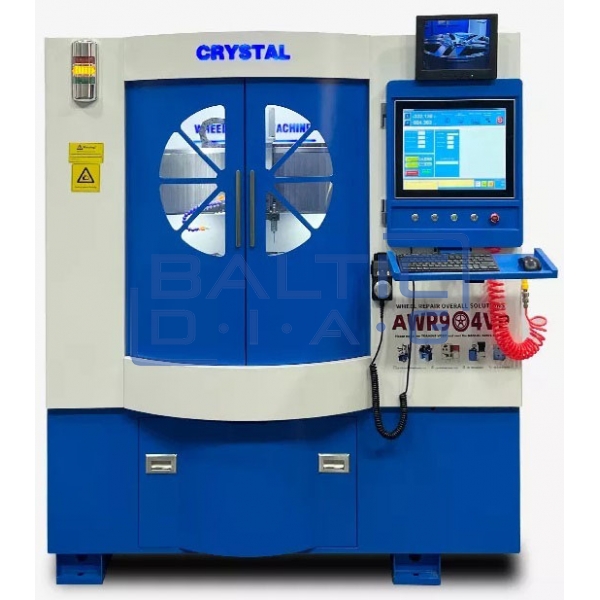

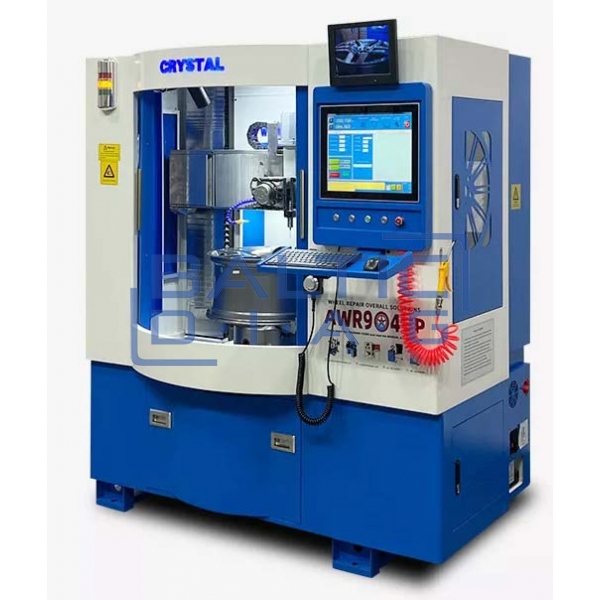

Vertical automatic rim lathe AWR904VP

Vertical Automatic Wheel Lathe AWR904VP

Functions:

• Multifunctional control panel – 17" touchscreen with the latest "Crystal" software and remote control capability
• High-precision turning guide rails – 4-directional movement on the Z-axis and 2-directional movement on the X-axis ensure smooth operation
• Fully electric tool holder – tool change with a single button press in just 2 seconds, maintaining an accuracy deviation of only 0.005 mm
• Cast iron frame structure – ensures stability, precision, and resistance to external forces during the turning process
• Optimized design – pneumatic chip-blowing system with stainless steel control buttons
• Additional lighting – option to install 1 or 2 auxiliary lights

Technical Specifications:

• Control system: Crystal V2.0
• Max. turning rim size: 32"
• Occupied space: 1.68 m³
• Movement range (X / Z-axis): 914 / 590 mm
• X / Z-axis positioning accuracy: 0.001 mm
• Turning guide rails: 2 / 4 linear rails
• Clamps: 13" holder with 3 extended jaws (expandable to 6 jaws)
• Spindle rotation speed: 10 – 1500 RPM
• Lathe motor power: 9.02 kW
• Tool holder: 4-position electric tool holder
• Detection method: Contact probe (compatible with laser detection)
• Power supply: 400 V / 3-phase / 50 Hz
• Lathe dimensions: 1650 x 1020 x 1960 mm
• Packaging dimensions: 1810 x 1230 x 2200 mm
• Weight: 1500 kg
