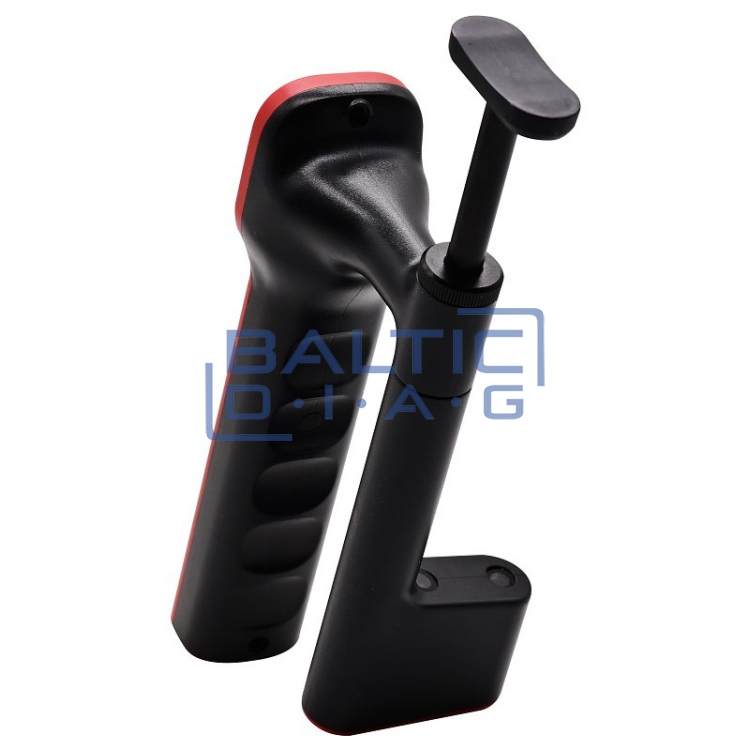

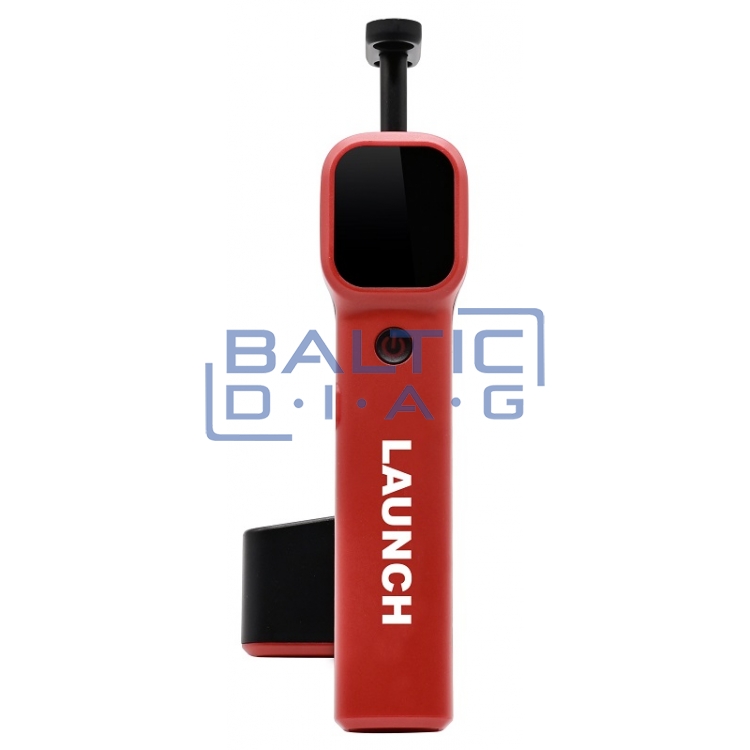

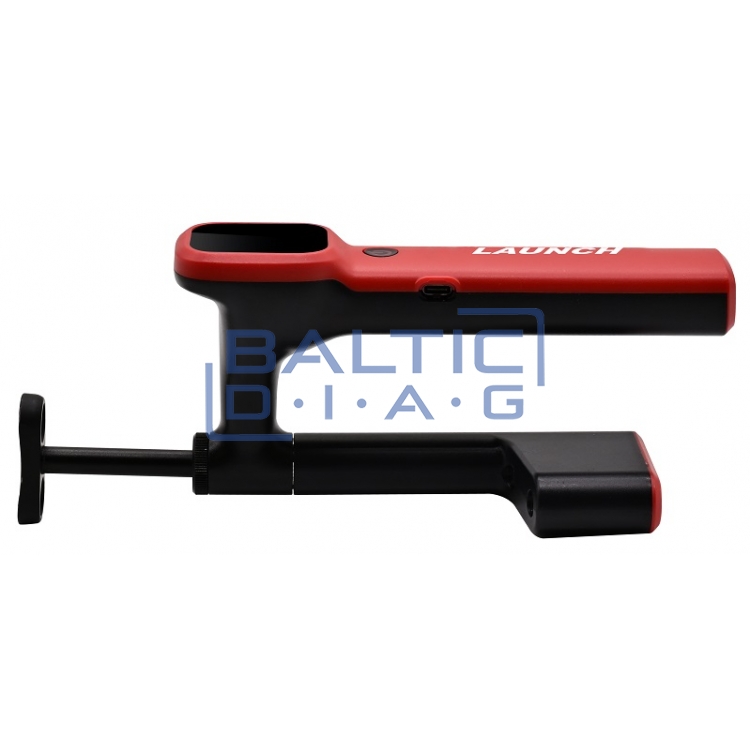

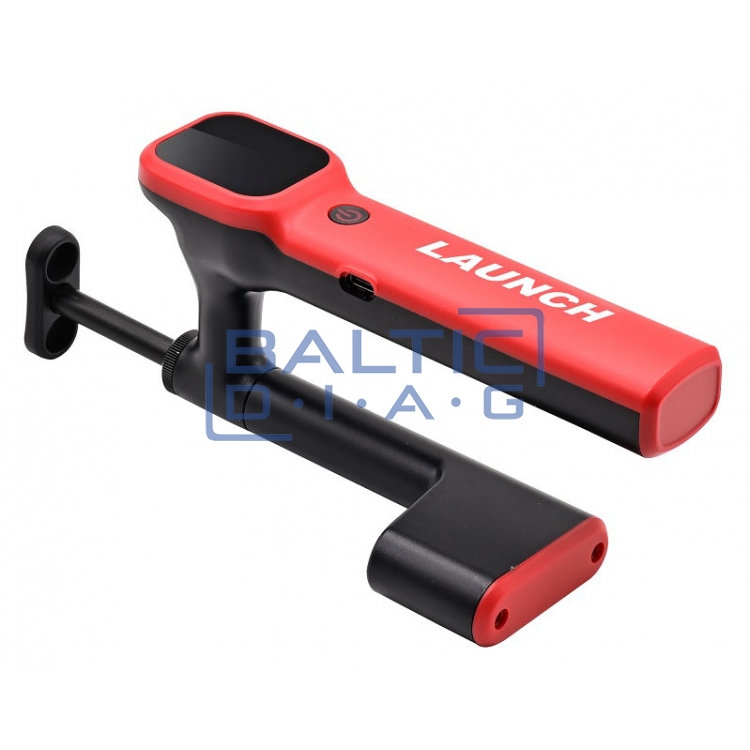

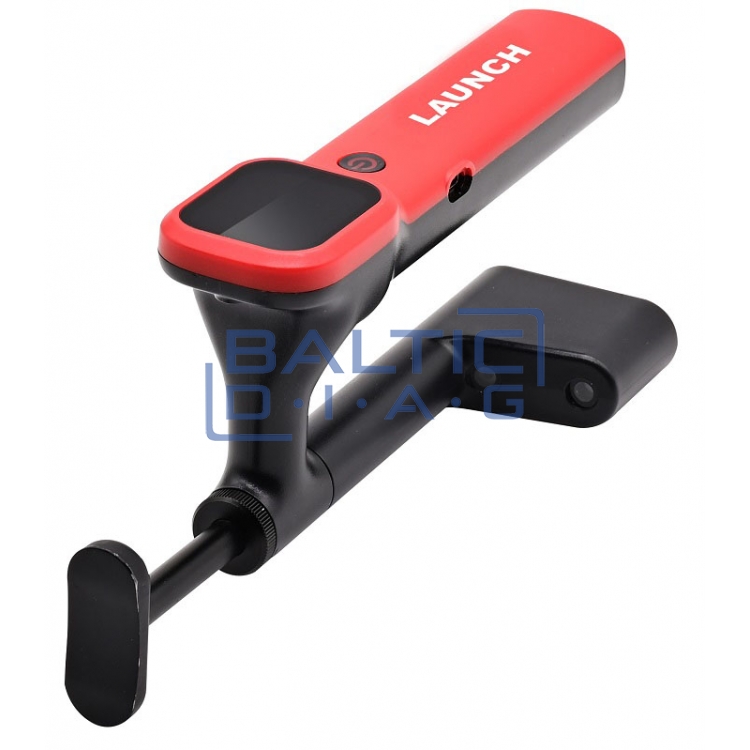

Tire tread depth measuring device Launch TTM113

Tire tread depth measuring device Launch TTM113

This new Launch TTM-113 is a handheld tire tread measuring tool that allows you to measure the entire tread depth in one scan. Measuring a single tire takes only 3 seconds, and the measurements taken are accurate to 0.1 mm. The device is equipped with a 1.7-inch LCD touch screen that can display real-time measurement data, tire wear analysis, and detailed replacement and maintenance recommendations.

Features:

• Accurate and efficient laser measurement
• Measurement accuracy 0.1 mm
• It only takes 3 seconds to check the entire tread
• The possibility of taking measurements without removing the wheel or lifting the car
• Measures all areas of the tire tread
• Detailed analysis of tire condition
• Tire wear analysis is generated, recommendations for replacement or repair are provided
• Detects abnormal tire wear, such as due to improper wheel alignment
• Convenient report of research results
• You can share the measurement results by scanning the QR code
• Automatic download of viewing results via WI-FI

Technical parameters:

• Accuracy: 0.1 mm
• Battery capacity: 3000 mAh
• Laser width: 180 mm
• Charging connector: Type C
• Processor: ARM Cortax A53
• Power supply: 5 V / 1 A
• RAM/ROM: 2GB/8GB
• Operating temperature: 0 ~ 45 °C
• Display: 1.7" inch, 240x280 pixels
• Storage temperature: -20~60°C
• Wi-Fi: 2.4 GHz
• Size: 224×97×70 mm.
• Weight: 0.9 kg
• Video camera: 2 Mgpx, 30 frames per second
