Autel MaxiTPMS ITS600 PRO tire sensor programming and diagnostic equipment

Autel MaxiTPMS ITS600 PRO tire sensor programming and diagnostic equipment

Manufacturer: Autel

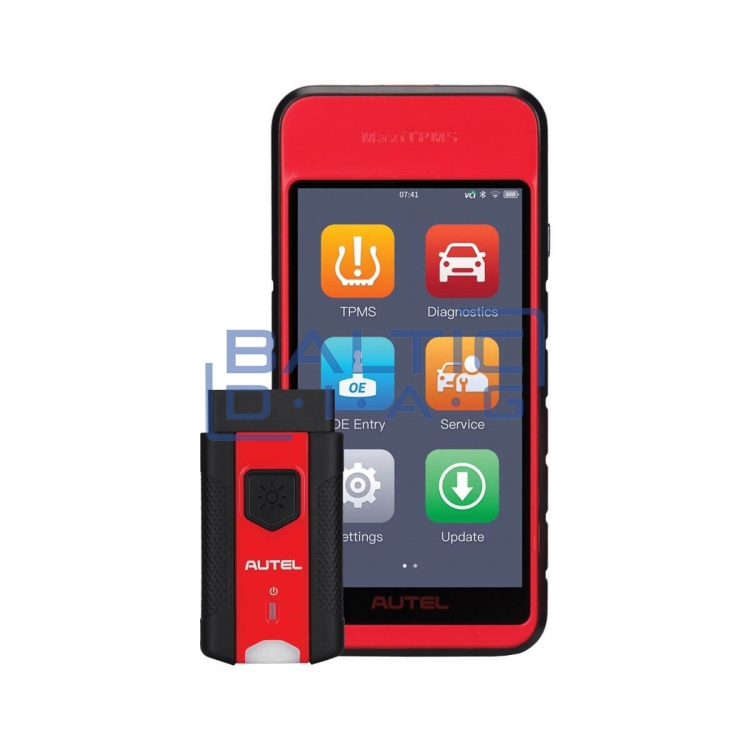

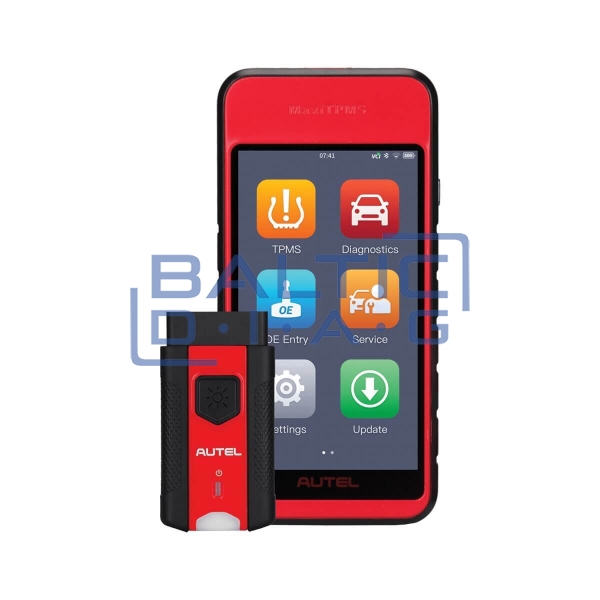

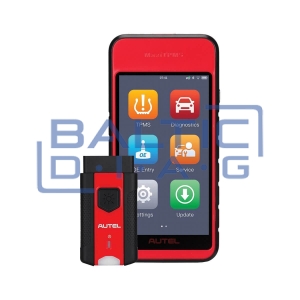

MaxiTPMS ITS600 PRO is a wireless touch screen Android tablet that offers full TPMS diagnostic, service functions, full system diagnostics and extensive menus of commonly performed service tasks. The tablet has a 5.5-inch color screen and a Bluetooth interface (VCI). Compatible with US, Asian and European vehicles equipped with TPMS. The ITS600 PRO can activate, scan and copy almost all TPMS sensors known today and can program a single sensor to match 99% of cars. The device can perform all system diagnostics, read/delete error codes and monitor live parameters. The ITS600 Pro can be equipped with the TBE200 tire tread and brake disc wear analysis tool. The tablet comes with free lifetime updates for TMPS sensors, while system diagnostics and service repair features only have one-year licenses that can be extended.

TPMS Features:

• Activates, reads and reprograms all known sensors
• Improved tablet
• Fast OBDII scan for most vehicles
• Programmers MX sensors to replace 99% of OE sensors
• Copies by OBD sensor programming
• Four MX sensor program modes; batch program for up to 20 MX sensors
• With wireless Bluetooth vehicle communication interface (VCI)
• Resetting the tire pressure table value
• Read/clear TPMS system codes and view live data
• Free Wi-Fi TPMS firmware updates for the lifetime of the tool
• Fast VIN retrieval with optical VINScan
• QR code scan/barcode scan, license plate scan, auto VIN detection and manual entry
• Using VIN decoding, determine the MMY and sensor OE part number

Technical data:

• Operating system: Android 9.0
• Processor: Quad-core processor (1.5 GHz)
• Memory: 1 GB RAM DDR4 and 64 GB ROM
• Screen: 5.5 inch LCD touch screen with 1280x720 resolution
• Wi-Fi / USB 2.0, Type C / BT
• Sensors: Light sensor automatically adjusts brightness
• Power and battery: 3.8V/5000mAh lithium polymer battery
• Charges via 5V AC/DC power supply
• Battery charging input: 5V/2A
• Power consumption: 600mA (LCD on, default brightness, Wi-Fi on) @3.8V
• Operating temperature: -10 to 45°C
• Storage temperature: -20 to 60°C
• Dimensions: 183.0mm x 89.0mm x 22.0mm
• Weight: 368 g

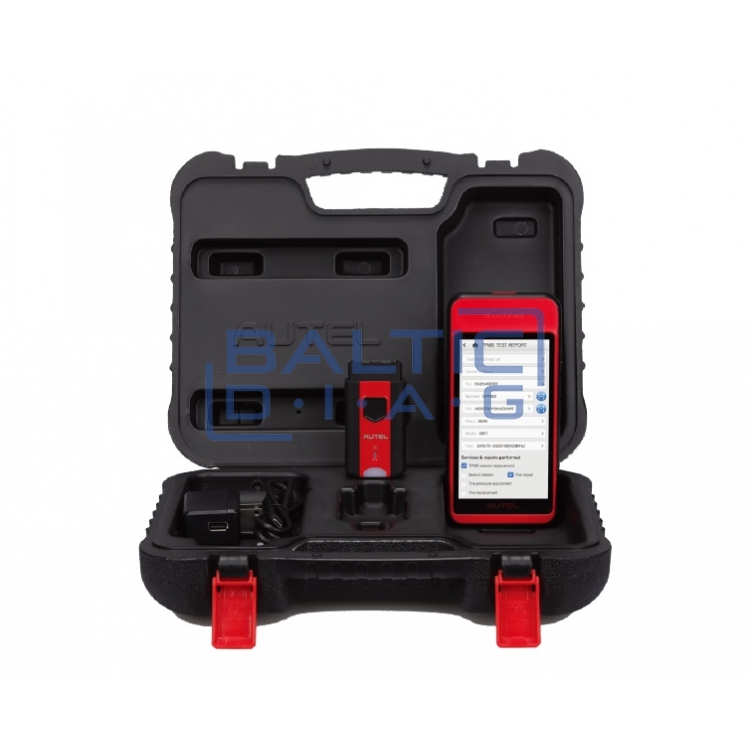

Complete set:

• The main device
• MaxiVCI V200
• Power adapter
• Type-C USB cable
• Hexagon key
• User Guide
• Suitcase

Main differences between ITS600 and ITS600 PRO devices.
