Smoke generator Autool SDT103

Smoke generator Autool SDT103

Manufacturer: Autool

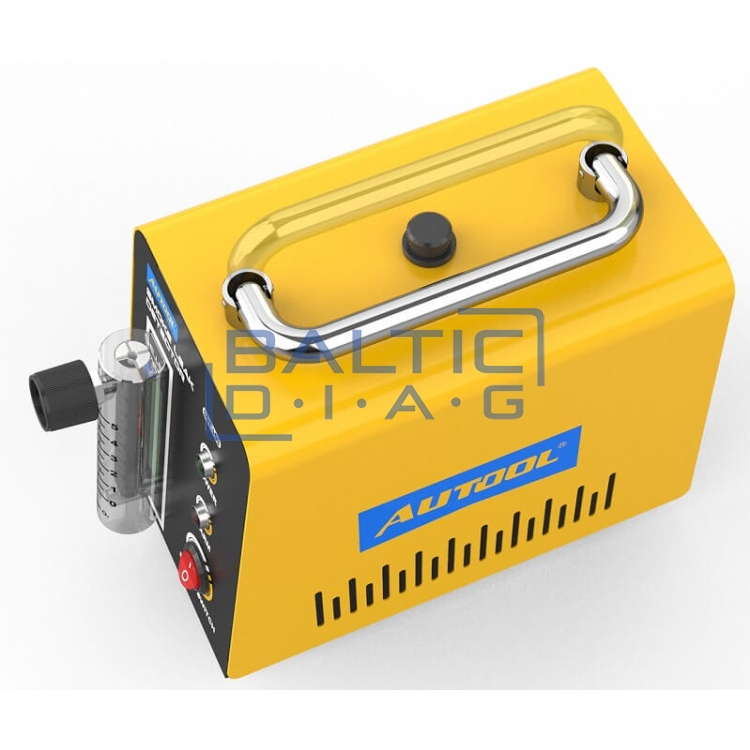

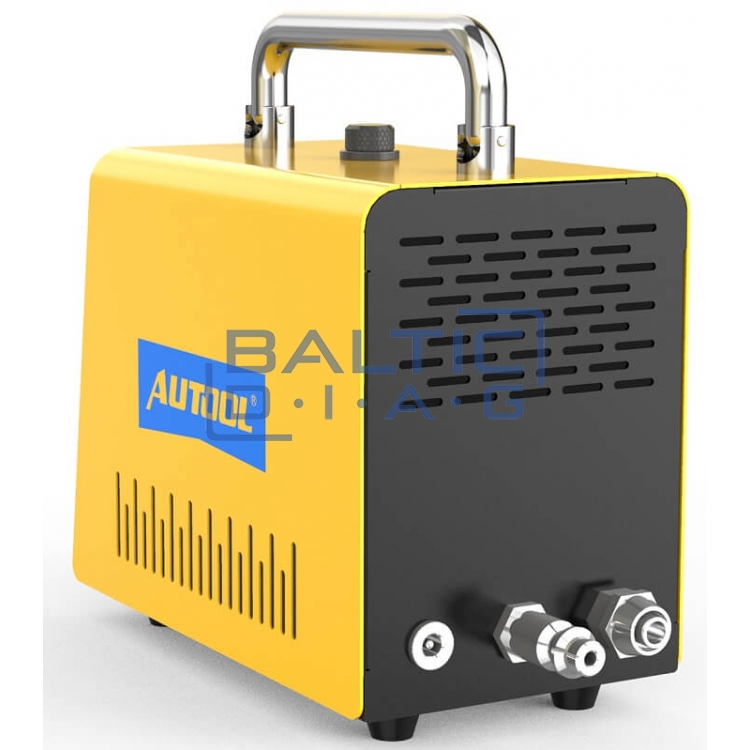

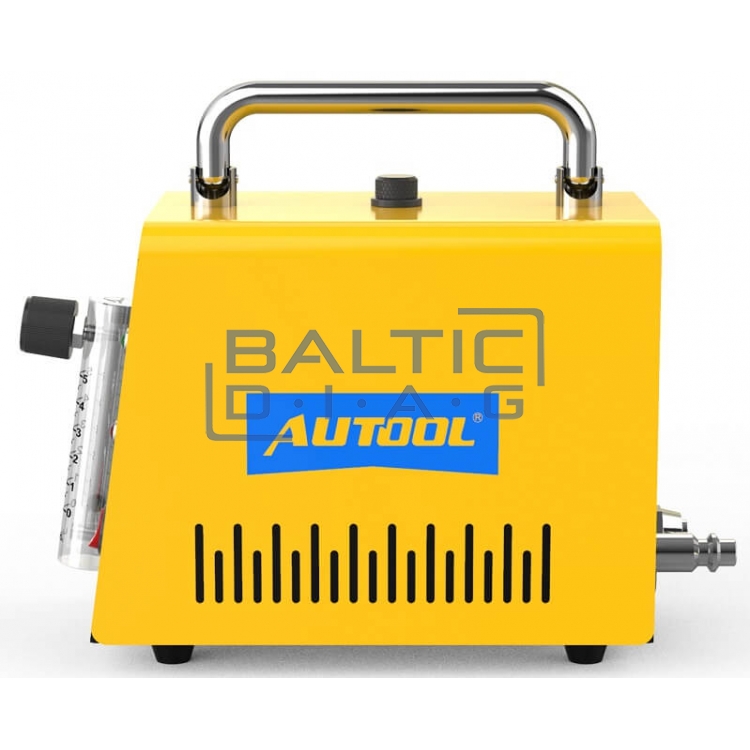

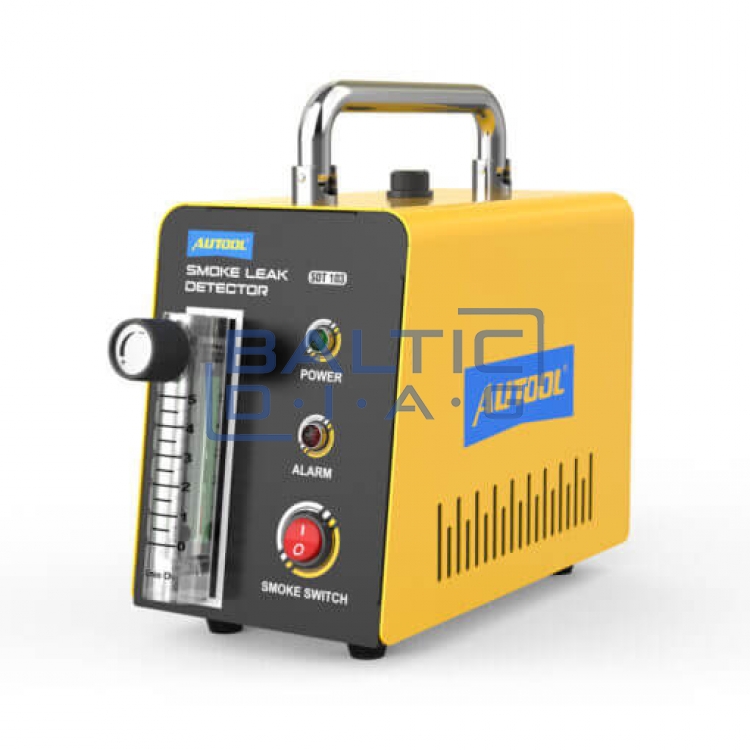

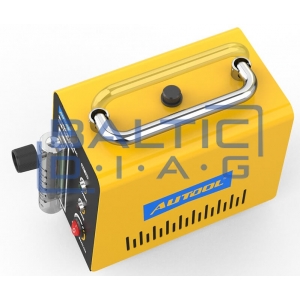

Autool SDT103 is professional equipment that allows you to identify various car malfunctions and system leaks. The device will allow you to accurately and quickly determine the location of the problem in such systems as: intake, exhaust, fuel and vapor recirculation systems, and the tightness of other systems.

Performing a leak test:

1. Add 20 ml of special liquid to the device.
2. Connect the device's smoke blowing nozzle to the system under test.
3. Connect the smoke generator to a 12 V power source, turn on the start button.
4. After about 30 seconds the system will be filled with smoke. At that time, try to look for leaky places through which smoke rushes.

Advantages of the smoke generator Autool SDT103:

• Very wide range of applications. You will be able to test not only various car systems, but also motorcycle, ATV, and boat systems.
• A powerful and easy-to-use device. Connect the compressed air hose and power supply wires to the unit to a 12V DC source and it will start working in 30 seconds. is ready to fulfill its purpose.
• Advanced technology to work with the Evaporative Emission (EVAP) system
• Protection against overheating and freezing. The generator has an intelligent protection that allows the device to work even up to a temperature of 75 °C. If the safe temperature limits are exceeded, the device is forced to shut down
• 3-year warranty
• The ability to adjust the intensity of the generated smoke output by turning one wheel.

Technical parameters:

• Required inlet air pressure: 0.03 bar / 3.2 kPa
• Outlet pressure: 0.03 bar / 3.2 kPa
• Supply voltage: 12 V / DC
• Device dimensions: 180 x 135 x 100 mm
• Device weight: 1.7 kg
• Package dimensions: 260 x 200 x 180 mm
• Package weight: 2.7 kg

The set includes:

• 1 x Autool SDT103 smoke generator
• 1 x black hand pump
• 1 x special EVAP system adapter
• 1 x standard, conical adapter
• 1 x power cords
• 1 x bottle for filling the test liquid
• 1 x smoke hose
• 1 x user manual
