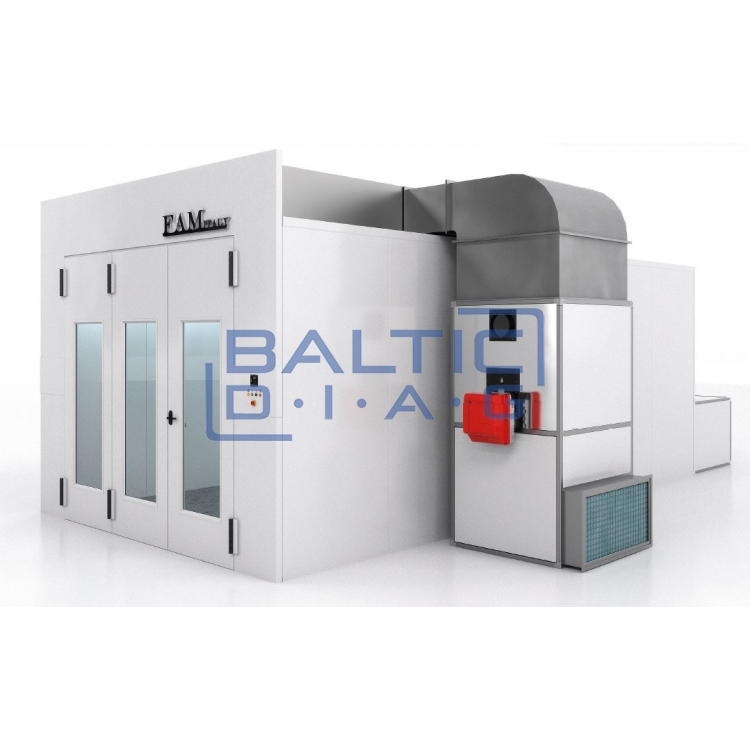

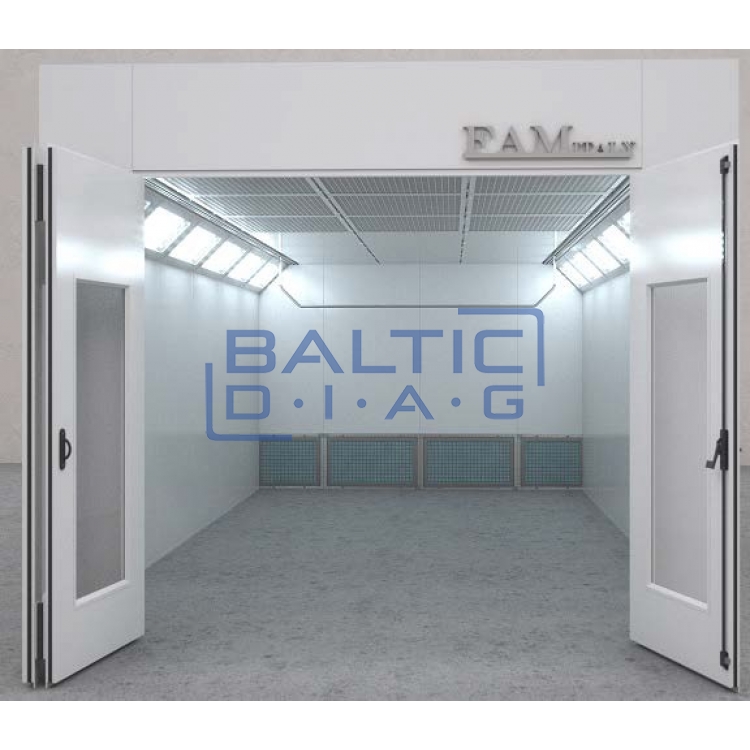

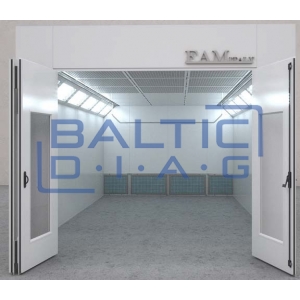

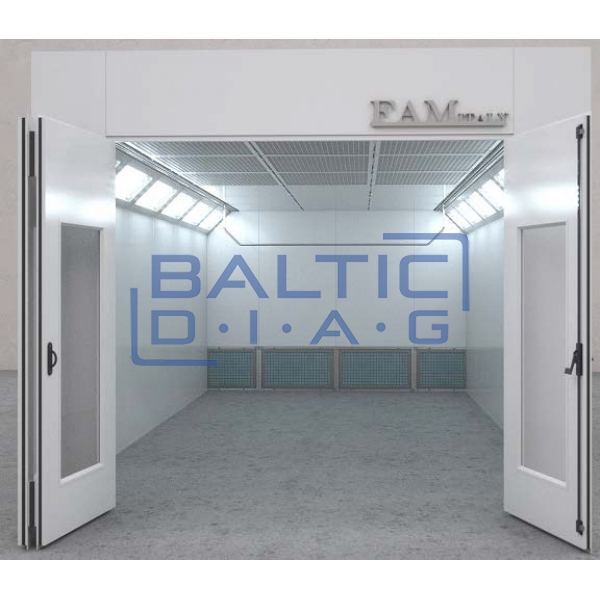

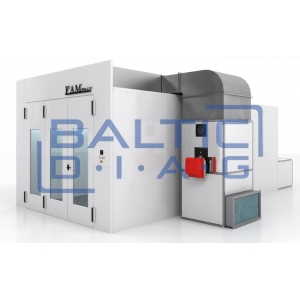

Painting chamber FAM IRON

Painting chamber FAM IRON

Features:

• Installed without additional floor equipment; air extraction through the rear wall.
• High-quality air circulation and filtration system.
• Efficient diesel heating unit with protective thermostats and pressure sensors.
• Customizable dimensions, parameters, and configurations based on individual requirements.

The provided description is a general specification of the standard booth. The equipment can be manufactured to meet specific dimensional, parameter, and configuration requirements. For a price offer tailored to your specific needs, please contact the provided details.

Technical Specifications:

• External Dimensions: 8580 x 4120 x 3400 mm (Length x Width x Height)
• Internal Dimensions: 7200 x 4000 x 2800 mm (Length x Width x Height)
• Main Doors: 3000 x 2750 x 60 mm (Width x Height x Thickness)
• Service Doors: 900 x 2100 x 60 mm (Width x Height x Thickness)
• Booth Walls: Polyurethane foam "sandwich" panels, 50 mm thick.
• Lighting: 12 fixtures (6+6), each with 30W fluorescent lamps (240V).
• Heating: Riello two-stage burner, power 210 kW (180,000 Kcal/h), with AISI 430 stainless steel heat exchanger.
• Exhaust Wall: 4000 x 800 mm (Length x Height).
• Power Supply: 400V, 3-phase, 50Hz.

• Air Intake Fan: 7.5 kW, 20,000 m³/h.
• Air Extraction Fan: 7.5 kW, 20,000 m³/h.
