Inverter electrode welding machine 200A

Inverter electrode welding machine 200A

Warranty: By registering your equipment at www.soldatech-welding.com, you can extend the warranty period up to 5 years.

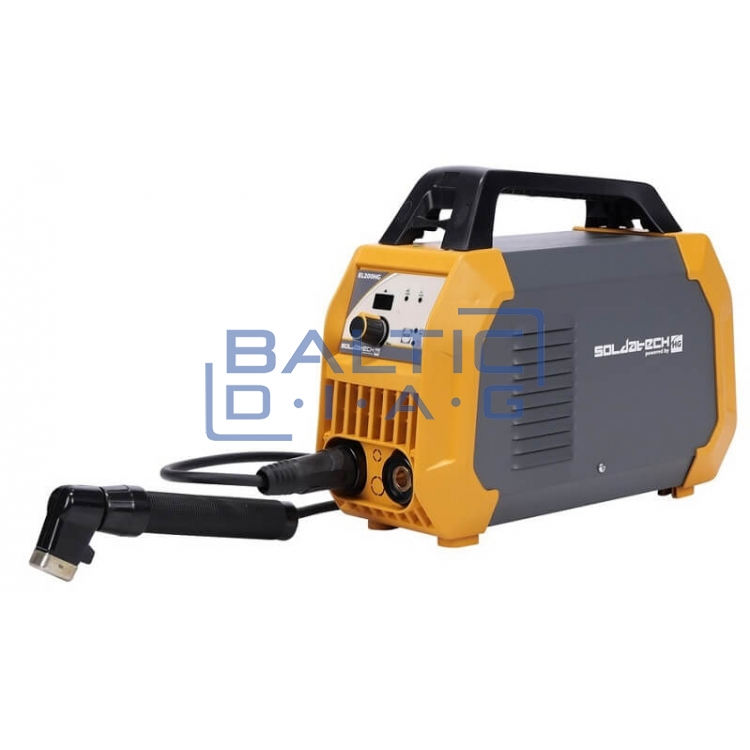

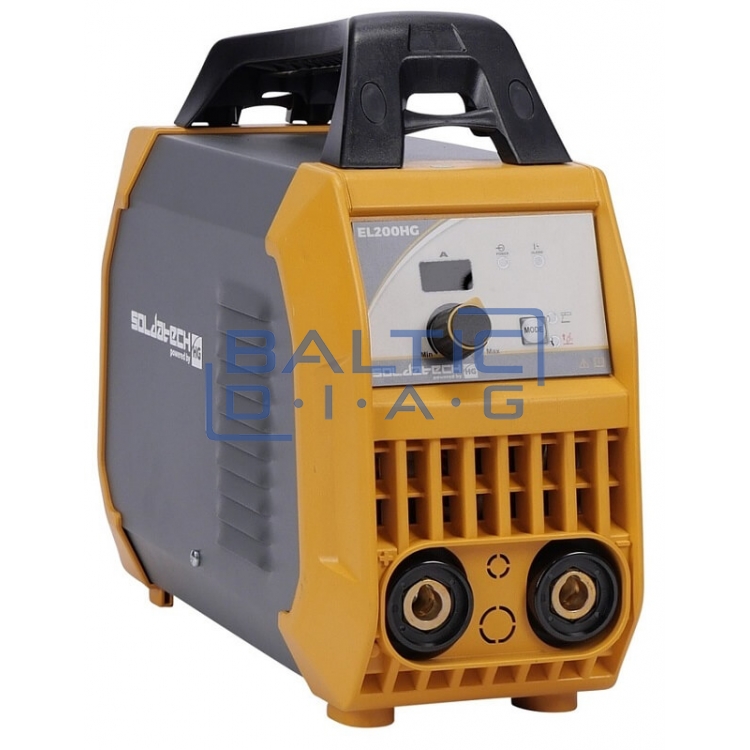

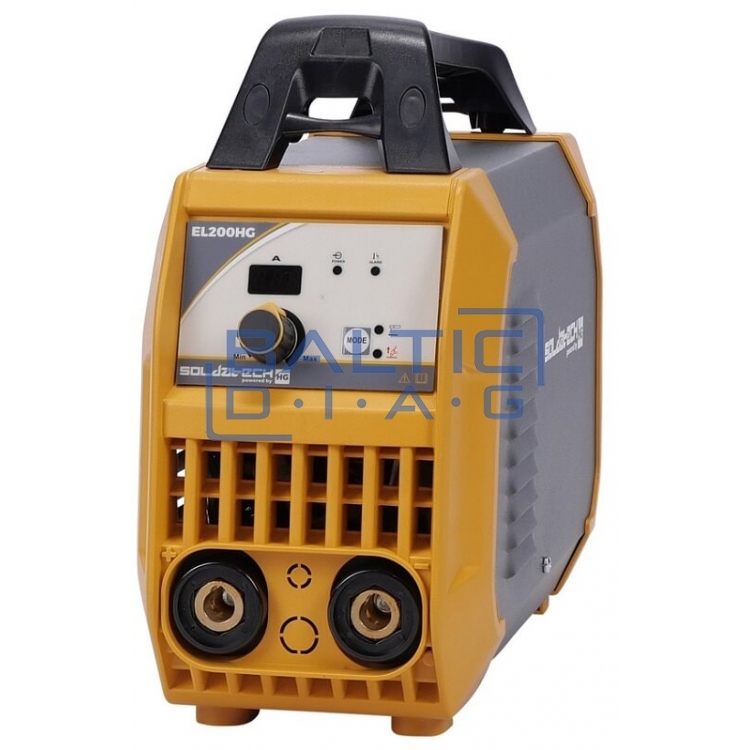

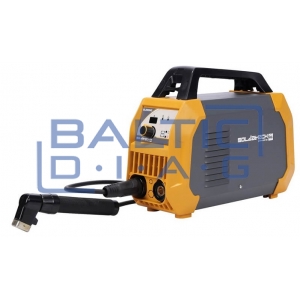

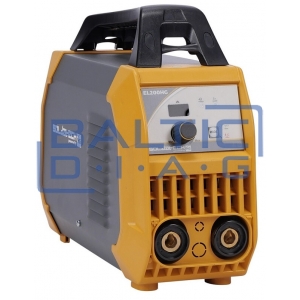

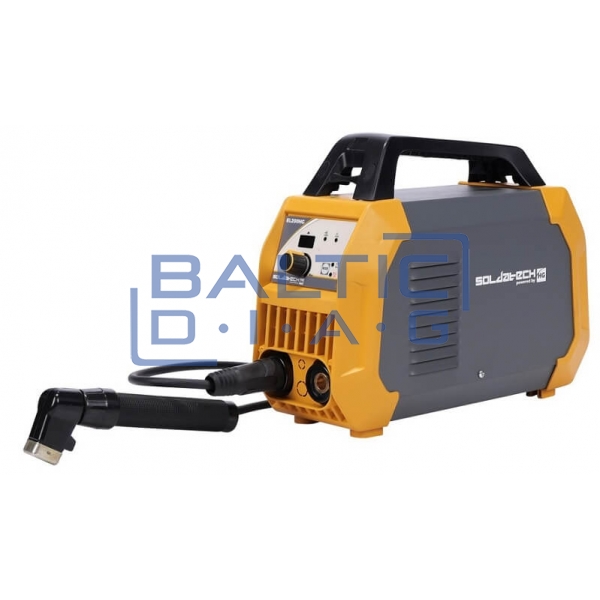

This Soldatechpowered electrode welding machine is very suitable for welding anywhere because it is compact, light, manageable and powerful. The easily adjustable welding current ensures that the EL200HG can be used quickly for welding work with different materials and thicknesses. The hot start/anti-stick feature rapidly increases the welding current to prevent the electrode from sticking to the workpiece. The device is also equipped with an ARC force function; thus determining the depth of the weld. Overload protection combined with a built-in fan prevents overheating and ensures high-quality welding performance for a long time. Ideal for welding carbon steel, low alloy steel and stainless steel. Boils well with rutile (E 6013) and basic (E 7018).

Standard equipment:

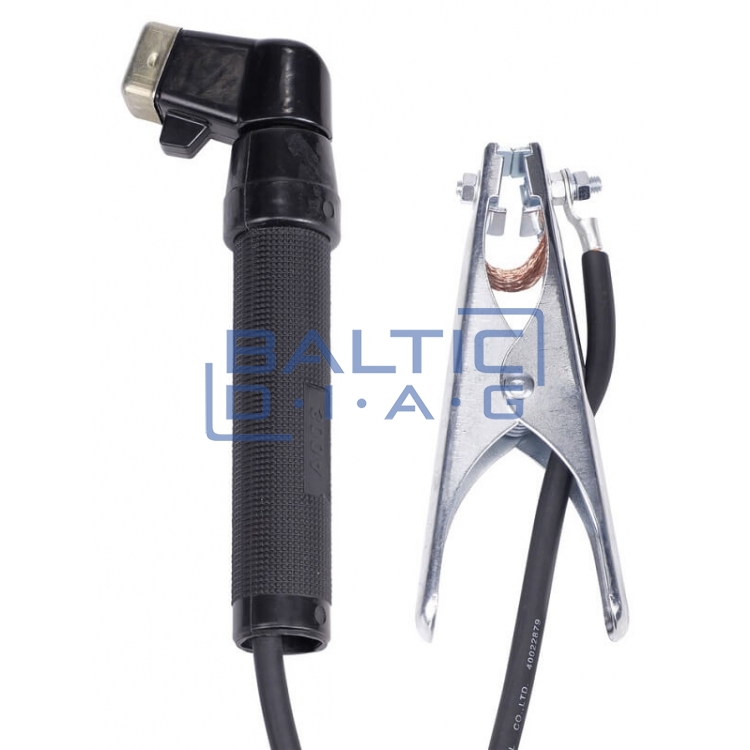

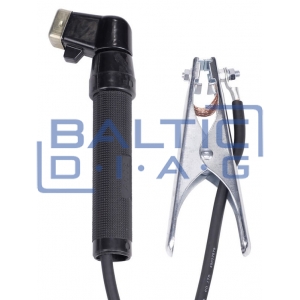

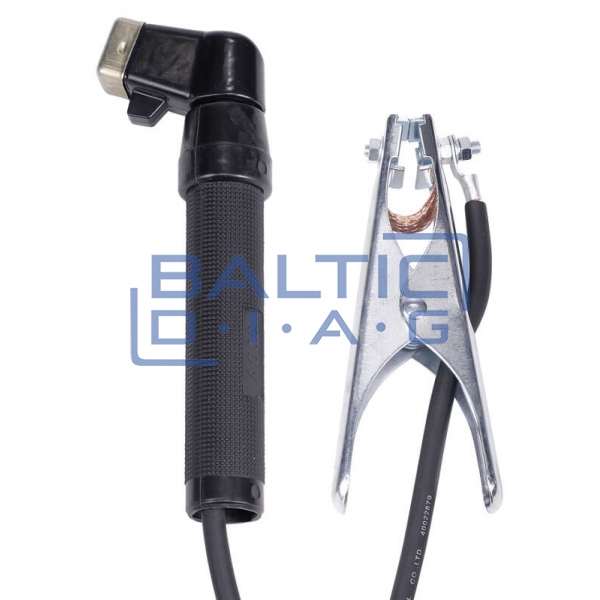

• Twistlock electrode torch with 3 m 16 mm² cable
• Welding ground terminal with 2m 16mm² cable
• Neoprene power supply with 2m 3x2.5mm² cable
• European Dinse connectors 13mm
• Sturdy storage case

Technical specifications:

• Voltage = 230V - 1 phase
• Frequency = 50/60 Hz
• Circuit breaker = 16A C-char
• Input power = 8.8 kVA
• No load voltage = 82 V
• Duty cycle (at 20°C ambient temperature) = 40% - 200 A
• Duty cycle (at 40°C ambient temperature) = 15% - 200 A
• Welding current range MMA = 41 - 200 A
• Raising the welding current range TIG = 15 - 200 A
• Welding electrodes = 1.6 - 4.0 mm
• Protection class = IP21S
• Dimensions = 400 x 154 x 300 mm
• Weight = 5.8 kg
