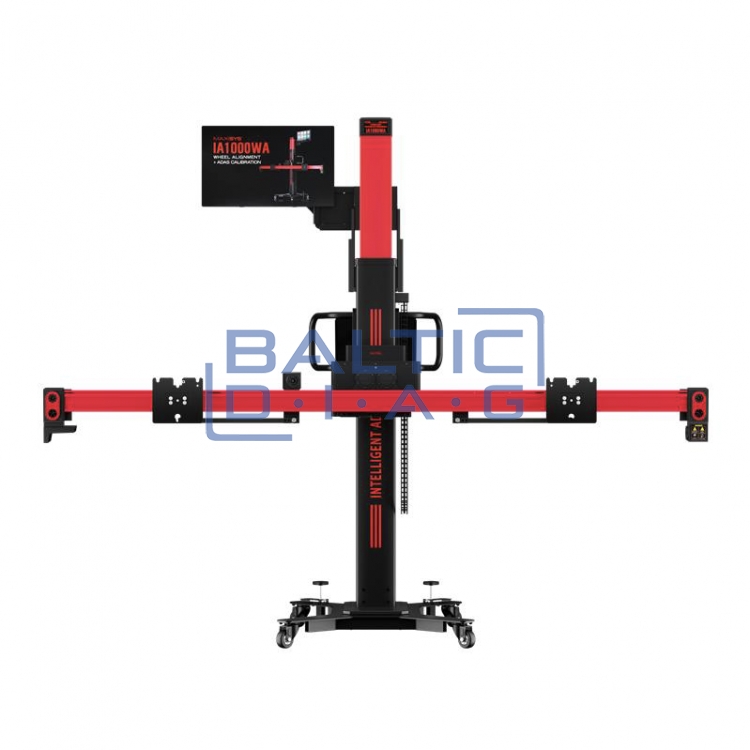

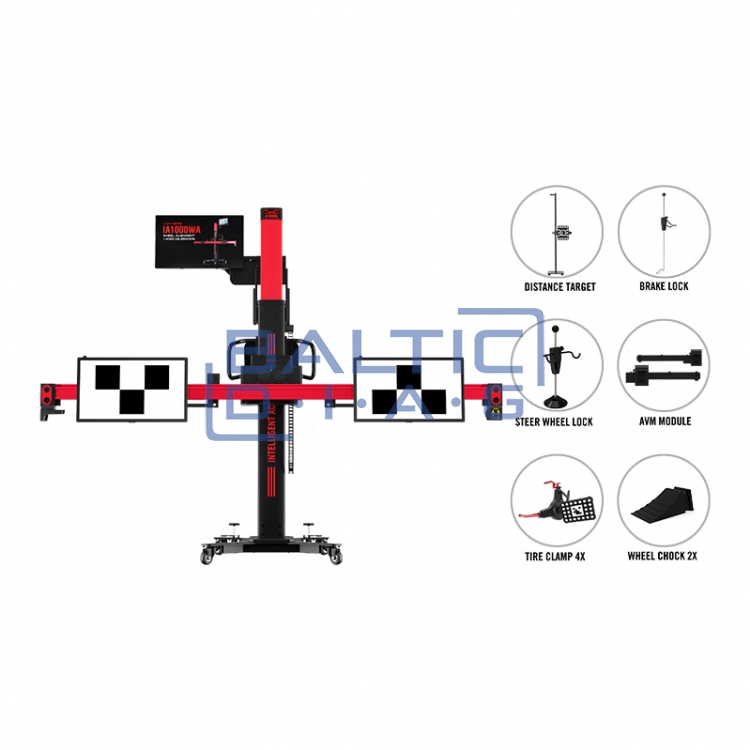

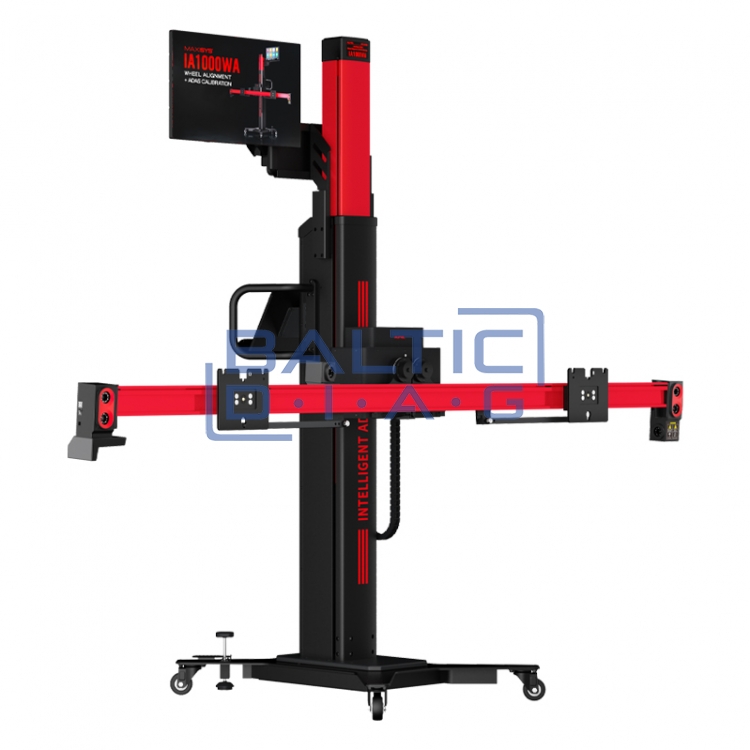

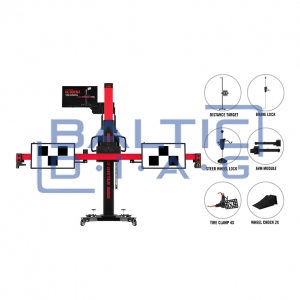

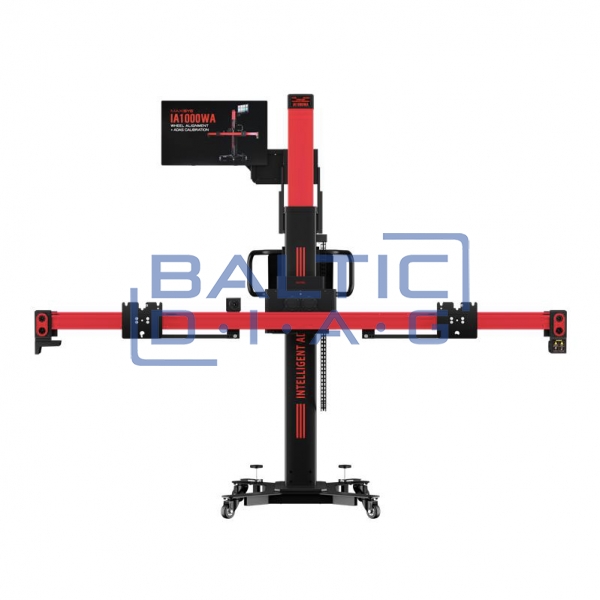

IA1000 Complete ADAS Calibration and Wheel Alignment System Kit with Digital Targets Autel

Manufacturer: AUTEL, warranty period – 24 months

The IA1000 is a next-generation automated ADAS calibration, wheel alignment, and advanced diagnostics system designed for professionals seeking a fast, accurate, and OEM-compliant solution. This fully automated platform enables precise calibrations and alignment checks, strictly following vehicle manufacturer specifications.

The IA1000 integrates robotic target positioning, digital control, voice command interface, and advanced 3D geometry measurement technology. This allows workshops to perform calibrations and alignments faster, more accurately, and more reliably than ever before. The system is ideally suited for both large and medium-sized workshops that prioritize efficiency and adherence to OE specifications.

Features:

• Robotic ADAS Calibration: Fully automated target positioning and adjustment (front-to-back, vertical/horizontal crossbar movement, pitch/roll/yaw angles).

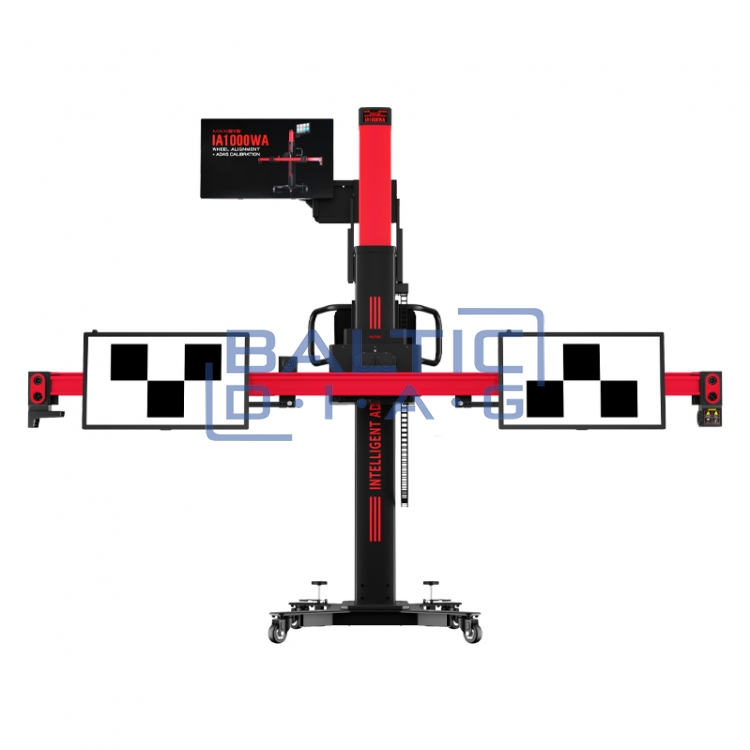

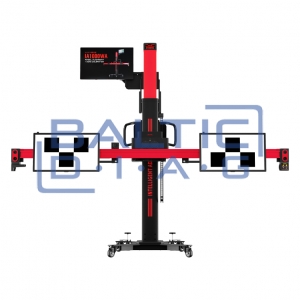

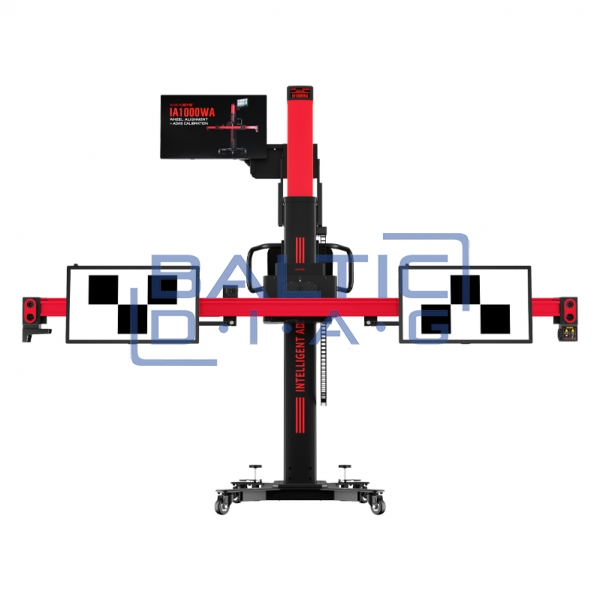

• Digital or Physical LDW Targets: Choice between physical targets or 27" digital screens with automatic brightness adjustment.
• Floor Irregularity Compensation: Automated analysis and compensation of uneven floors ensure successful calibration even on unlevel surfaces.
• Target Validation & Reporting: Comprehensive position verification with Pre/Post Scan documentation and insurance compliance.
• OEM-Approved Algorithms: Calibration procedures follow manufacturer OE specifications.
• Digital Go-No-Go Verification: Confirms target placement before calibration begins, preventing errors.
• 3D Geometry & Thrust Line Analysis: Precision four-wheel alignment using 6 HD cameras with ±0.02° accuracy.
• Color Visual Interface & Step-by-Step Instructions: Illustrated interface with live measurements, required tools, and color-coded status indicators.
• MAX Voice Assistant: Enables voice-based control, calibration, and task execution, powered by the MaxiSys Ultra S2 platform.
• Comprehensive Diagnostics: Advanced MaxiSYS Ultra S2 Topology 3.0 analysis – all-systems diagnostics with regular updates.
• Extensive Software Coverage: Covers U.S., Asian, and European vehicles, with scalable ADAS and alignment packages.
• Digital Guidance: Step-by-step workflow – from preparation and calibration to documentation.

Technical Specifications:

• Camera System: 6 HD positioning and tracking cameras
• Accuracy: ±0.02° alignment measurement accuracy
• Targets: LDW physical targets or 27" digital monitors
• Compatibility: Tesla, Toyota, and most U.S., Asian, and European vehicles
• Diagnostics Platform: MaxiSYS Ultra S2 + Topology 3.0
• Control: MAX voice command system
• Reports: Pre/Post Scan with target validation
• Floor Compensation: Automated floor analysis
• Calibration: OEM-spec compliant procedures

Frame Dimensions:

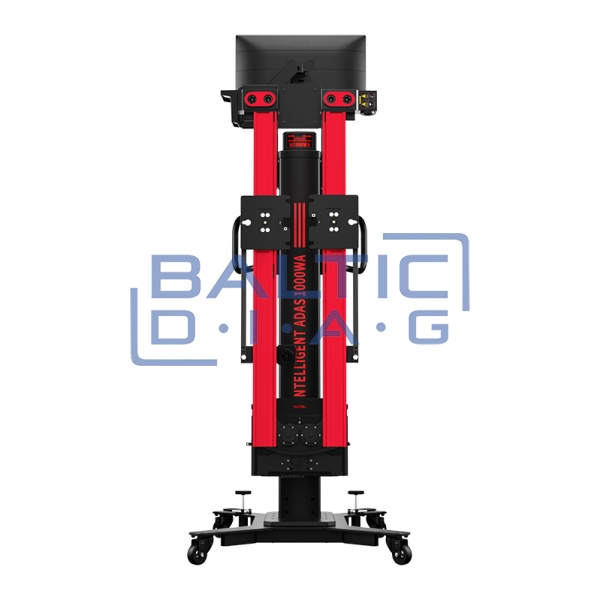

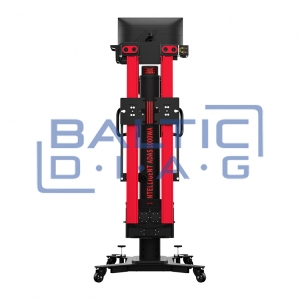

• Main Frame (folded dimensions): 100.0 × 79.0 × 188.5 cm
• Crossbeam Extended Length: 268.8 cm
• Main Frame Height Range: 188.5 – 257.9 cm
• Crossbeam Height Range: 144.0 – 255.4 cm
• Main Frame Total Weight: 164.0 kg
• Shipping Weight: 270.0 kg
• Operating Temperature: -10 to +50 °C
• Storage Temperature: -20 to +60 °C
• Power Supply: 100–264 V, 50/60 Hz
