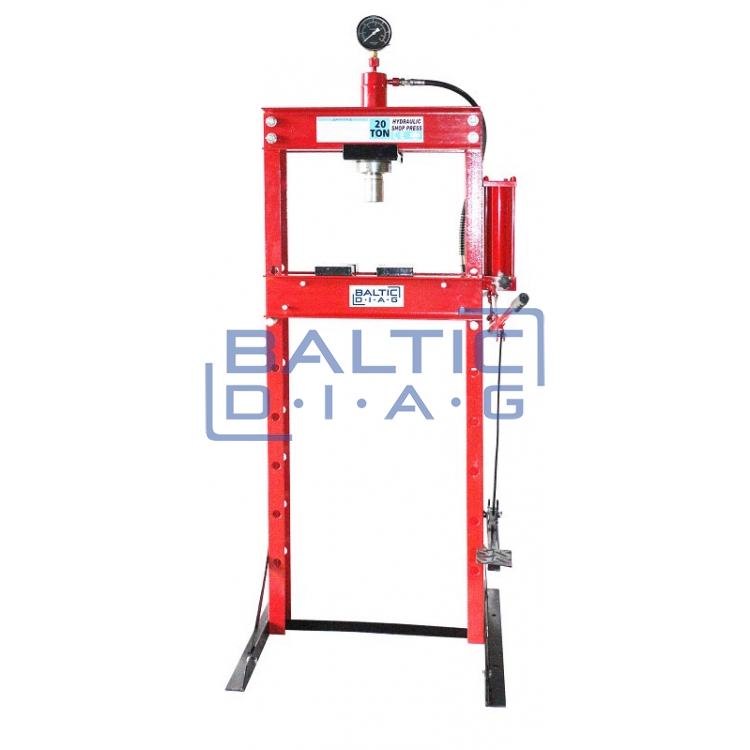

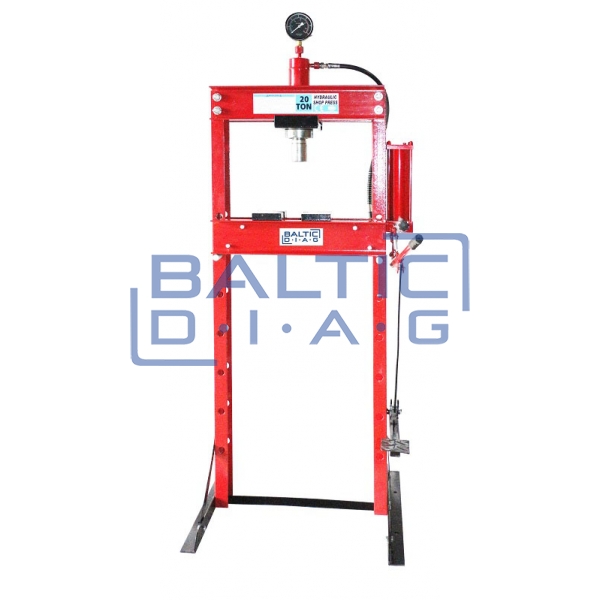

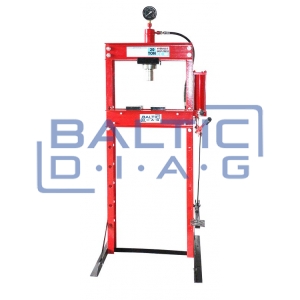

Hydraulic press 20 tons with foot pedal

Hydraulic press 20 tons with foot pedal

This hydraulic press ensures high quality and reliability. It doesn't matter if you use this lift for your own needs or in factories with a large volume of work. This type of press is perfect for pressing, extruding, removing and installing various components and countless other operations. The press uses hydraulic oil for its operation, which is supplied to the cylinder, and it uses a piston to press the material placed between the piston and the table. This pressure force can be adjusted according to specific tasks and needs. The press uses a double pump for its operations, which can be controlled by a foot pedal. One of the most important features of a hydraulic press is its ability to apply uniform pressure across the entire surface of the material being pressed, ensuring accuracy and consistency. In addition, they provide very high pressure power with relatively low energy consumption, making them very efficient and cost-effective devices for industrial applications.

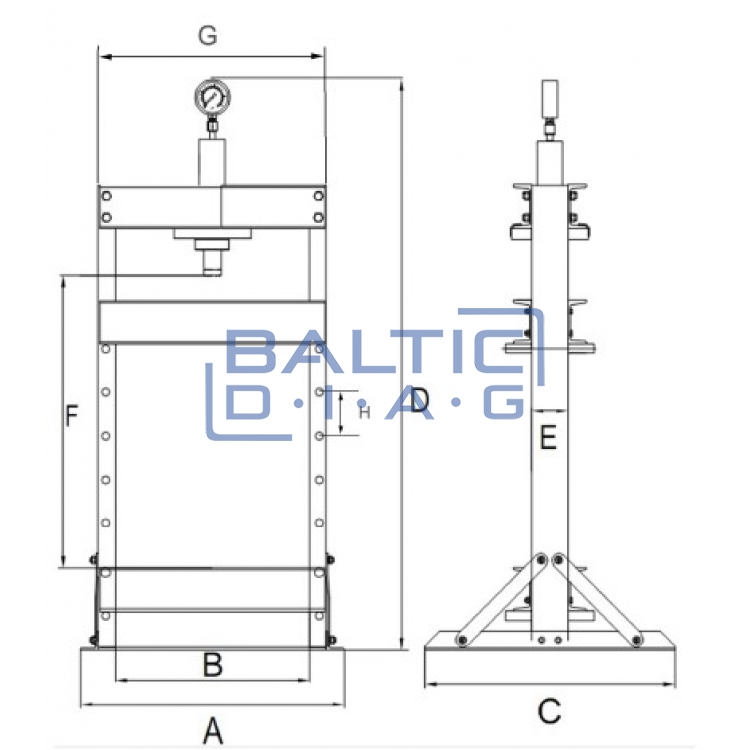

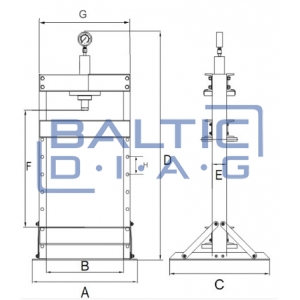

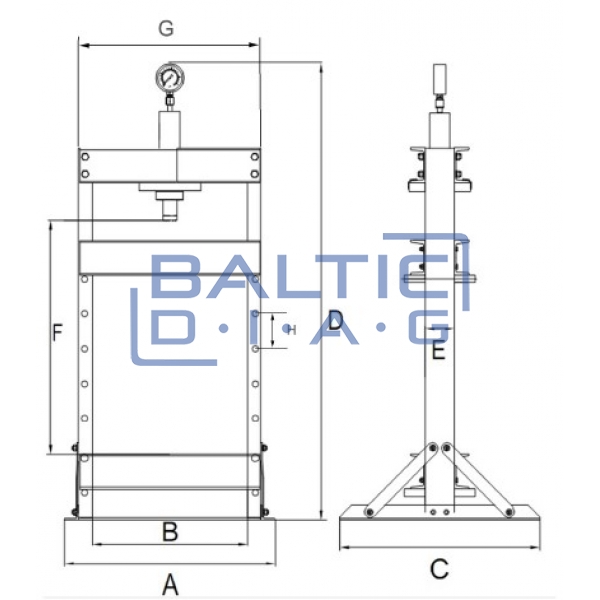

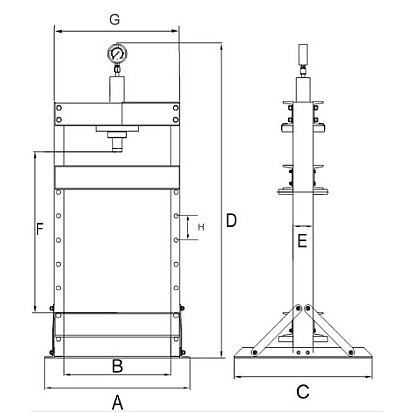

Technical parameters:

• Control: foot + manual
• Maximum power: 20 tons
• Cylinder stroke: 145 mm
• Height (D): 1800 mm
• Working range (F): 0 - 1100 mm
• Frame width (G): 600 mm
• Free space between columns (B): 500 mm
• Base width (A): 700 mm
• Base length (C): 705 mm
• Column thickness (E): 100 mm
• Workbench hole pitch (H): 145 mm
• Weight: 87 kg

Be sure to loosen the hydraulic pump air venting screw before using the press!
