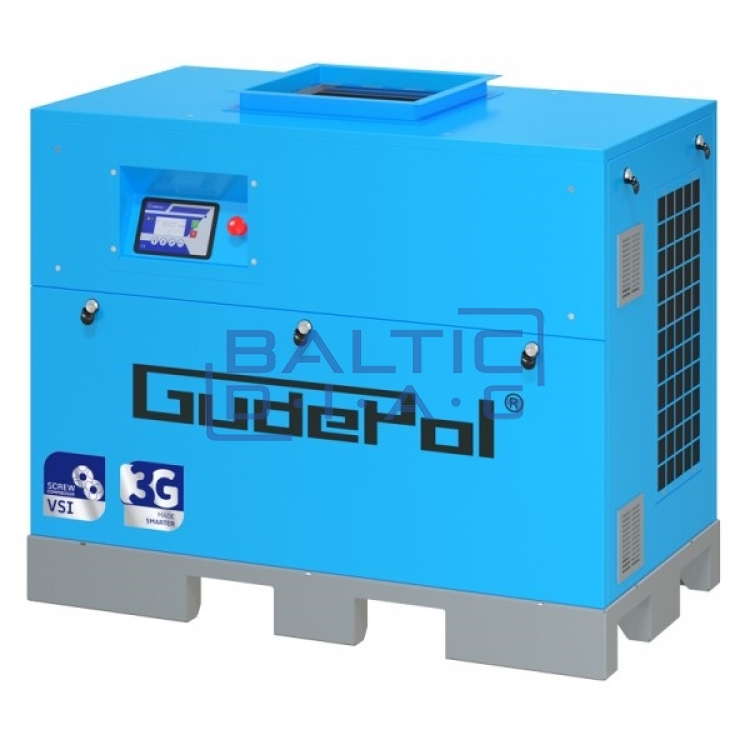

Gudepol screw compressor 6200l/min 8bar 37kW

Gudepol screw compressor 6200l/min 8bar 37kW

Country of origin: Gudepol, Poland. Warranty: 5 years

GUDEPOL VSI-3G compressors (3rd generation) are a new approach to the development of easy-to-operate screw compressors. The modular, frameless supercharger design allowed for better component placement, so the individual component cooling system was refined to maintain the highest degree of reliability and efficiency. The compressor unit was built on a new power transmission platform, which significantly reduces the level of vibration and increases the work performance of the compressor. The screw compressor VSI-3G can be equipped with many accessories such as: frequency converter, heat exchanger or remote control by connecting to GUDEPOL Cloud.

Advantages:

The Arrow L26S control panel features an alphanumeric LCD display,

Indicators Messages about the operation of the compressor are transmitted in 8 languages ​​(Polish, English, German, French, Italian, Spanish, Turkish, Portuguese),

The integrated clock with hands allows you to set 3 work schedules for one day a week,

The Arrowsport 485 (MODBUS RTU) allows the compressor to be connected to a network of monitored devices or the Gudepol Internet Cloud,

Index automatic start of the compressor in the event of a power failure in the mains,

Arrows ability to connect a compressor to the L26S in a cascade (master / slave / multi-compressor).

Reliable drive mechanism that ensures stable operation of the compressor. The compressor maintains peak performance throughout the maintenance interval. The electric motor meets all European quality standards, its indisputable features are as follows:

excellent reliability,

quiet operation, no vibration,

check the environmentally friendly production technology

Modern automation, based on the highest quality components, protects the compressor from:

check the mains voltage,

power phase loss,

to check the incorrect direction of rotation of the motor,

electric motor or radiator fan load,

check the oil temperature is too high,

check the oil temperature is too low,

check if the non-starting bolt module starts,

After installing an electronic pressure transducer, the operating pressure can be accurately selected on the control panel.

A highly efficient, dual-function cooler that ensures optimal working conditions in the most difficult compressor operating conditions. This allows low air temperature to be reached in the pneumatic network. It has a fan controlled by a control panel depending on the compressor load. High temperature hydraulic hoses are used to connect the cooler to the module.

SMART-3G series screw compressors are the most popular line of GudePol screw compressors. The 3G version is a completely new design, which aims to increase the performance and obtain better parameters of the screw compressor. To achieve the intended goal, GudePol engineers developed a modern frameless housing, which allowed to reduce the level of vibrations and air flow inside the screw compressor. The cooling system has also been redesigned, increasing its efficiency compared to the previous generation, ensuring the best performance of the compressor in the toughest conditions. SMART-3G compressor automation has comprehensive device protection against electrical system malfunctions. A wide range of upgrades: including a galvanized tank, a frequency converter - this is the whole spectrum of personalizing the compressor according to the customer's needs.

Why are SMART 3G compressors so special?

Significantly reduced electricity consumption

The compact design of the compressor provides excellent application possibilities

5-year warranty - the highest quality materials are used

A microprocessor panel that provides a complete view of compressor performance

The compressor is designed for self-start, which means it is ready to go without additional maintenance costs

Simplified operation - easy replacement of consumables

Possibility to use the thermal efficiency of the compressor

Devices checked during production

Technical parameters:

Version: 3G

Productivity: 372 m3/hour

Performance: 6200 l/min

Max. pressure: 8 bar

Engine power: 37 kW

Power supply: 400 V

Noise level: 70 dB

Connection: 1-1/4"

Dimensions: 137 x 98 x 124 cm

Weight: 851 kg
