Endoscope for smartphones Autool SVB302

Endoscope for smartphones Autool SVB302

Manufacturer: Autool

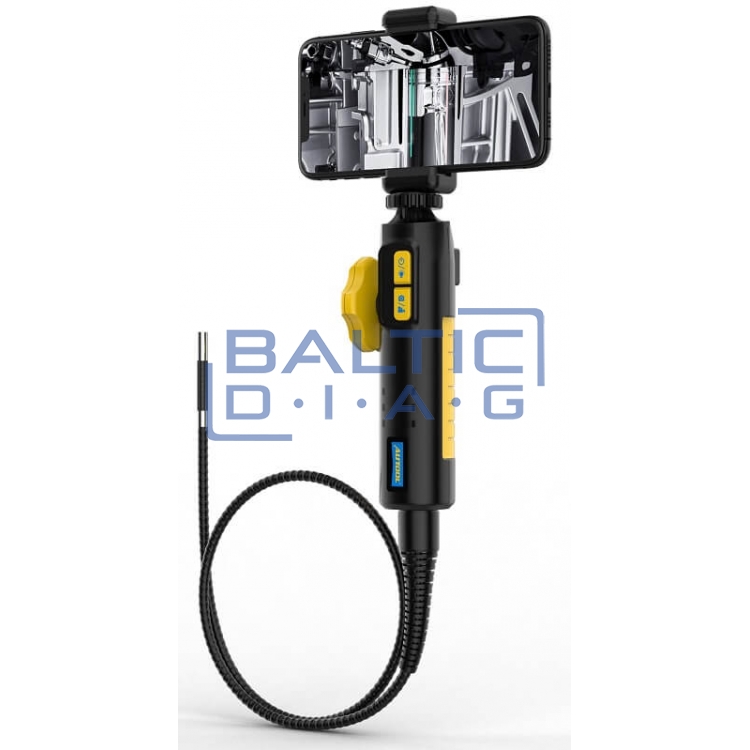

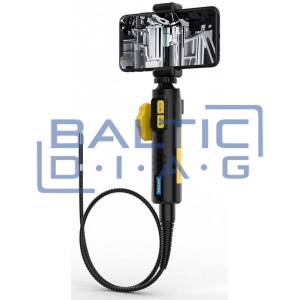

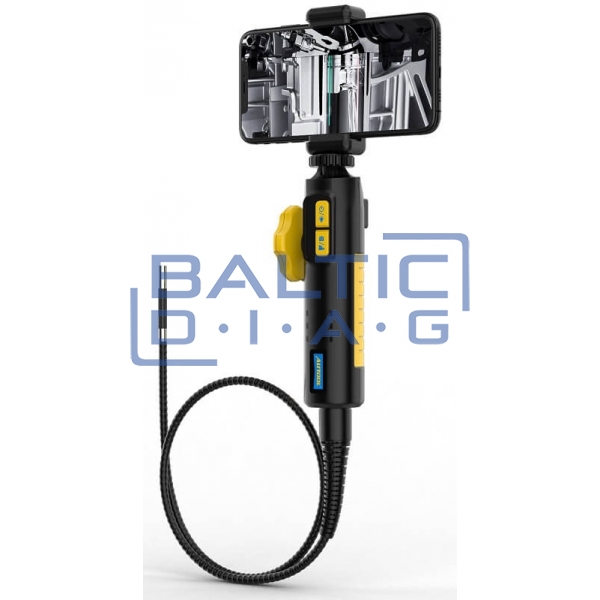

Autool SVB302 is one of the latest endoscopes introduced by the Autool manufacturer. It is specially designed to help detect various faults in extremely narrow areas such as the combustion chamber of an internal combustion engine, narrow three-way pipes, exhaust systems, etc.

This device has integrated probe tilt control and a unique high temperature warning function. Also, the narrow probe allows you to get into hard-to-reach, narrow spaces, and then deliver bright, clear, and omnidirectional video, and you'll be able to take sharp photos that will allow you to closely view the surface or cavity being inspected.

Features:

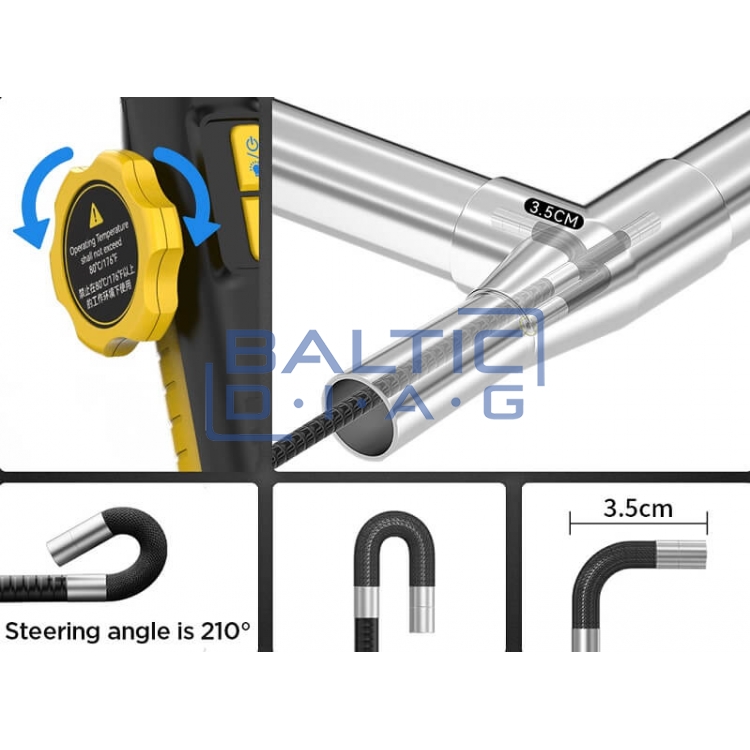

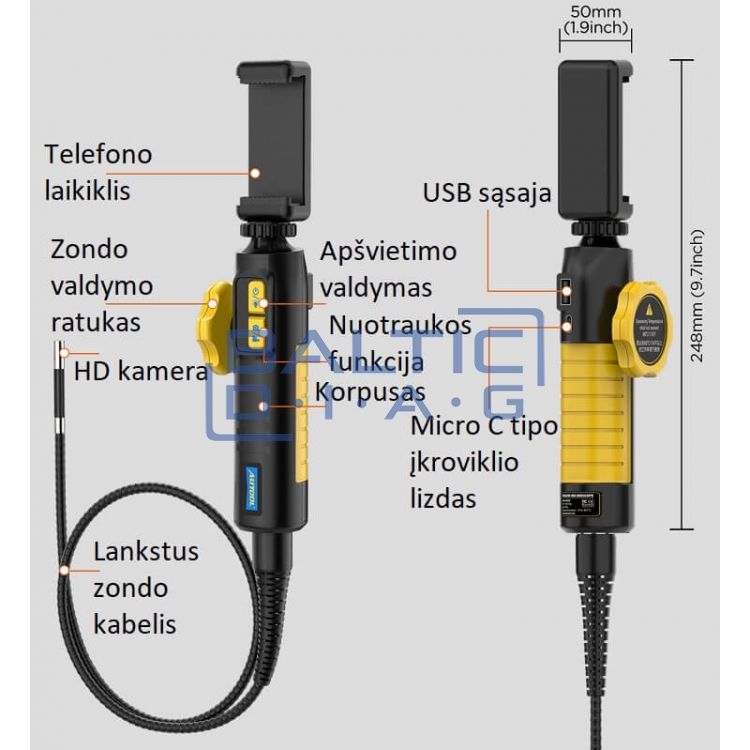

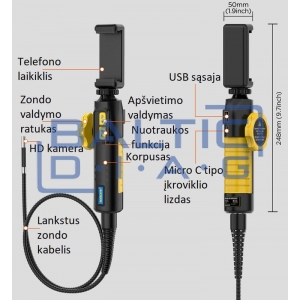

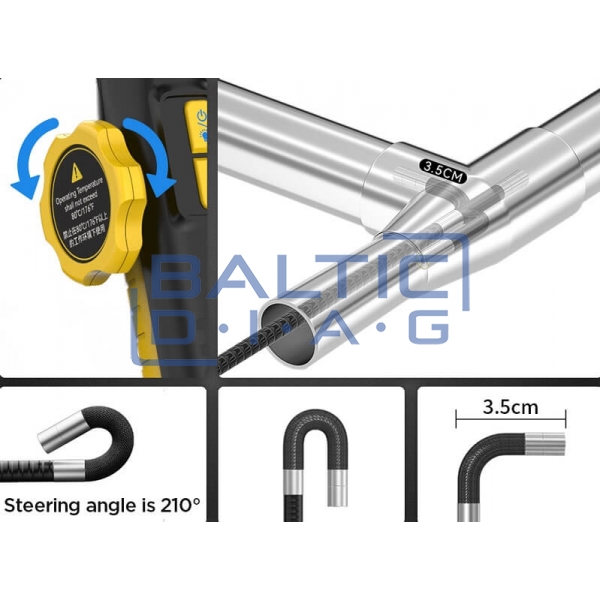

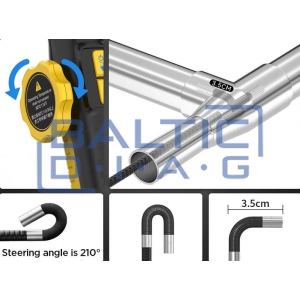

• Two-way rotatable probe head. Turn the control wheel and the fine tip of the probe can bend into hard-to-reach places that a conventional endoscope can hardly reach.
• One button option to take photos or video. High 1080P HD camera, can get into hard-to-reach places. And when you get to these places, you can clearly and vividly convey the entire filmed image.
• Probe lighting control. The probe is equipped with 6, high-intensity LED lamps, which have 3 levels of adjustable brightness. Such methods allow you to perform a visual inspection by applying different lighting levels.
• Li-Io battery pack. New, integrated 3000 mAh rechargeable battery that ensures continuous work up to 2-3 hours.
• Photo and video quality. Supports the JPEG format of photos and the MPEG-4 video format.
• Choice of device management languages. The device supports various languages such as: English, French, German, Italian, Spanish, Russian, Chinese, Japanese, etc.
• Security class. The device has an IP67 protection class, which provides protection against water. With this feature, your endoscope has the ability to work in moist, wet cavities.
• Wide range of applicability of the device. It can be widely used in auto repair industry, mechanical repair work, etc.
• Supports interface with various smartphone operating systems. Supported systems such as: Android, Apple IOs, IPADS and laptops

Technical parameters:

• Probe/camera diameter: 6.35mm
• Resolution: 1920 x 1080P
• Image depth: 20 - 100 mm
• Viewing angle: 70 °
• Video illumination: 3 levels of illumination adjustment
• USB input: USB 2.0
• Power supply: 5V DC
• Probe lighting element: LEDs
• Water protection: IP67
• Probe material: flexible metal
• Probe length: 1000 mm
• Probe Tilt Control: Bidirectional
• Angle of inclination of the probe: 210 °
• Bending radius: 35 mm
• Working ambient temperature: -10 - +80 °C
• Working ambient humidity: 15 - 90%
• Protections: high temperature protection, intelligent protection, automatic shutdown

The endoscope set consists of:

• 1 x USB endoscope
• 1 x user manual
• 1 x USB port
• 1 x equipment Case
