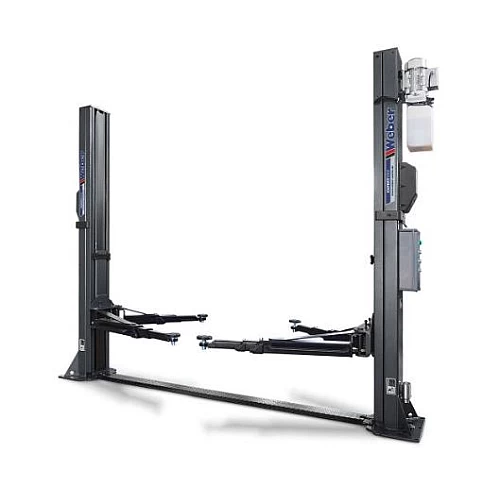

Electrohydraulic two-column lift Weber Expert SJC-10XL

Manufacturer: Weber (Germany);

Description:

Fully automatic lifting and lowering at the touch of a button

Short paws are double telescopic for efficient application with both short and long cars

Protective rubbers on both columns

Curtains to protect the inside of the column from contamination

Asymmetrical paws for more comfortable door opening angles

Three-stage lifting paws ensure the ability to lift both short and long vehicles

Lifting pallets with height adjustment

Supplied with 4 pcs. 100 mm extension kit

Low maintenance and therefore faster to pay off

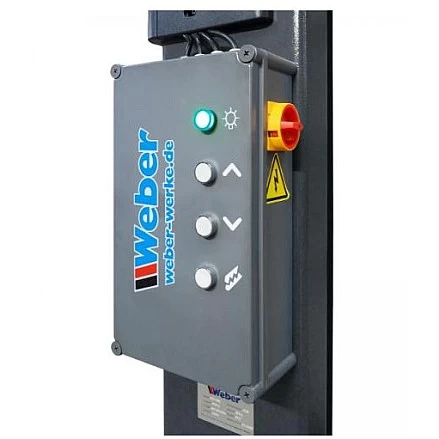

Easy operation thanks to 24V safety button

Perfect for lifting both cars and minibuses

Automatic conical paw lock mechanism, manual unlocking possible

Lifting cylinders in both columns, cylinder sealing performed in the cylinder itself

Multiple safety devices, overload valve, hose break protection and mechanical protection

Electromagnetic locking

Lifting capacity up to 4.5 tons, structure successfully tested with 115% dynamic load and 150% static load

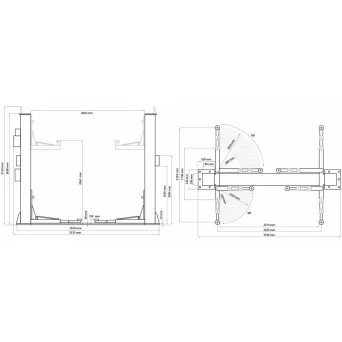

Technical parameters:

Lifting capacity: 4500 kg

Max. lifting height: 2060 mm

Min. height: 105 mm

Crossing height: 30 mm

Column height: 2850 mm

Spacing between columns: 2860 mm

Passage: 2570 mm

Overall width: 3755 mm

Length of long paws: 900 - 1830 mm, three steps

Length of short paws: 620 - 1235 mm

Min. required ceiling height: 3150 mm

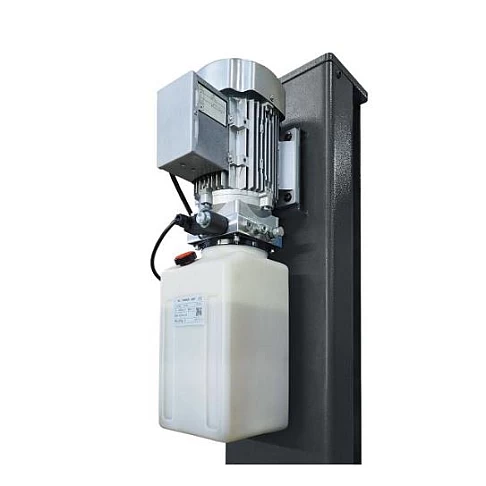

Engine power: 2.2 kW

Lifting time: 50 s

Weight: 660 kg

Power supply: 400V / 3Ph / 50Hz
