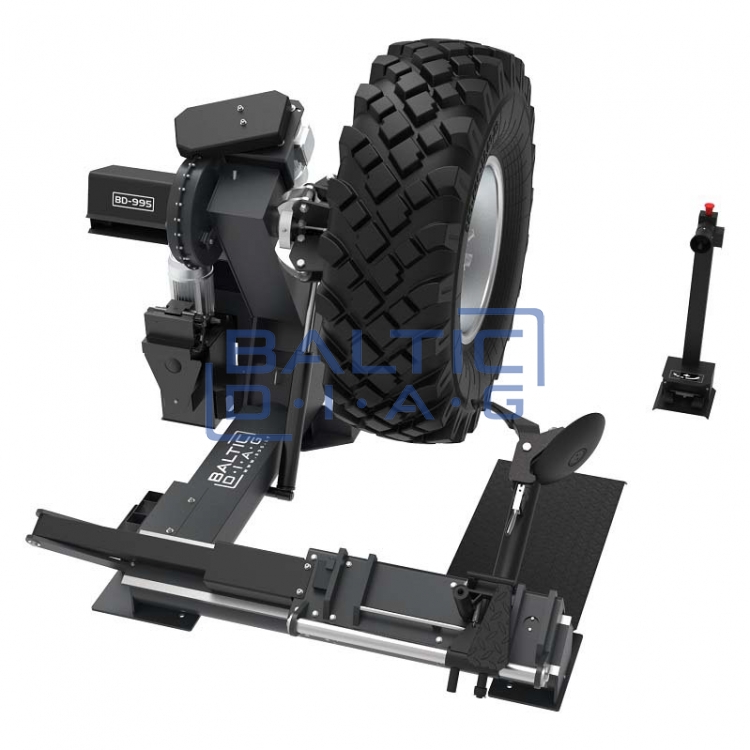

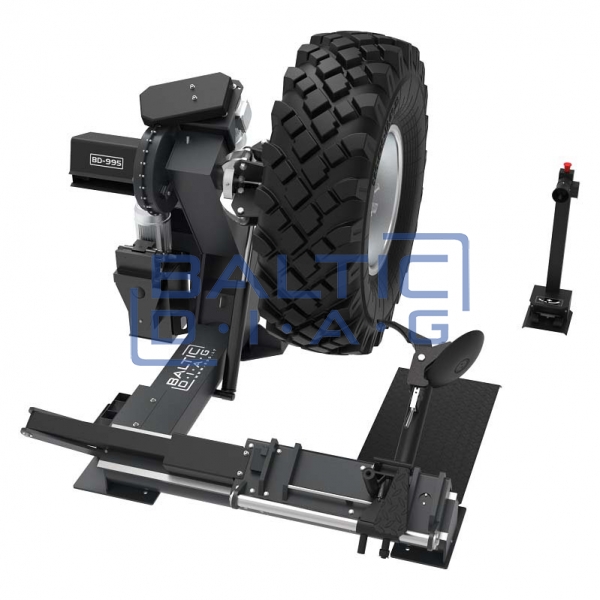

Electro-hydraulic truck tire changer BD-995

Electro-Hydraulic Truck Tire Mounting Machine BD-995

Features:

• Self-centering tire clamps – the hydraulic system ensures secure rim fixation.
• Mounting head – automatic, equipped with sliding bearings resistant to heavy loads.
• Worm gear drive – made of bronze, offering high wear and corrosion resistance for long-lasting performance.
• Expandable clamps – provide secure fixation for various rim styles.
• Automatic working arm – moves both horizontally and vertically.
• Mobile control panel – compact and easy to use in various working conditions.

Technical Specifications:

• Clamping rim diameter: 14" – 56"
• Maximum wheel diameter: 2300 mm
• Maximum wheel width: 1065 mm
• Maximum wheel weight: 1500 kg
• Bead breaking force: 2700 kg (27000 N)
• Operating hydraulic pressure: 130 bar
• Motor power: 1.5 kW
• Power supply: 380 V / 50 Hz / 3-phase

Standard Accessories:

• Tire mounting paste bucket x 1 unit
• Tire mounting paste brush x 1 unit
• Steel rim clamp x 1 unit
• Clamp extensions x 4 units
• Truck tire mounting lever x 1 unit
• Tire mounting lever x 1 unit
