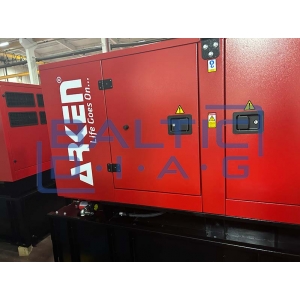

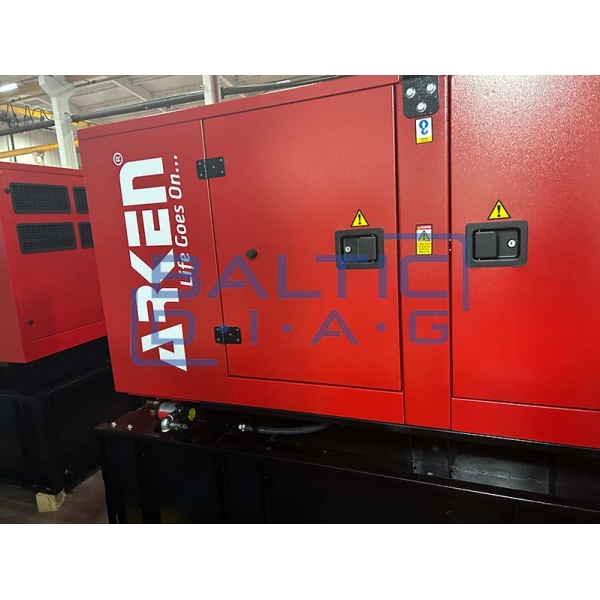

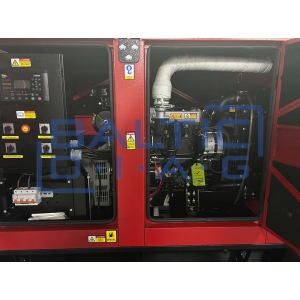

Diesel generator Arken ARK-Q22 N5, 16 kW

Diesel generator Arken ARK-Q22 N5, 16 kW

Manufacturer: Arken, Turkey. Warranty: 1 year or 1000 working hours.

Arken is a company founded in 2012 with the motto "Life goes on". "Arken" generators have the ability to manufacture the required diesel generator according to individual needs, with power from 2 kVA to 2750 kVA. These generators are manufactured in an area of 14000 m2 in Arnavutköy and can offer the best generator solutions according to customer or project requirements. In addition to its central factory, Arken has a very wide, global network, where it realizes its production generators and other energy solutions.

Technical parameters:

• Generated instantaneous electrical energy (Stand-by): 22 kVA / 17.6 kW
• Permanent electrical energy is generated (Prime power): 20 kVA / 16 kW
• Electrical voltage produced: 400 V / 230 V AC
• Power factor: Cos φ 0.8

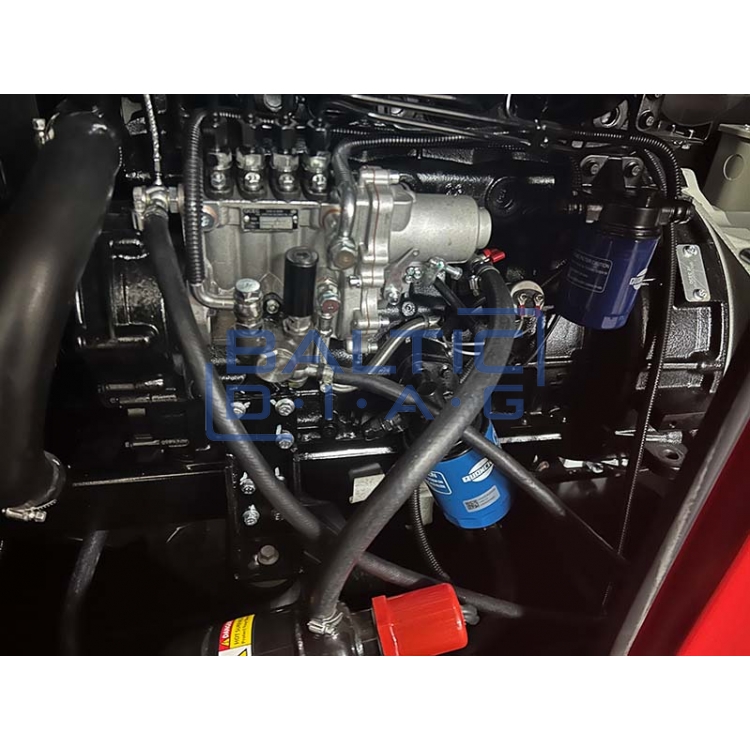

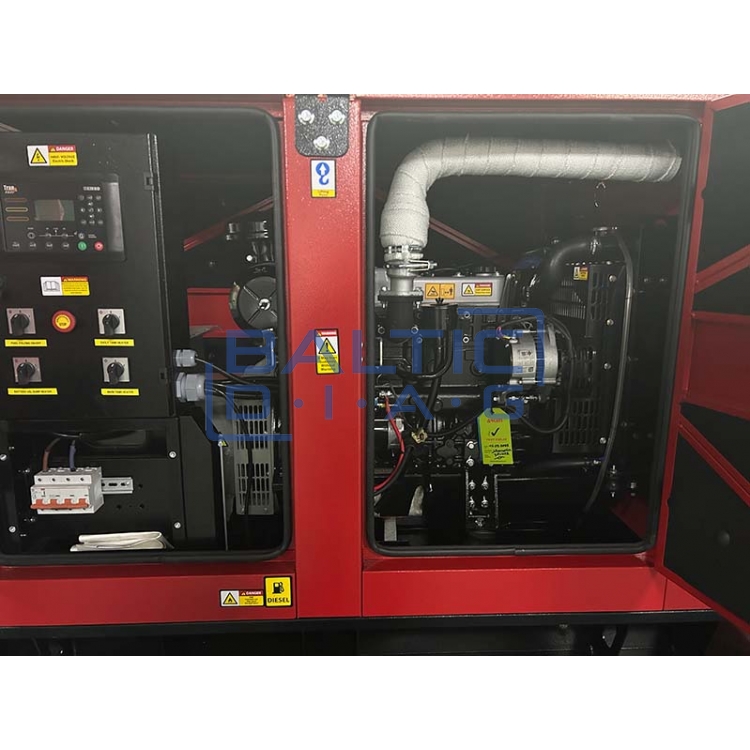

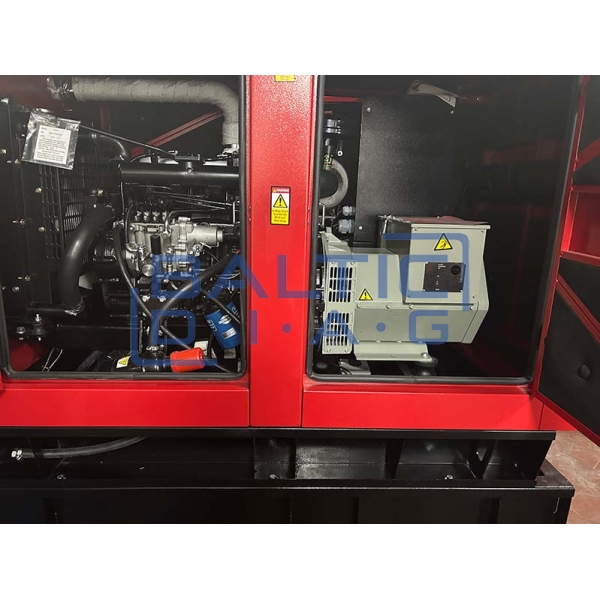

Diesel engine parameters:

• Manufacturer: Quanchai
• Engine power: 15.5 kW
• Engine Model: N485D
• Number of cylinders: 4 cylinders
• Number of valves: 8 valves
• Number of engine strokes: 4 strokes
• Engine speed: 1500 rpm
• Working volume: 2156 cm3
• Air intake system: atmospheric
• Cylinder bore x stroke: 85 x 95 mm
• Compression ratio: 18:1
• Cooling: liquid
• Coolant system capacity: 18.1 l
• Generator control: electronic
• Electrical control system: 12 V DC
• Oil capacity: 6.5 l
• Starter power: 3.7 kW
• Battery pack: 1 x 60 Ah
• Fuel consumption with (110%) load: 4.94 l/h
• Fuel consumption with (100%) load: 4.3 l/h
• Fuel consumption with (75%) load: 3.13 l/h
• Fuel consumption with (50%) load: 2.3 l/h

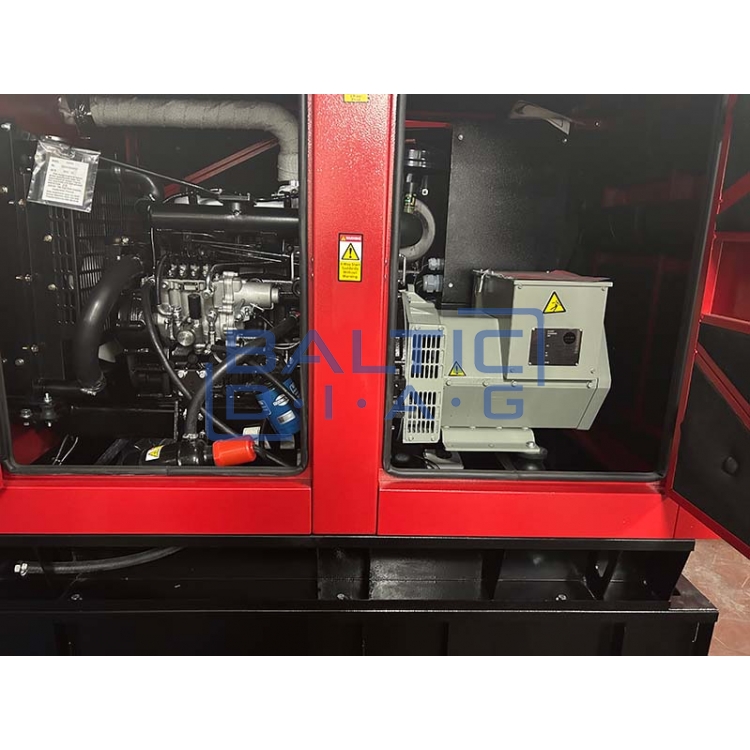

Alternator:

• Alternator manufacturer: Nekra
• Alternator model: ARK 184E
• Voltage: 400 V / 230 V
• Frequency: 50 Hz
• Number of phases: 3 phases
• Number of poles: 4 poles
• Connection type: star
• Bearings: single
• Insulation class: H
• Protection class: IP23
• Control System: self excited
• Voltage regulation: Electronic AVR
• Voltage regulation ranges: +-1%
• THD: < 5%

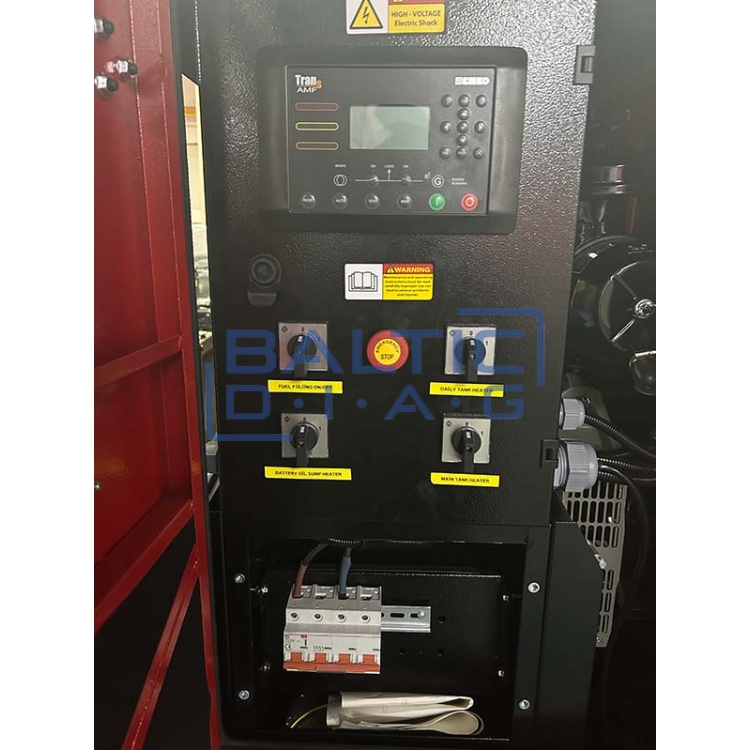

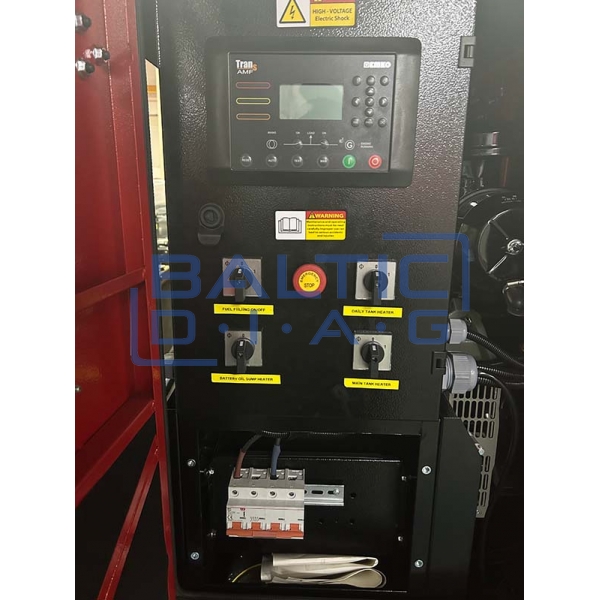

Control panel:

• Standards: ISO8528-4
• Protection class: IP44
• Control module: ARK700E
• Emergency stop switch
• Battery charger 5 Amp
• Generator controller
• Control relays
• Connector bridge (under panel)

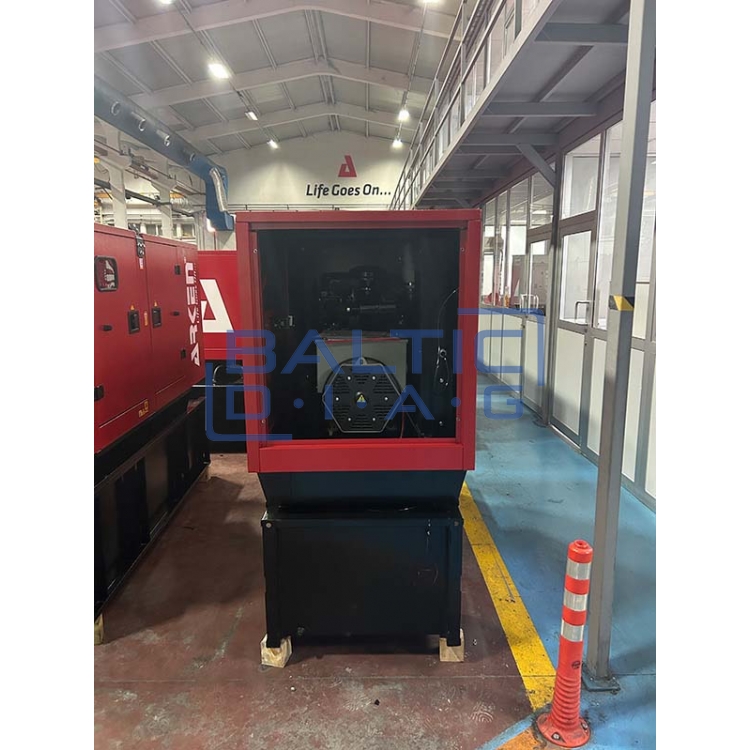

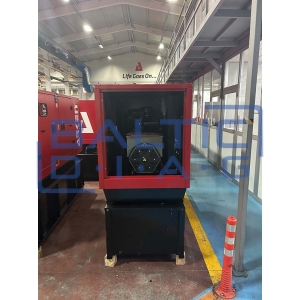

General information:

• Closed generator length: 2043 mm
• Closed generator width: 960 mm
• Closed generator height: 1464 mm
• Closed generator weight: 680 kg

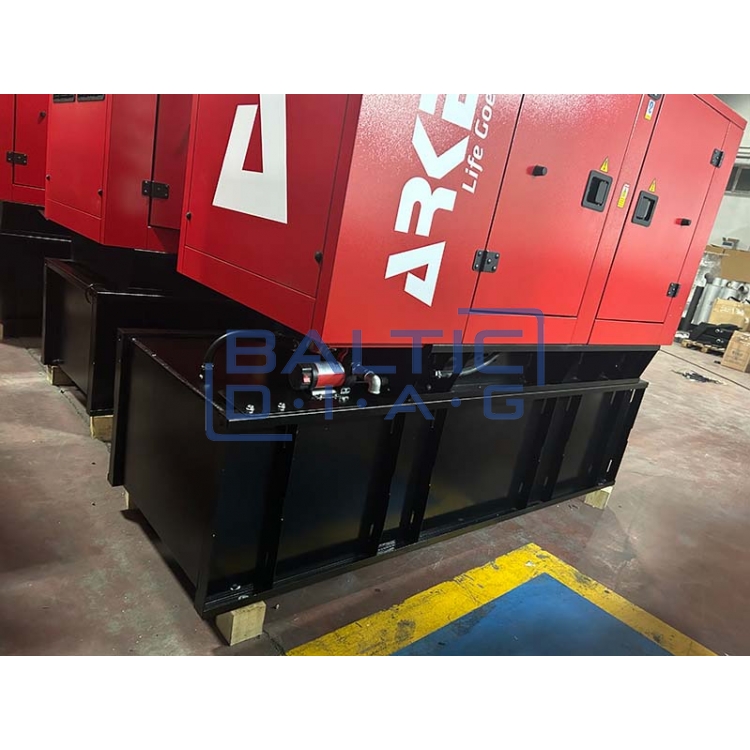

• Closed generator fuel tank capacity: 150 l
• Closed generator uninterrupted working time: 34,88 hrs.
• Closed generator noise level: 71.3 dB(A) @ 7m

The set includes:

• 3-pole ATS (automatic transfer switch) panel
• 3-pole circuit breaker
