Common rail injector test bench Codeman CR1 Express

Common rail injector test bench Codeman CR1 Express

This injector test bench Codeman CR1 Express - performs a comprehensive and extremely accurate inspection of Common - rail injectors. It is an advanced diagnostic device for accurate and efficient injector testing. The stand is designed for car workshops and fuel injection system repair specialists. It also helps ensure optimal performance and durability of diesel internal combustion engines. Therefore, it is an indispensable device for professionals who require accurate and reliable testing of common-rail injectors. With its advanced features and sturdy construction, this stand will help you with a variety of jobs.

Features:

• The CR1 Express provides extremely fast testing functions thanks to its user-friendly controls and highly sensitive measurement sensors.
• Thanks to its compact design, it does not take up a lot of space in the workshop and allows you to quickly and conveniently fix the nozzles to be tested, thus not causing you additional difficulties
• Ability to test different makes and models of injectors by simply changing the mounting nozzle and using a standard fluid pressure of 2500 bar.

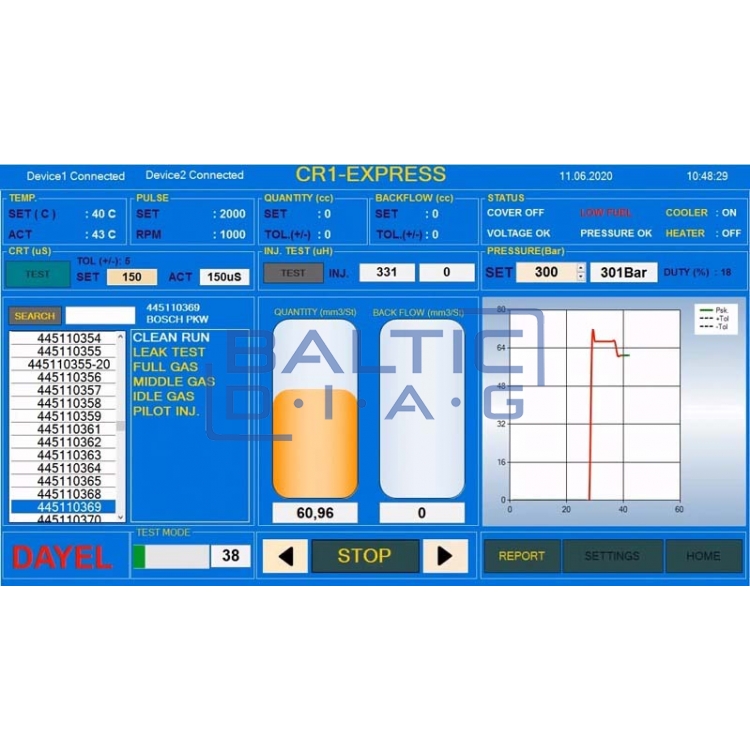

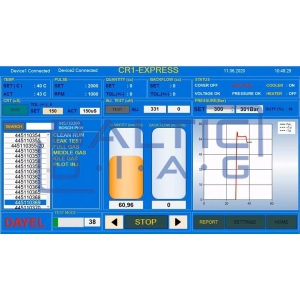

• Simple and convenient operation, thanks to the 10" touch control screen
• Adapts to the needs of the user, whether you are performing a fully automated or manual testing approach
• Extensive database where you can find 7 groups and more than 3000 test modes
• Ability to connect remotely
• One nozzle can be checked at a time

Tested nozzle models:

• Bosch
• Delphi
• Dance
• Siemens VDO
• CAT
• Scania

Technical data:

• Supply voltage: 230 V / 50 Hz / 1 fz
• Motor power: 2.2 kW / 3 Ag
• High pressure pump pressure: 0 – 2200 Bar (Opt. 2500 bar)
• Flow sensor filter: 20 µM
• Nozzle flow sensor range: 0.1 - 500 cc/min
• Oil capacity: 8 l
• Oil type: ISO 4113
• Dimensions: 600 x 1050 x 650 mm
• Weight: 140 kg
