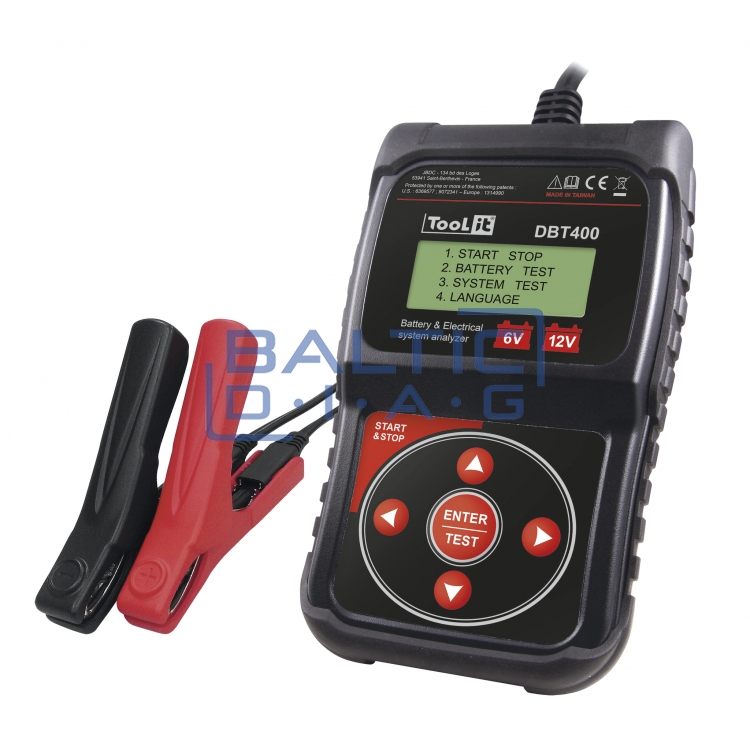

Battery tester GYS DBT 400

Battery tester GYS DBT 400

GYS, France; Warranty: 24 months

Description:

Accurate and easy-to-use multifunction battery tester with backlit LCD screen.

Suitable for working with motorcycles, cars, vans and trucks.

- 6 and 12V batteries: voltage and charge status check

- 12V and 24V starters: starting voltage check

- 12V and 24V generators: No-load voltage check and charging voltage, and current insulation during charging.

- Special function for internal battery resistance testing

Instantaneous experience: battery voltage (from 1.5V to 30V); possible starting powers; charging status.

Supported batteries: Several types of lead acid batteries with a capacity of 7 to 230 Ah are supported, including sealed batteries VRLA / GEL / AGM FLAT / AGM Spiral, standard liquid batteries and START / STOP batteries (EFB / AGM).

Operating limits:

- EN: 40> 2100 CCA

- DIN: 25> 1300 CCA

- SAE: 40> 2000 CCA

- IEC: 30> 1500 CCA (international standard)

- CA / MCA: 50> 2500 CCA (for water transport batteries)

Automatic outdoor temperature compensation. Advanced dynamic resistance measurement technology minimizes battery discharge and displays accurate results without being affected by: surface charging; parasitic load consumers (lamps and other indicators); contact inaccuracies (worn connections, loose connections, etc.).

Convenient LCD screen, pole shake protection, ABS housing (acid resistant), multilingual user interface, interchangeable terminals, powered by 6 x 1.5V internal batteries (LR6 - AA type)

Technical parameters:

- Supported batteries: 6 - 12V

- Supported battery capacity: 7 - 230 Ah

- Battery current indication: yes

- Battery voltage indication: yes, min. 1.5V

- Start-up and charging system check: 12V / 24V

- Display of results: within 1 s

- Cord length: 180 cm

- Dimensions: 190 x 50 x 115 mm

- Weight: 0.8 kg

- Code: 024182
