  • SKU: BD63887
2,499.00 €

Prices shown include tax

Send Message

Description

Jaltest PC Diagnostic Equipment for MAN Trucks
Professional diagnostic equipment designed for MAN truck diagnostics with an active license.

Warranty period – 24 months
The Jaltest PC diagnostic equipment for MAN trucks is a comprehensive solution for heavy commercial vehicle diagnostics, developed for service professionals and transport companies managing MAN fleets. This equipment can be used with a laptop or desktop computer via USB or Bluetooth connection. It enables deep diagnostics, calibrations, resets, ECU management, and provides access to the Jaltest INFO database containing extensive technical and repair information.



Why Choose Jaltest PC MAN?

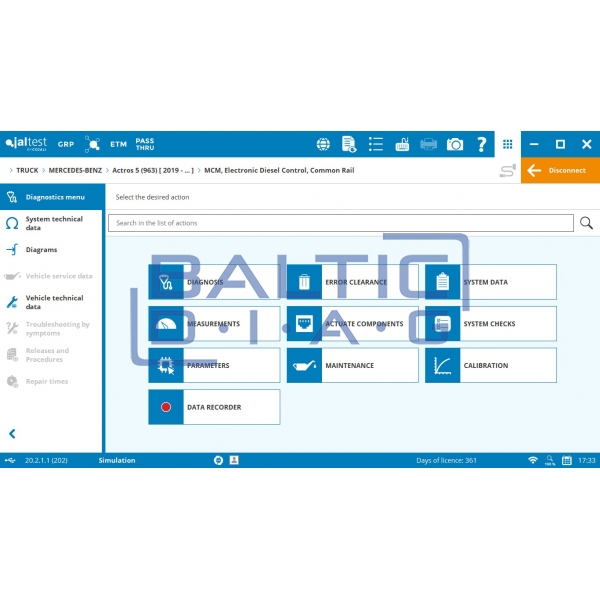

  • Ready for professional use. Diagnostics, calibrations, component activation – all integrated into one solution.
  • Full functionality. From automatic fault detection to repair time tracking – the equipment covers the full scope of workshop tasks.
  • A future-proof investment. When expanding your fleet, there’s no need to replace the device – simply add licenses for other brands.

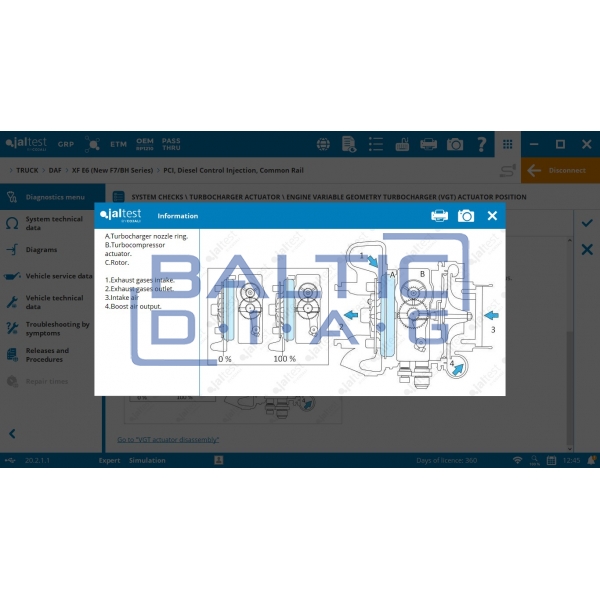

  • Technical support at every step. Jaltest INFO enables quick fault identification, component location, and access to step-by-step repair guides.
  • Stable and fast performance. Regular software updates, a comprehensive database (including Euro 6 support), and the fastest technical assistance on the market.
  • Free trial available. Try the equipment with no obligation before purchasing and experience its capabilities for yourself.
Features:
  • Supports all commercial vehicle standards and protocols, including RP1210 and Pass-Thru
  • Intuitive and fast software interface

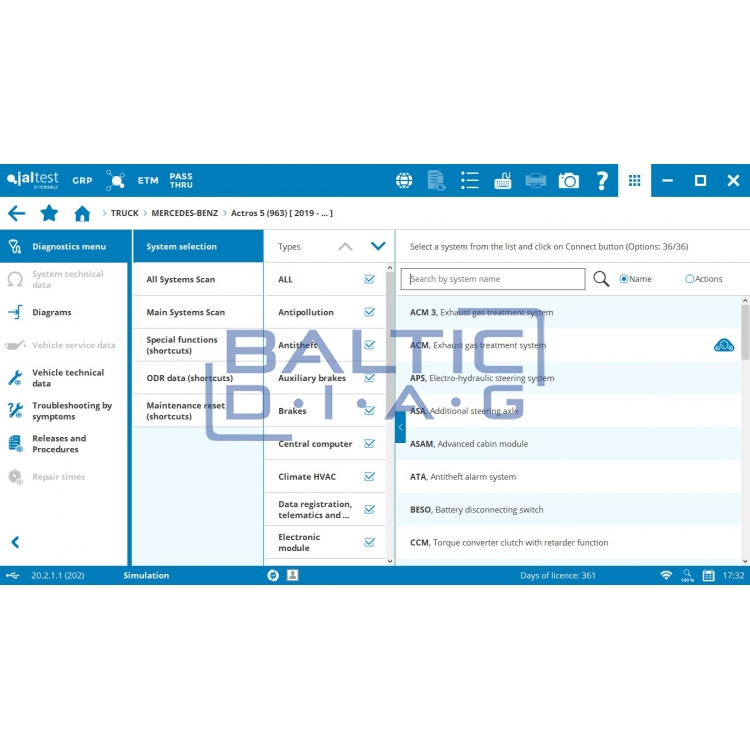

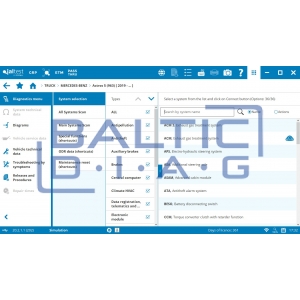

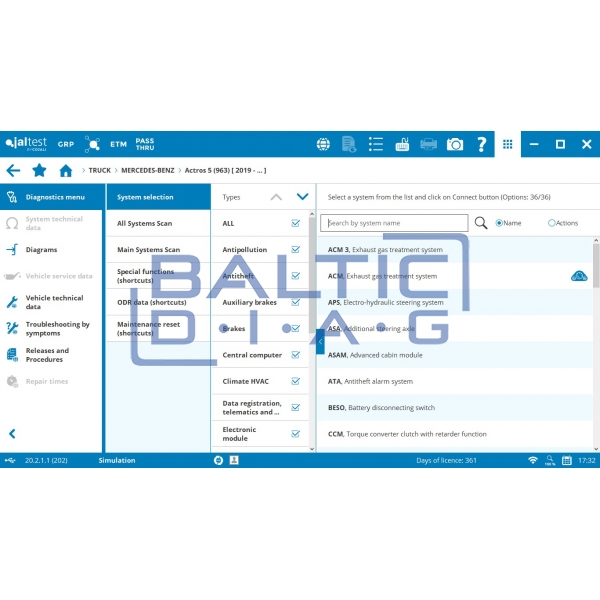

  • Automatic system and fault detection
  • Troubleshooting based on symptoms and fault codes

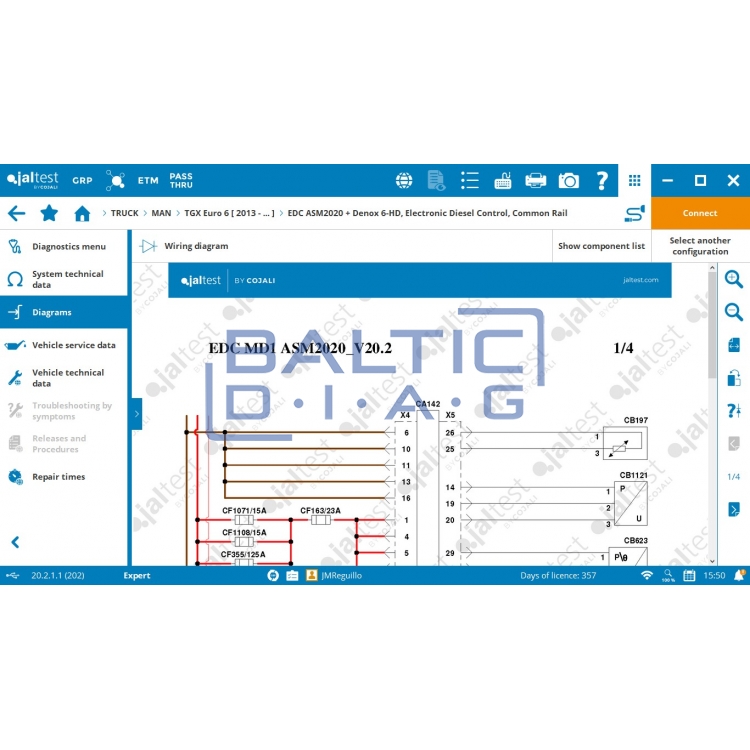

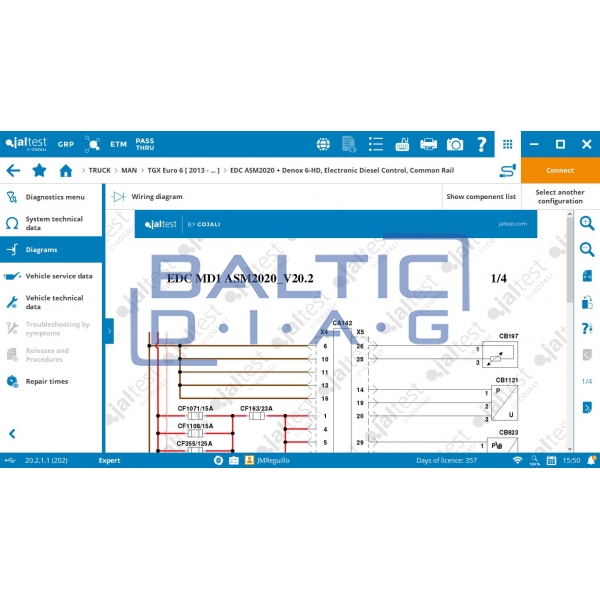

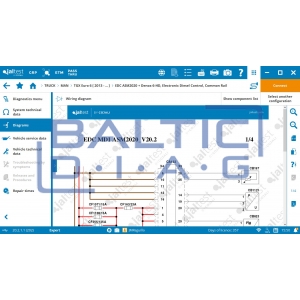

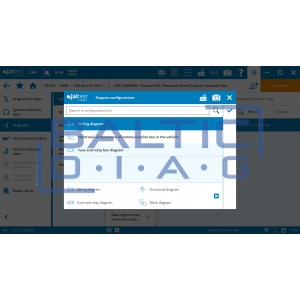

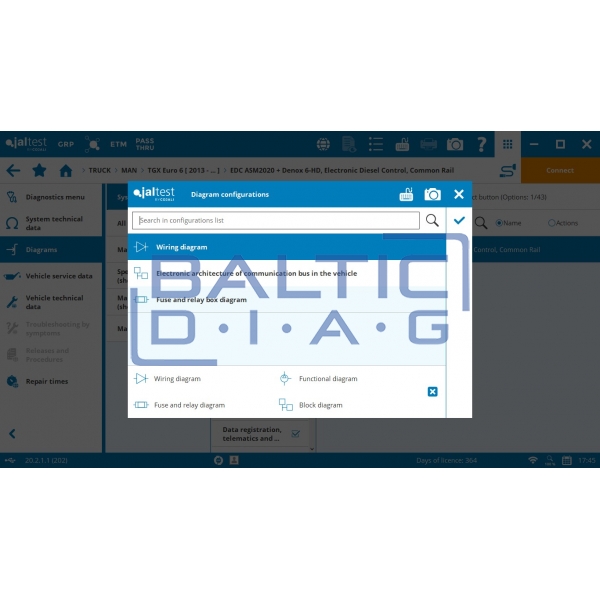

  • Integrated technical information, wiring diagrams, technical documents
  • ETM – electronic test module
  • GRP – workshop resource planning
  • Brand-specific licenses can be purchased separately
  • Repair times
  • ECU (Electronic Control Unit) diagnostics via OBD interface or specific adapter
  • Ability to connect to any diagnostic port using the universal cable with special adapters
  • Integrated automatic multiplexer – automatic switching of K and L, CAN, SAE lines to any OBD terminal
  • Supported diagnostic protocols: ISO 9141-2, K/L lines; ISO 14230 (KWP2000), K/L lines; SAE-J1850 VPW and PWM; ISO 11519-2; SAE J1708; ISO 15765-4 (OBD); CAN ISO 11898; CAN (High Speed, Middle Speed, Low Speed, single-wire CAN support); SCI Haldex; RP 1210; SAE J2534 (PASS-THRU)

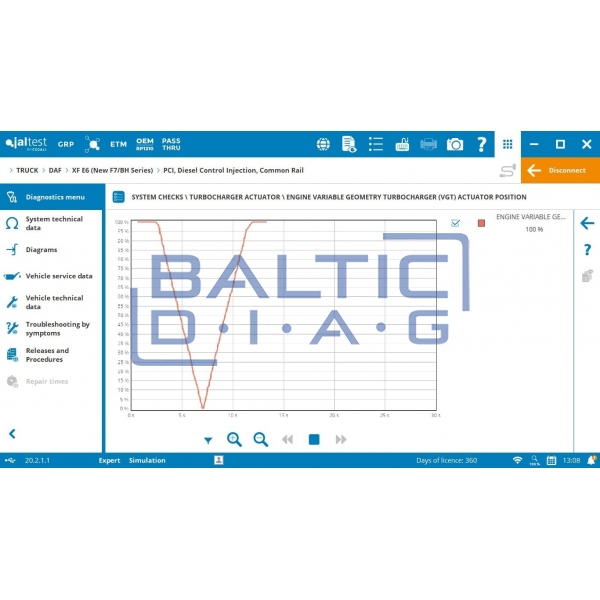

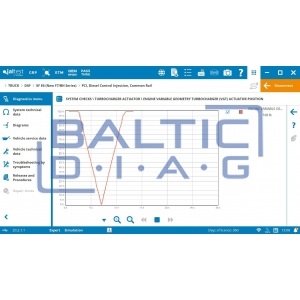

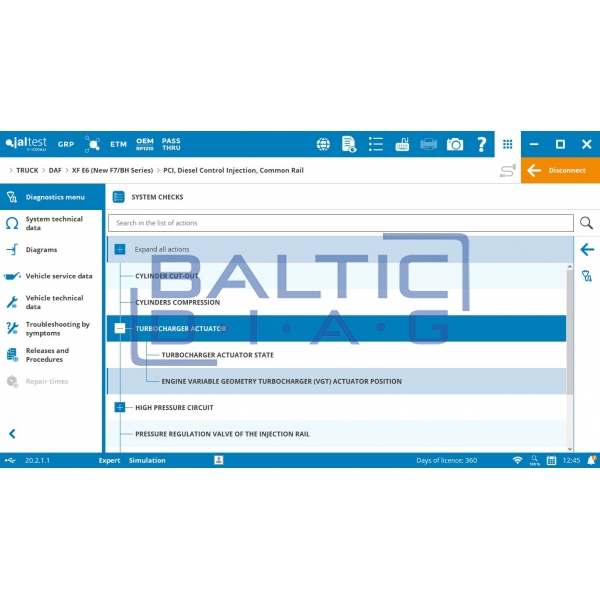

  • Component activation: ability to send signals to various systems using Jaltest – e.g., activate fan, deactivate cylinders, compression test, or control different mechanical functions
  • Up to 8 values can be measured and displayed simultaneously / information on nominal value ranges
Technical Specifications:
  • Connects to desktop or laptop PC via Bluetooth or USB cable
  • Bluetooth range: 20–50 m
  • Minimum PC requirements: DVD drive, Windows XP, 7, 8, 10 64-bit OS, 2 GB RAM, 10 GB free hard disk space, USB port
  • Powered via OBD connector or 12/24 V DC power supply
  • Power consumption: 7W
  • Shock-resistant housing
  • Weight: 1.2 kg
  • Dimensions: 183 x 131 x 56 mm
  • Operating temperature: 0°C to +45°C
  • Multilingual menu
  • Certifications: CE, FCC, RoHS

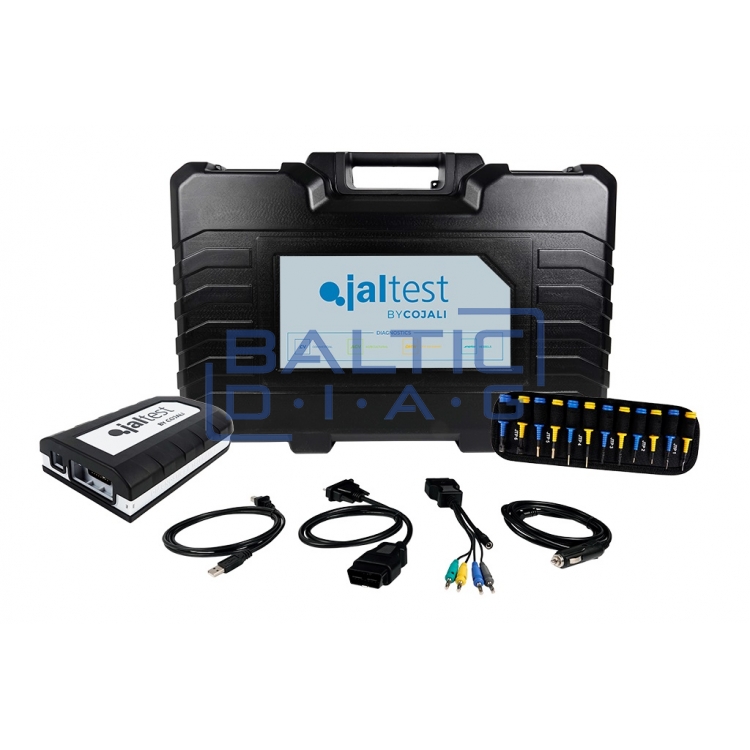

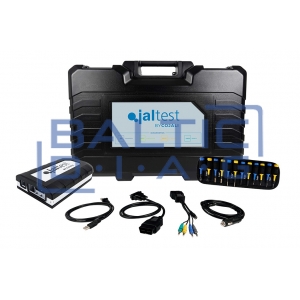

Standard Kit Includes:
  • 70001017 – Jaltest Link Kit
  • 293129 – MAN truck license
  • 29380 – Carrying case
  • JDC213M3 – OBD cable
  • JDC107.4 – USB cable
  • JTP96 – Universal diagnostic cable with special adapter set
  • Power cables for battery and vehicle power outlet

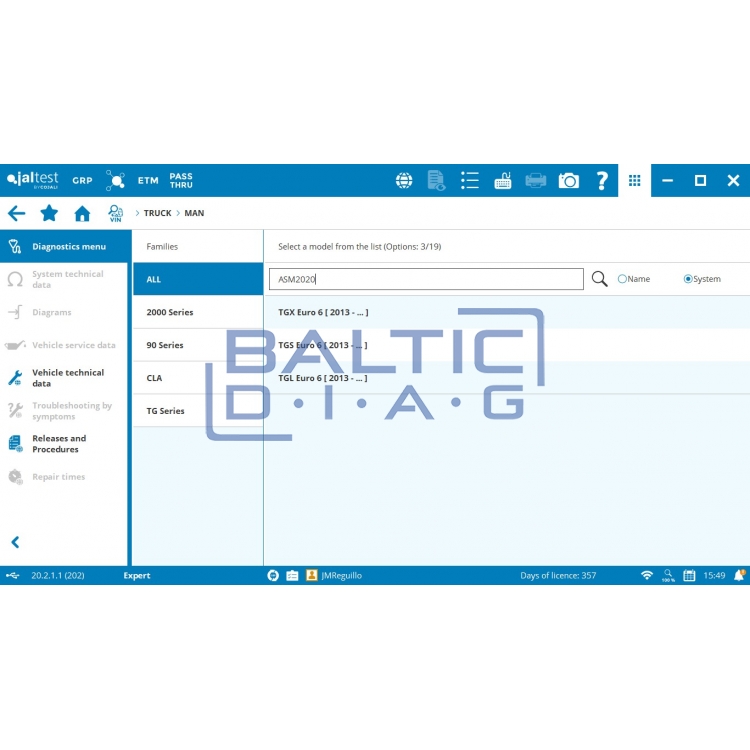

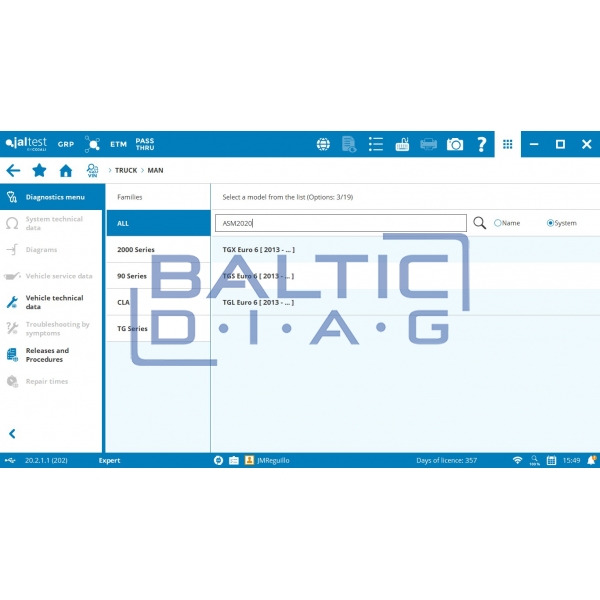

Supported MAN Truck Models
  • CLA [2007–2018]; E 2000 (19t–50t) [1992–2005]; F 2000 (19t–41t) [1992–2005]; F 90 [1986–1994]; G 90 [1987–1993]; L 2000 (7.5t–10.5t) [1992–2005]; LE [1994–2005]; M 2000 (12t–26t) [1992–2005]; M 90 [1988–1995]; ME [1995–2005]; TGA [1999–...]; TGL [2004–2014]; TGL Euro 6 [2013–...]; TGM [2004–2014]; TGM Euro 6 [2013–...]; TGS [2006–...]; TGS Euro 6 [2013–...]; TGX [2006–...]; TGX Euro 6 [2013–...]


Who Is This Device For?
  • This diagnostic system is ideal for truck service centers, independent MAN truck technicians, maintenance professionals, and transport companies with MAN fleets. It is a solution focused on efficiency, speed, and accuracy in day-to-day operations.
Trust the equipment chosen by professionals!
  • Try the Jaltest PC diagnostic equipment for MAN trucks and discover its full potential. Contact us for a free trial or a detailed consultation – this may be the solution that helps you work faster and more effectively!
