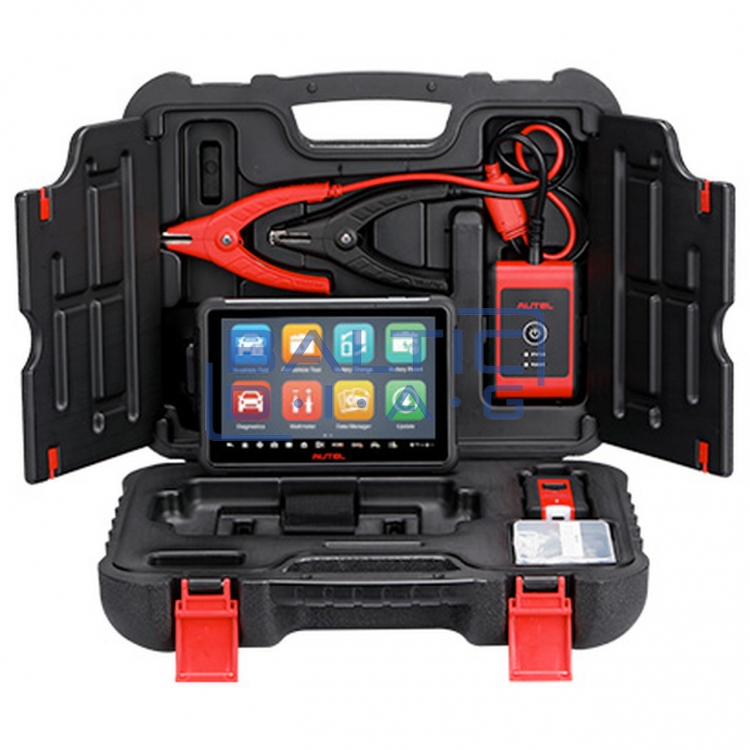

Battery diagnostic device Autel MaxiBAS BT609

Battery Diagnostic Device Autel MaxiBAS BT609

Manufacturer: AUTEL, warranty period – 24 months

The Autel MaxiBAS BT609 battery diagnostic device is designed for professional testing of 12 V batteries and electrical systems in automotive service centers, workshops, and maintenance facilities. Advanced Adaptive Conductance technology allows extremely accurate evaluation of battery cold cranking capability, reserve capacity, and overall condition. The 7-inch Android tablet with a touch screen provides clear, fast, and convenient diagnostics, enabling not only battery testing but also comprehensive analysis of the vehicle’s electrical system.

Technical specifications:

• Supported battery voltage: 12 V
• Test range: 100–3000 CCA
• Supported battery types: standard, AGM, AGM Spiral, EFB, GEL
• Supported standards: CCA, CA, SAE, EN, IEC, DIN, JIS, MCA
• Operating system: Android 9.0
• Memory: 2 GB RAM / 64 GB internal storage
• Display: 7.0-inch TFT-LCD, 1280 × 800, touch screen
• Connectivity: Wi-Fi, Bluetooth 5.0, USB, microSD up to 128 GB
• Camera: 8 MP
• Battery: 5800 mAh lithium polymer
• Operating temperature: 0–50 °C
• Dimensions: 197 × 135 × 14 mm
• Weight: 445 g

Autel MaxiBAS BT609 is a professional solution for service centers that value accuracy, working speed, and clear diagnostic results. It is a modern tool that helps efficiently assess battery condition, reduce the risk of incorrect fault diagnosis, and ensure high service quality in daily professional operations.
