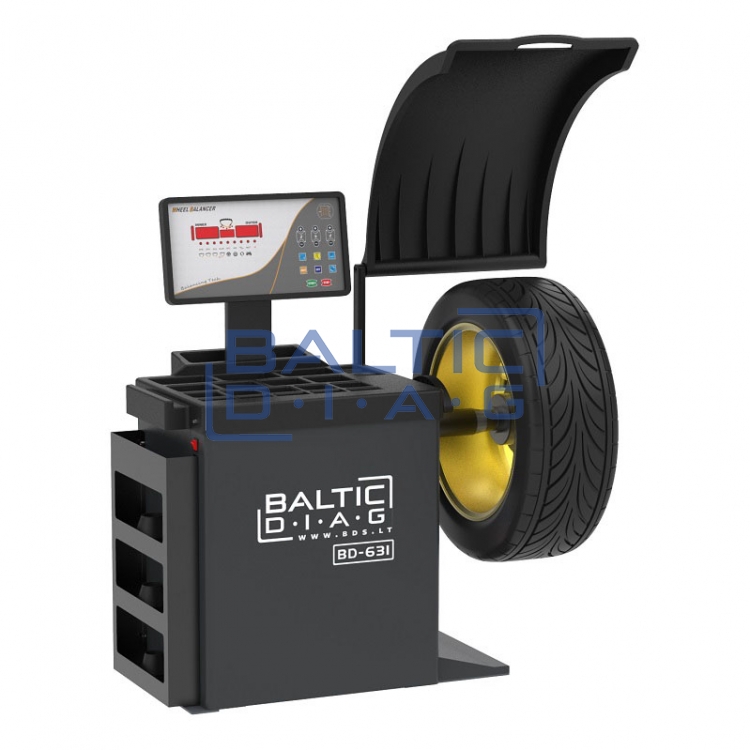

Automatic wheel balancing machine BD-631

Automatic wheel balancing machine BD-631

Features:

• Workplace lighting – LED lighting that makes work easier, you will be able to inspect the rim more easily and more carefully, clean it and properly glue the balancing weights.
• Laser pointer - with its help, you can easily and quickly find the place where you need to add the balancing weight.
• Automatic wheel stop - the balancing machine automatically stops the wheel at the place where the weight is to be glued.
• The main wheel balancing shaft is 40 mm in diameter. Longitudinal surface grinding and an excellent heat treatment process were applied to its processing. The aluminum drive pulley is corrosion resistant. For these reasons, the main shaft can be used safely and reliably for many years.
• Ruler - made of aluminum alloy, with extremely accurate measurement parameters, so with its help you will be able to get very accurate measurement results. Using this ruler, you will be able to more easily mark the place where the balancing weight should be glued. Also, you will have the option to automatically enter the diameter and distance of the wheels.
• Control panel - it is equipped with an LED screen with special buttons, with the help of which you can enter the necessary data or select a balancing program. Also, other LEDs will show you the parameters and results of the wheel imbalance and the location of the balance.
• Side compartments for things - you will have the opportunity to store various machine accessories in an accessible place at all times.
• Protective wheel cover – with its help, the operations of starting and stopping the balancing machine are controlled.
• Balancing Operations – The balancer has full wheel balancing operations such as dynamic balancing, static balancing, 3 ALU rim balancing modes and freely adjustable OPT function.

Technical parameters:

• Diameter of balanced rims: 10" - 28"
• Maximum wheel diameter: 1000 mm
• Wheel width: 1.5" - 20" | 38 - 510 mm
• Rotation speed, during balancing: 200 rpm
• Maximum wheel weight: 70 kg
• Balancing accuracy: ± 1 g
• Motor power: 0.25 kW

Standard equipment:

• Balancing cones of different dimensions x 4 pcs.
• Wheel width measuring ruler x 1 pc.
• Quick fix nut x 1 pc.
• 100 g calibration weight x 1 pc.
• Pliers, for working with weights x 1 pc.
• Mounting adapter with birth protection x 1 pc.
