AC Hydraulic VLT6 pneumatic transmission jack
AC Hydraulic VLT6 pneumatic transmission jack
AC Hydraulic VLT6 pneumatic transmission jack
AC Hydraulic VLT6 pneumatic transmission jack

AC Hydraulic VLT6 pneumatic transmission jack

  • SKU: BD13750
2,230.00 €

Prices shown include tax

Send Message

Description

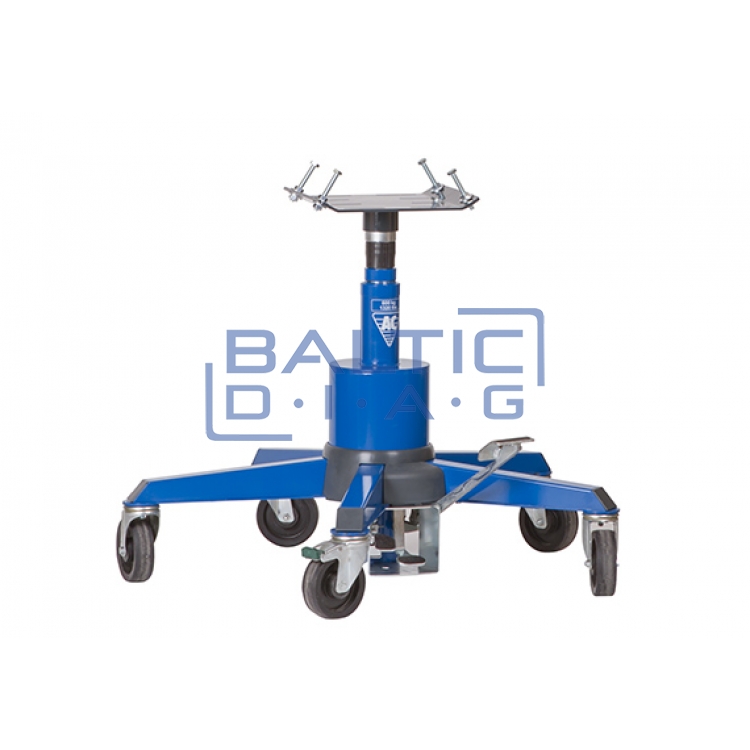

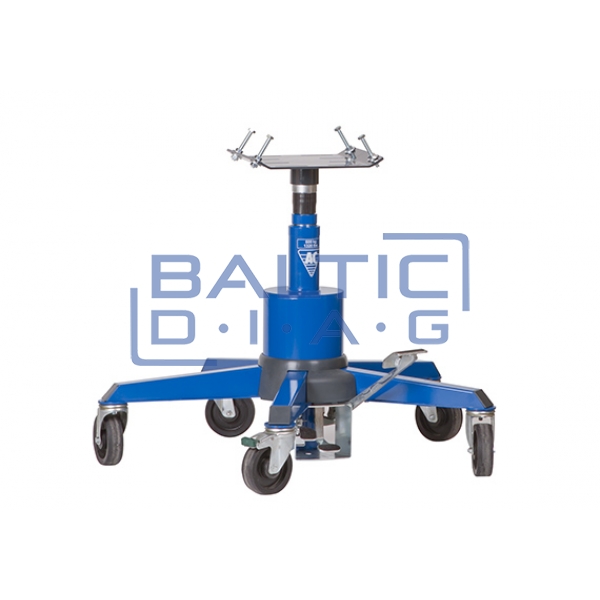

AC Hydraulic VLT6 pneumatic transmission jack


Semi-automatic transmission jack with pneumatic high speed control

Description:

- 3-step telescopic cylinder for extremely low minimum height
- 5 legs for extremely high stability
- Easy operation with 3 pedals to keep your hands free for other tasks
- Pneumatic access to load, hydraulic lifting of load
- Large and robust free-turning castors (with two brakes) for optimum maneuverability
- Integrated safety relief valve
- Manufacturer: Denmark
- Warranty: 3 years

Technical parameters:

- Lifting capacity: 0.6 tonnes
- Stroke of piston: 1195 mm
- Minimum height: 720 mm
- Maximum height: 1915 mm
- Cylinder steps: 1120/1520/1915 mm
- Compressed air power in steps: 200/120/60 kg
- Width: 950 mm
- Wheel diameter: 125 mm
- Required compressed air pressure: 8.5 - 12 bar
- Weight: 53 kg
