Welding machine Autool M508

Welding machine Autool M508

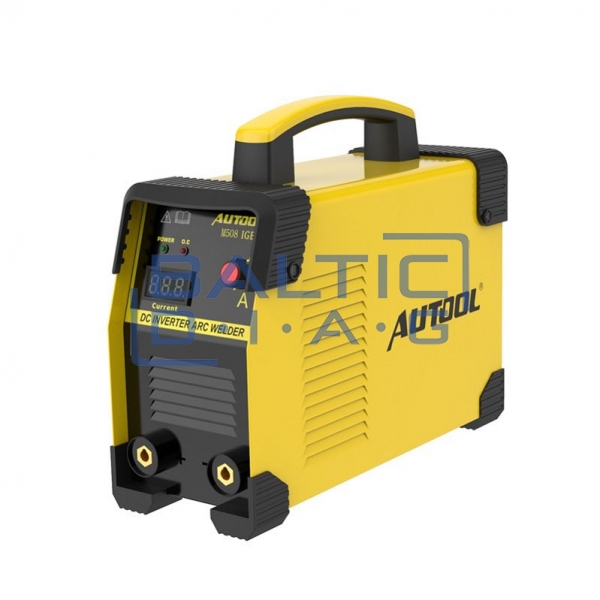

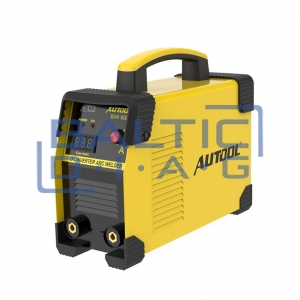

This small MMA welding machine Autool M508 is ideal for welding thinner materials. The machine can easily weld ordinary steel or metal materials. For this reason, Autool M508 is perfect for personal use or single tasks. The device uses IGBT technology, which gives it much smaller dimensions and lightness. Therefore, it is very convenient, it can be used wherever it is needed and where there is an electricity source.

The device easily welds stainless steel, alloy steel, carbon steel, copper, copper alloys and other non-ferrous metals, even for novice welders. IGBT power unit with unique control mode makes ARC ignition easy to start. The device ensures stable welding work, deep and beautiful welding shape, perfect for home projects and general repair work.

Features:

• The device ensures smooth welding of metal materials with a thickness of up to 3 mm.
• A digital display where we can see the adjustable welding current.
• Integrated protection against overheating. When the device exceeds the safe internal temperature, it will be temporarily shut down.
• Mobile and lightweight, the body is made of solid stainless steel, which is finished with a durable yellow powder coating, thus ensuring a long service life.
• Using advanced inverter technology, the device will achieve rated input power: 4.1 kVA, duty cycle up to 60%, which improves the performance and smooth operation of the welding machine.

Technical parameters:

• Supply voltage: 230 V / 1 fz
• Efficiency: 85%
• Rated input current: 20.3A
• Power factor: 0.93
• No load voltage: 25.6V
• Output voltage: 25.6V
• Adjustable current ranges: 20 ~ 160 A
• Duty cycle: 60%
• Loss without load: 40 W
• Weight: 5.13 kg

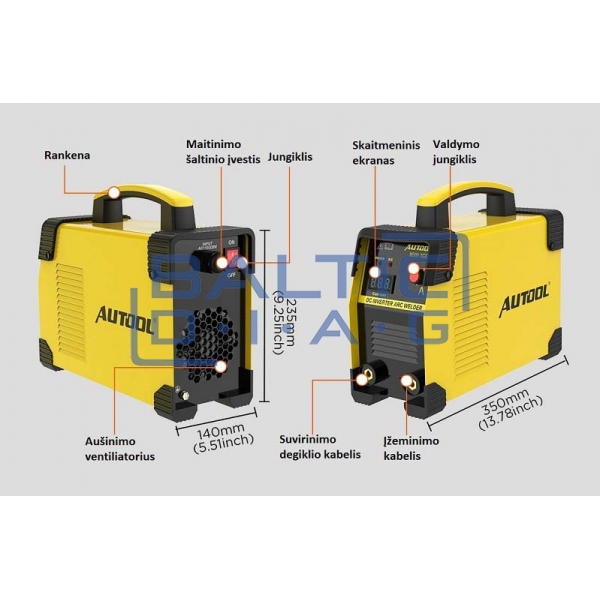

• Dimensions: 350 x 140 x 235 mm

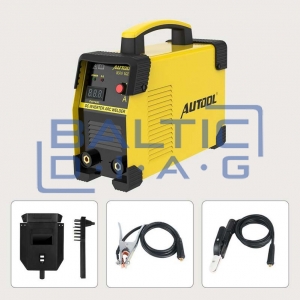

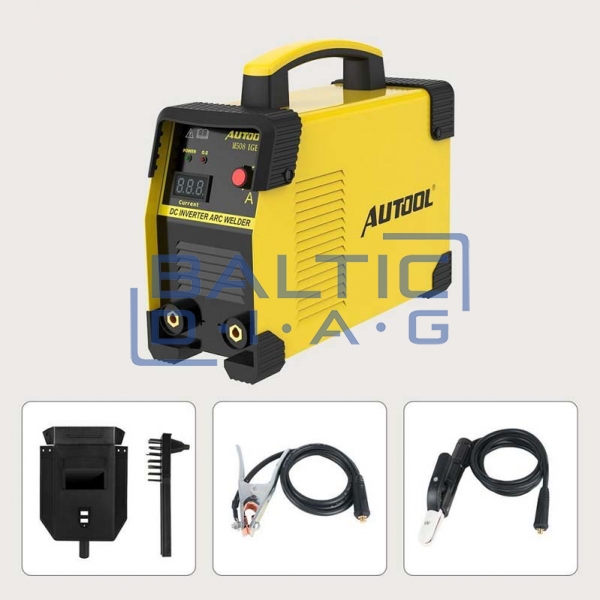

Complete set:

• Welding device Autool M508
• Power cord
• Wire brush
• Slag scraper
• User manual
