Electronic device for downloading data from tachographs TachoDrive NX STD

Electronic Device for Downloading Data from Tachographs TachoDrive NX STD

Country of origin: Lithuania, warranty period – 24 months

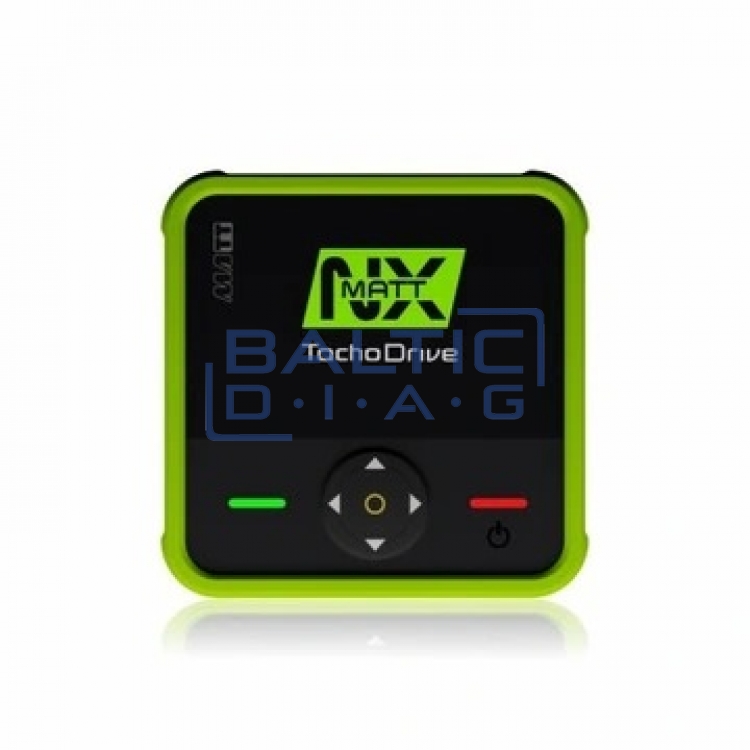

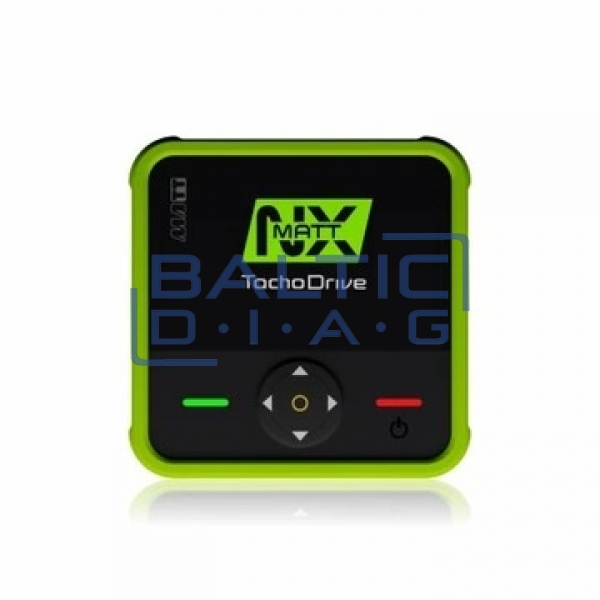

TachoDrive NX STD is the basic yet professional version of the electronic device designed for secure downloading of data from digital tachographs and driver cards. The device features a durable housing, a 2.83-inch TFT display, illuminated keypad, and a USB-C port. It allows fast and convenient data download, on-screen review, and archiving in internal memory.

Note: The STD version does not include advanced analysis features such as infringement summaries, activity diagrams, or automatic PIN verification.

OTHER AVAILABLE VERSIONS: TD NX PRO and TD NX WSP

Features:

• Downloading data from driver cards
• Downloading data from tachographs
• Viewing tachograph information (via the menu “Tachograph > Info”)
• Automatic data download (DL)
• Transferring data to TD NX internal archive
• File analysis on the device (not in the cloud)
• Built-in password protection
• Wi-Fi / Bluetooth connectivity (optional – if marked as included in version comparison table)
• Printing via "label" function (only via BT with NX2 system)

Technical Specifications:

• Dimensions: 86 × 86 × 20 mm
• Weight: 160 g
• Operating temperature: –5 °C to +55 °C
• Storage temperature: –25 °C to +70 °C
• Protection rating: IP-40
• Power supply: internal Li-Po battery, USB charging
• Display: 2.83" color TFT, 240 × 320 px
• Power consumption: max 900 mW
• Connections: USB-C, card reader slot
• Supported cards: driver, company, workshop (depending on configuration)
• Software: TD Configurator (stored in internal memory)
• Operating system compatibility: Windows, Android, iOS
• Wireless connectivity: Wi-Fi / Bluetooth (if included in configuration)
