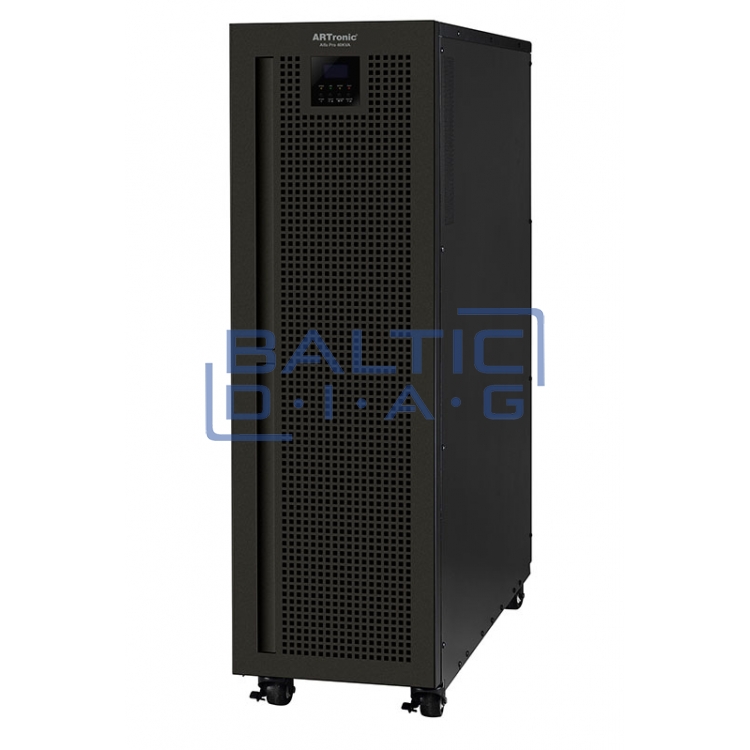

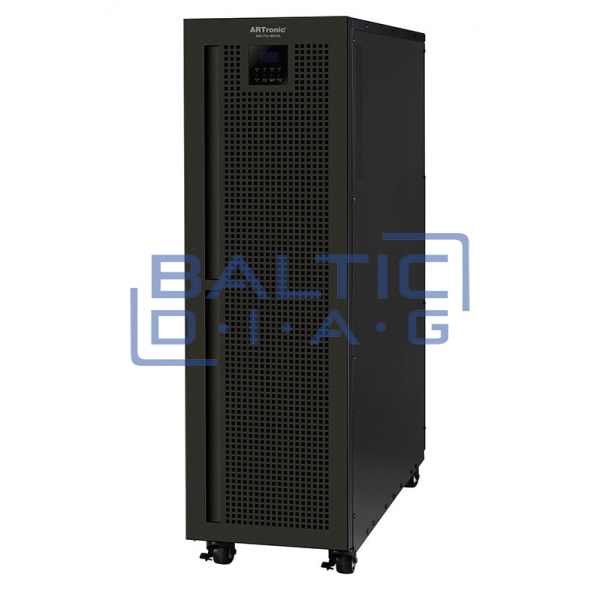

Uninterruptible power supply (UPS) ARTon Alfa Pro 40

Large capacity uninterruptible power supply (UPS) ARTon Alfa Pro 40

Warranty: 24 months for the device, 12 months for battery batteries

The purpose of an uninterruptible power supply (UPS) is to maintain a stable and uninterrupted power supply to all devices in the circuit when the mains power supply fails. Our UPS systems will ensure that your devices never lose power, even during sudden power outages.

Specifications:

• Output power factor 1, in various capacities from 10 ~ 80 kVA
• A true double conversion
• DSP technology guarantees high reliability
• Active power factor correction in all phases
• Maintenance bypass available
• The smart battery charger is specially designed to optimize the performance of batteries
• Adjustable battery pack design and quantity (32~40pcs)
• 50 Hz / 60 Hz frequency converter mode
• ECO mode operation for energy saving
• Emergency power off function (EPO)
• It is possible to connect up to 6 standard batteries in parallel
• Adjustable charging current
• The possibility of installing an additional 5" touch screen
• An uninterrupted power supply is ensured from 3 min. (power time depends on the number and capacity of batteries)


Widely used in the following areas:

• In the medical sector
• In the financial sector
• In the industrial sector
• in the IT sector
• In the energy sector
• In the construction sector
• In the industrial sector


Technical data:

• Model: ARTon Alfa Pro 40
• Capacity: 40 kVA
• Capacity: 40 kW
• Parallel connection: 6

Input:

• Nominal voltage: 400 V / 3 fz (3F + N)
• Voltage range: -30% to + 20%
• Frequency ranges: 40 ~ 70 Hz
• Power factor: ≤ 0.99 at 100% load
• Harmonic distortion: ≤ 3% at full load

Output:

• Output voltage: 400 V / 3 fz (3F + N)
• AC voltage regulation: ±1%
• Frequency ranges (in sync mode): 46 ~ 54 Hz or 56 ~ 64 Hz
• Frequency ranges (battery mode): 50 HZ ± 0.1 Hz or 60 Hz ± 0.1 Hz
• Current Crest ratio: 3 : 1 (max.)
• Harmonic distortion: ≤ 1% THD (series load); ≤ 3% THD (discontinuous load)
• Transfer time, AC to battery. Batteries: 0 sec.
• Overload, in AC mode: 100 - 100% up to 60 min; 111 – 125% up to 10 min; 126~150% up to 1 min; >150% up to 400 ms

Efficiency:

• AC mode: 96%
• ECO mode: 99%
• Battery mode: 96%

Battery:

• Type of standard batteries: 12 V / 9 Ah
• Typical recharge time: 9 hours, charges up to 90%
• Number of standard battery cells: (16 + 16) x 2 bars
• Charging voltage for standard battery batteries: ±218 VDC ± 10%
• Standard battery charging current: 1~12A (adjustable)
• Number of long-life batteries: ±32 ~ 40 pcs. (correctable)
• Charging voltage for long-term batteries: ±13.65V x N (N=16 – 20)
• Long-term storage batteries Charging current: 1 ~ 12 A (adjustable)

Screen:

• LCD display: UPS status, load level, battery charge level, input/output voltage, discharge timer, various fault information

Physical data:

• Standard model dimensions: 815 x 300 x 1000 mm (L x W x H)
• Standard model weight: 250 kg
• Dimensions of long-term model: 815 x 300 x 1000 mm (L x W x H)
• Long-term model weight: 61 kg

Environment parameters:

• Operating temperature: 0 - 40°C
• Operating humidity: <95% without any condensation
• Noise level: less than 63 dB from a distance of 1 meter

Management:

• Smart RS232 / USB: Windows 2000 / 2003 / XP / Vista / 2008 / 7 / 8 / 10, linux and MAC operating systems are supported
• SNMP (optional): power management using SNMP controller and web browser
