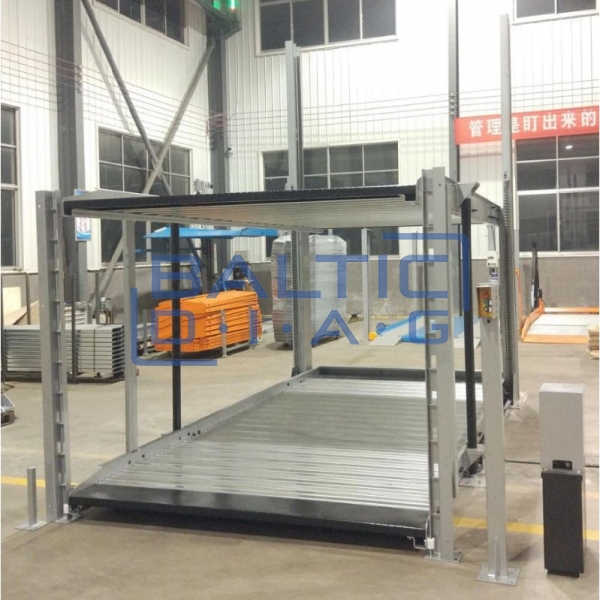

Pit Parking Lift for Cars
Country of origin: China, warranty period – 24 months
The pit-type two-post parking lift is an efficient and space-saving solution for vertically storing vehicles in confined urban or private areas. The system is installed with a recessed pit, allowing the lower platform to descend to ground level while safely accommodating a second vehicle above. Thanks to its hydraulic drive and chain balance system, the lift operates smoothly and quietly. It can be controlled using push buttons or a remote control, and the dual-cylinder design ensures stable lifting performance.
Features:
- Suitable for vertically parking two vehicles in a single space
- Installed into a pit – the lower car can be fully concealed below ground level
- Hydraulic drive with chain balancing ensures smooth and safe lifting
- Easy operation via push buttons or remote control
- Dual hydraulic cylinders provide enhanced stability
- Compact construction, suitable for both residential and commercial environments
- Platform made from 2.0 mm wave-shaped steel – strong and reliable
- Optional powder coating or hot-dip galvanizing for long-lasting protection
Technical Specifications:
- Car dimensions: 5000 × 1850 × 1750 mm
- Lifting capacity: ≤2500 kg
- Platform width: 2100 mm
- Height between platforms: 1800 mm
- Drive type: hydraulic with chain balance
- Voltage: 220/380 V, 50 Hz, 1/3 phase
- Control voltage: AC 24 V
- Lifting/lowering time: 50 / 40 seconds
- Equipment dimensions: 5223 × 4290 × 2542 mm
- Platform: 2.0 mm wave-shaped steel
- Motor power: 3.7 kW
- Operation mode: button / remote key
- Hydraulic cylinders: 2 units
