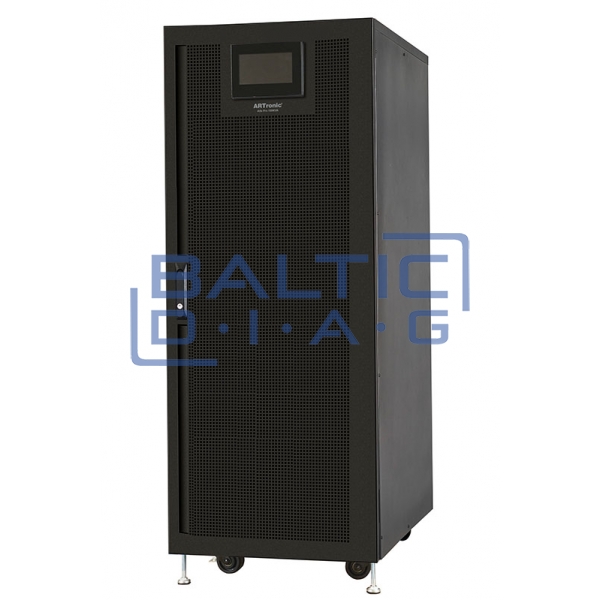

Uninterruptible power supply (UPS) ARTon 120

Large capacity uninterruptible power (UPS) supply ARTon 120

Warranty: 24 months for the device, 12 months for battery batteries

The purpose of an uninterruptible power supply (UPS) is to maintain a stable and uninterrupted power supply to all devices in the circuit when the mains power supply fails. Our UPS systems will ensure that your devices never lose power, even during sudden power outages.

Specifications:

• The sound insulation of the device has been strengthened
• An additional isolation transformer ensures complete isolation and trouble-free operation
• 3-stage expandable charging design that optimizes battery life
• Maintenance is possible only with special permission
• Ability to change the amount of batteries used
• Compatible with generator
• Power input function
• Parallel operation of standard batteries connected up to 4 units
• Option to have 2 alternating current (AC) inputs
• Emergency shutdown function
• Active power factor correction in all phases
• The main service is carried out from the front of the unit, which greatly facilitates maintenance
• Power supply is connected
• Output power factor 1
• DSP technology ensures extremely high equipment performance
• An uninterrupted power supply is ensured from 3 min. (power time depends on the number and capacity of batteries)


Widely used in the following areas:

• In the medical sector
• In the financial sector
• In the industrial sector
• in the IT sector
• In the energy sector
• In the construction sector
• In the industrial sector


Technical data:

• Model: ARTon 120
• Phases: 3 input phases / 3 output phases
• Capacity: 120 kVA
• Capacity: 120 kW
• Parallel connection: 4

Input:

• Nominal voltage: 400 V / 3 fz (3fz + N)
• Voltage ratings: 110 - 300 VAC @ 50% load; 176 - 276 VAC @ 100% load
• Frequency ranges: 40 ~ 70 Hz
• Power factor: ≤0.99 @ 100% load
• Harmonic Distortion: < 4% with full series load

Output:

• Output voltage: 400 V / 3 fz (3fz + N)
• AC voltage adjustment (in battery mode): ± 1%
• Frequency ranges (in sync mode): 46 ~ 54 Hz or 56 ~ 64 Hz
• Frequency ranges (in battery mode): 50 / 60 Hz ±1%
• Existing Crest ratio: 3 : 1 (max.)
• Harmonic Distortion: 2% THD (series load); 5% THD (not series load)
• Transfer time, AC to battery. Battery: 0 sec.
• Signal waveform (in battery mode): Pure sine wave
• Overload, in AC mode: 100 - 110% up to 60 min.; 111 – 125% up to 10 min.; 126 – 150% up to 1 min; >150% immediate shutdown

Bypass:

• Nominal voltage: 400 V / 3 fz (3fz + N)
• Voltage ranges: 305 ~ 457 V AC
• Frequency modes (synchronized mode): 46 ~ 54 Hz or 56 ~ 64 Hz
• Overload capability: > 130% up to 1 min (typical)

Efficiency:

• AC Mode: 94.8%
• ECO mode: 98.5%
• Batteries battery mode: 93.8%

Battery:

• Battery type: depending on the purpose
• Number of accumulator batteries: 32 ~ 40 pcs. (correctable)
• Charging current (max): 2 ~ 36 A (adjustable)
• Charging voltage: ±13.65V * N (N=16~20)

Screen:

• LCD touch screen: UPS status, load level, battery charge level, input/output voltage, discharge timer and various fault warnings

Physical data:

• Dimensions: 974 x 600 x 1600 mm
• Weight: 286 kg

Environment parameters:

• Operating temperature: 0 - 40°C
• Operating humidity: <95% without any condensation
• Noise level: less than 75 dB from a distance of 1 meter

Management:

• Smart RS232 / USB: Windows 2000 / 2003 / XP / Vista / 2008 / 7 / 8 / 10, linux and MAC operating systems are supported
• SNMP (optional): power management using SNMP controller and web browser
