Truck frame repair equipment Herkules RAM-Truck Hybrid 880000, Standard

HERKULES RAM-TRUCK Hybrid™ 880000 – Frame repair STANDART SET

HERKULES RAM-TRUCK™

• A complete system for frame repair.
• Mobility and easy installation on the bench.
• Hybrid construction – aluminum alloys and steel.
• Compatibility with similar repair systems.

A system for conducting accident and operational repairs of damaged commercial vehicle frames. A set of equipment, for which the base is a grate permanently embedded in the floor of the workshop, allows you to perform straightening efficiently, ergonomically and safely. The basic set includes horizontal presses, counterstays, vertical presses, a “C” press, and anchoring equipment and support hardware. Each set is equipped with chains and pull hooks.

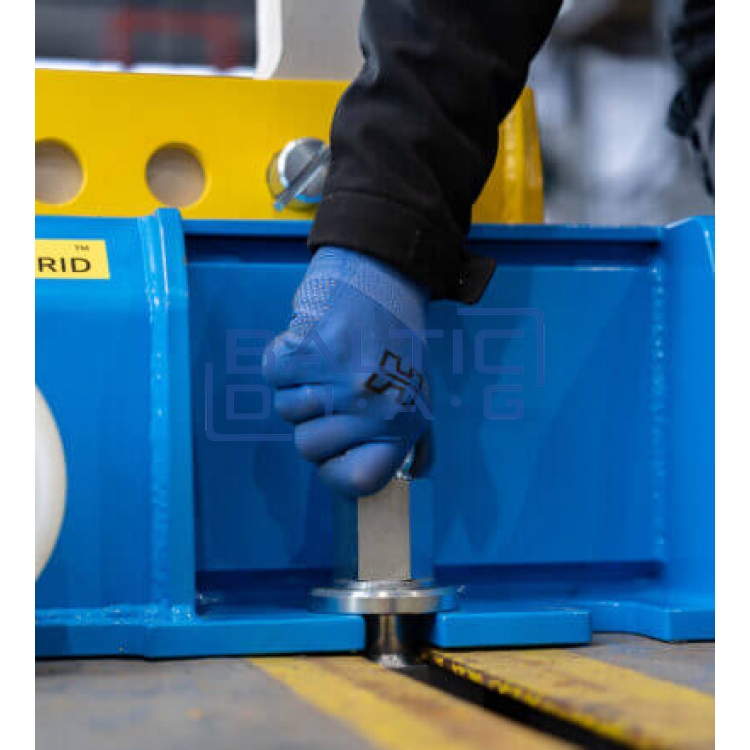

HERKULES RAM-TRUCK™ is a system that works with a grate embedded in the floor of the workshop hall. The optimal external dimensions of the stand are 20 m x 6.5 m. The external dimensions of the grate are 16 m x 4.5 m. The grate is made on the basis of an individual design prepared for the investor. The fastening system uses slots in the grate. This allows for quick and efficient attachment of the system’s basic equipment, such as presses, dams, pulling towers, cabs repair system and frame fixing roller brackets.

HERKULES RAM-TRUCK Hybrid™ 880000 – Frame repair STANDART SET

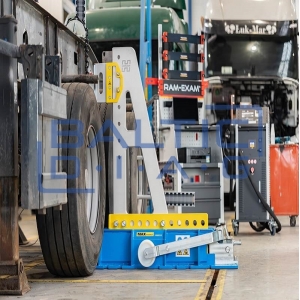

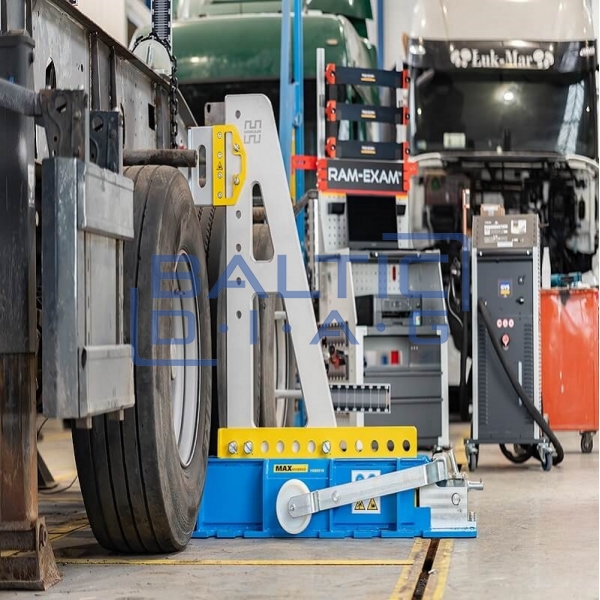

• 880010-H - Horizontal press 200 kN MAXhybrid™ - 2 sets
• 880020-H - Couterstay trolley BLOCKhybrid™ - 1 set
• 880011-H - Bracket large ALUMINIUM hybrid - 3 pcs
• 880012-H - Bracket standard ALUMINIUM hybrid - 3 pcs
• 880022-H - Press head 150 hybrid - 3 pcs
• 880023-H - Press head 250 hybrid - 2 pcs
• 880024-H - Press head 450 hybrid - 1 pcs
• 880030-H - Vertical press 200 kN TOWERhybrid™ - 2 sets
• 880034 - Extension for TOWERhybrid™ - 2 pcs
• 880040-H - Jacking stand JACKhybrid™ - 2 sets
• 880250-H - Roll holder hybrid - 2 sets
• 880610 - Frame overlay - narrow - 2 pcs
• 880620 - Frame overlay - wide - 2 pcs
• 880513 - Chain with hook „13” - 3 sets
• 880059-H - C-press 100 kN SMARTPOWERhybrid™ - 1 sets
• 880045-H - C-press 200 kN CYBAPOWERhybrid™ - 1 set
• 880046 - Frame shaping head 75O for C-press 200 kN - 1 set
• 880047 - Frame shaping head 105O for C-press 200 kN - 1 set
• 880070 - Anchoring holder - 14 pcs
• 880200 - Frame pulling hook - 1 pc
• 880600 - Overlay for chain - 1 pc
• 880300-H - Hydraulic 200 kit 200 kN - 1 sets
• 880900-H - Hydraulic 100 kit 100 kN - 1 sets
• 880080-H - Hydraulic pump POWERhybrid™ RC control- 6 sets
• 880090 - Rack TRUCK - 1 set
