Truck diagnostic tool Launch X-431 Euro LINK HD

Truck Diagnostic Tool – Launch X-431 Euro LINK HD

Warranty period – 24 months

Why Choose Launch X-431 Euro LINK HD?

• Smart Performance
• Powered by a fast Android 10 system, 2.0 GHz quad-core processor, 4 GB RAM, and 64 GB ROM for lag-free, efficient work.
• Extended Diagnostic Capabilities
• Performs full system diagnostics, including fault code reading and clearing, live data viewing, component activations, and specialized service functions.
• SmartLink C – the Ultimate Connectivity Hub
• Supports Bluetooth, Wi-Fi, Ethernet, DoIP, Pass-Thru, and remote diagnostics via Launch cloud servers – maximum flexibility in any situation.
• Intuitive Data Analysis
• Sensor data is displayed graphically, with multiple graphs viewable simultaneously – deeper insights in less time.
• Built-in Tools for Professional Workshops
• Supports video scopes, battery testers, and optional database integrations – all in one platform.
• Ready for Real-World Use
• Durable design, Gorilla Glass screen, and high-capacity battery ensure reliable performance throughout the workday.

Functions:

• Read and clear component fault codes
• Monitor live data streams (graphical display)
• Component testing and activations
• Special functions, including:
• DPF regeneration
• Service interval reset
• Speed limit and idle adjustment
• Throttle position monitoring
• Cylinder deactivation test
• Cooling fan calibration
• AdBlue and NOx system control
• Remote diagnostics via Launch server platform (paid option)
• SmartLink C support: Bluetooth / Wi-Fi / Ethernet

Technical Specifications:

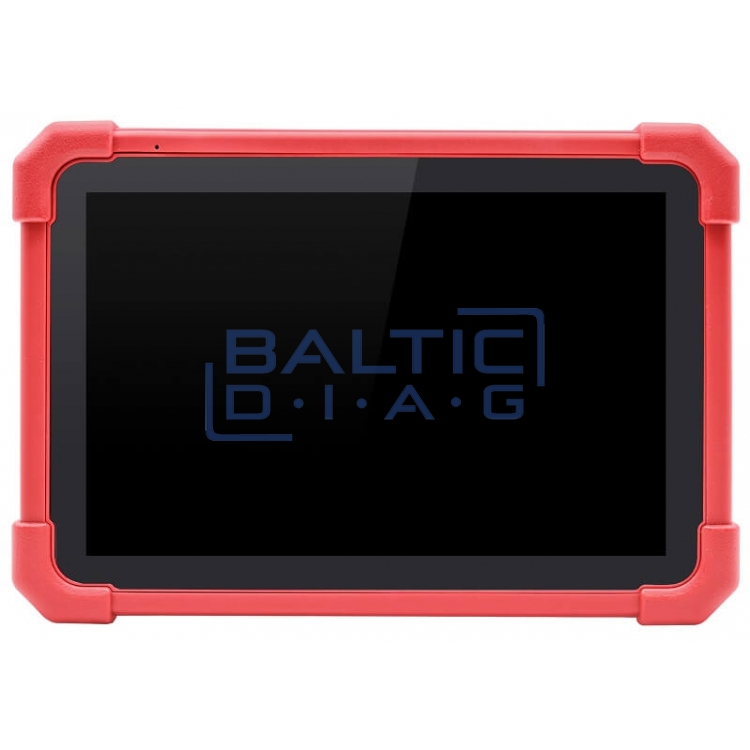

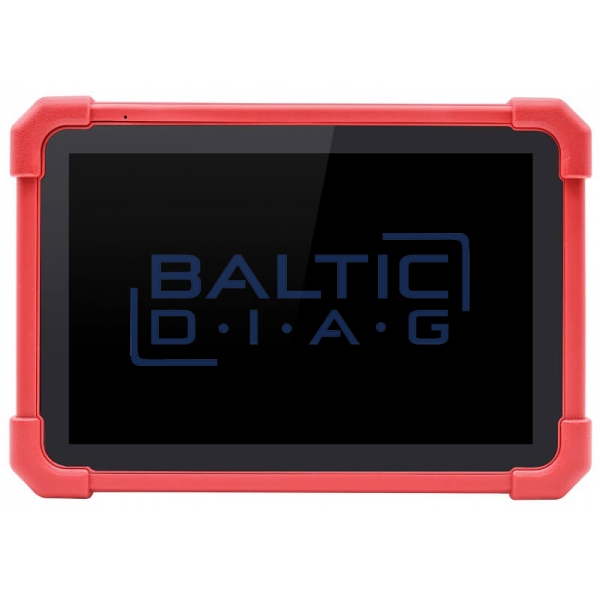

• Tablet:
• Processor: 2.0 GHz, quad-core
• OS: Android 10.0
• RAM: 4 GB
• ROM: 64 GB
• Battery: 47.88 Wh (7.6 V; 6300 mAh)
• Display: 10.1”, 1280 × 800, Gorilla Glass
• Camera: 8 MP (rear)
• Wi-Fi: 2.4 GHz / 5 GHz
• Input ports: Type A, Type C
• Dimensions: 274 × 190 × 40 mm

SmartLink C Module:

• Fast local diagnostics via Bluetooth
• Remote diagnostics (Launch SRDs) via Wi-Fi / Ethernet
• DoIP compatibility
• Pass-Thru support
• Display: 3.97” touchscreen, 320 × 480
• Operating voltage: 9–36 V DC
• Remote communication: Ethernet / Wi-Fi
• Wi-Fi: 5G
• USB port: Type B, USB 2.0
• Internal memory: 8 GB
• RAM: 256 MB
• Dimensions: 204 × 110 × 45 mm

Who Is This Device For?

• The Launch X-431 Euro LINK HD is ideal for workshops servicing trucks, buses, construction equipment, and agricultural machinery. It is a top choice for advanced technicians, repair shops, and mobile service professionals who demand speed, accuracy, and reliable diagnostics in one unified system.

Choosing the right diagnostic tool is more than a decision – it’s an investment in efficiency!

• Try the Launch X-431 Euro LINK HD and feel the difference immediately – contact us today for a consultation!
