Tire Mounting and Automatic Wheel Balancing Machine Set BD-810 + BD-670

Tire Mounting and Automatic Wheel Balancing Machine Set BD-810 + BD-670

Country of Origin: China, Warranty Period: 24 months

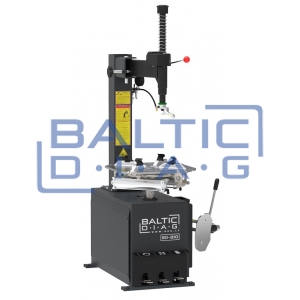

Semi-Automatic Tire Mounting Machine BD-810

Features:

• Steel Mounting Head: Ensures durability and is equipped with replaceable plastic covers to protect rims from scratches.
• Self-Centering Rim Clamps: Uses two pneumatic cylinders to securely and reliably lock rims in place.
• Removable Pedal Mechanism: Simplifies and speeds up servicing.
• Rotatable Mounting Arm: Swivels horizontally and features a 36 mm hexagonal shaft with a locking handle.
• Powerful Bead Breaker: Delivers up to 2700 kg of breaking force.
• Tire Inflation Gun with Manometer: For quick and convenient tire inflation and pressure checking.

Technical Specifications:

• Internal rim diameter: 12” – 24”
• External rim diameter: 10” – 22”
• Maximum wheel diameter: 960 mm
• Maximum wheel width: 3” – 15” (76 – 380 mm)
• Bead breaking force: 2700 kg (27000 N)
• Operating pressure: 8 – 10 bar
• Electric motor power: 1.1 kW
• Power supply: 230 V / 50 Hz / 1-phase

Standard Accessories:

• Bucket for tire mounting paste x 1 pc
• Tire mounting paste brush x 1 pc
• Plastic protection for mounting finger x 1 pc
• Plastic protection for bead breaker blade x 1 pc
• Plastic protection for clamps x 4 pcs
• Tire lever x 1 pc

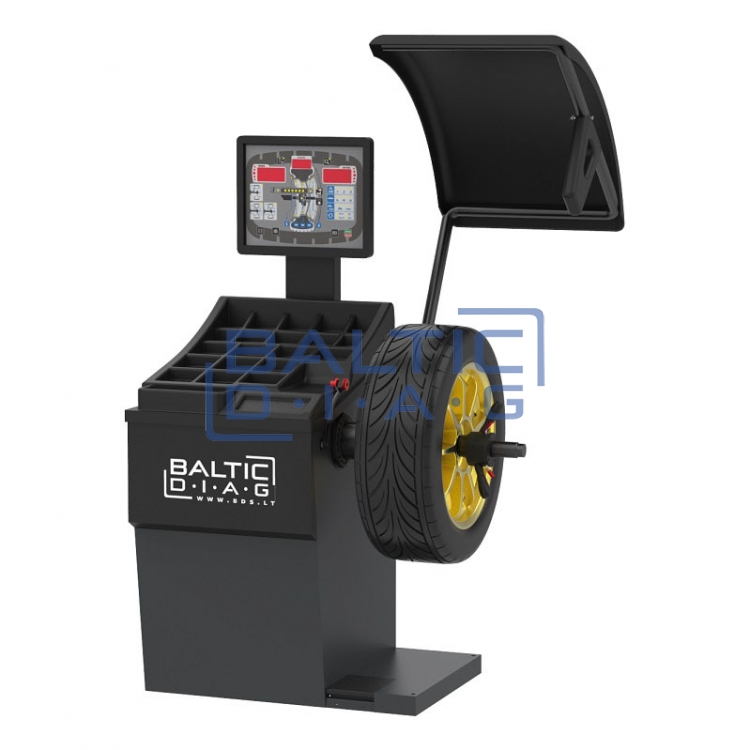

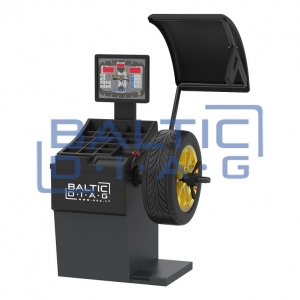

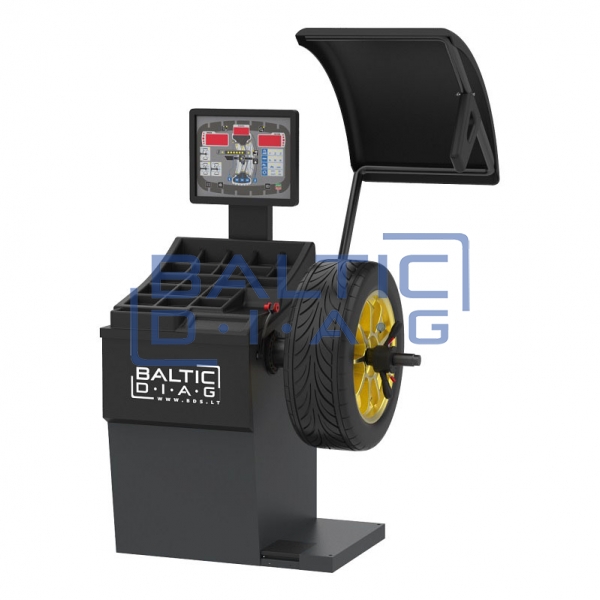

Automatic Wheel Balancing Machine BD-670

Features:

• Precise Imbalance Detection: Accuracy within ±1 g. Equipped with a laser pointer for highly precise imbalance location.
• Optimized Automatic Wheel Locking System: Automatically secures the wheel for accurate placement of balancing weights.
• Adjustable Laser and Imbalance Position: Allows switching from the 12 o'clock to the 6 o'clock position as needed.
• Calibration Options: Supports calibration of weights, spindle, and automatic measuring tools for the highest quality results.
• Settings Flexibility: Broad configuration and parameter adjustment options.
• 3D Automatic Wheel Parameter Measurement: Automatically measures rim width and distance. A highly accurate, calibration-free ruler and a special sonar detect and save the wheel width during balancing.
• Supports All Balancing Modes: Includes dynamic balancing, 3 static balancing modes, 7 ALU modes, 2 configurable EALU modes, and adjustable OPT function. Features two weight-hiding modes for better aesthetics.

Technical Specifications:

• Rim diameter: 10” – 32”
• Maximum wheel diameter: 1000 mm
• Wheel width: 1.5” – 25”
• Rotation speed during balancing: 150 RPM
• Maximum wheel weight: 70 kg
• Balancing accuracy: ± 1 g
• Electric motor power: 0.25 kW

Standard Accessories:

• Balancing cones of various sizes x 4 pcs
• Quick-release nut
• Special mirror for attaching adhesive weights
• 100 g calibration weight
• Pliers for working with weights
• Mounting adapter with rubber protection
• Calibration plate
