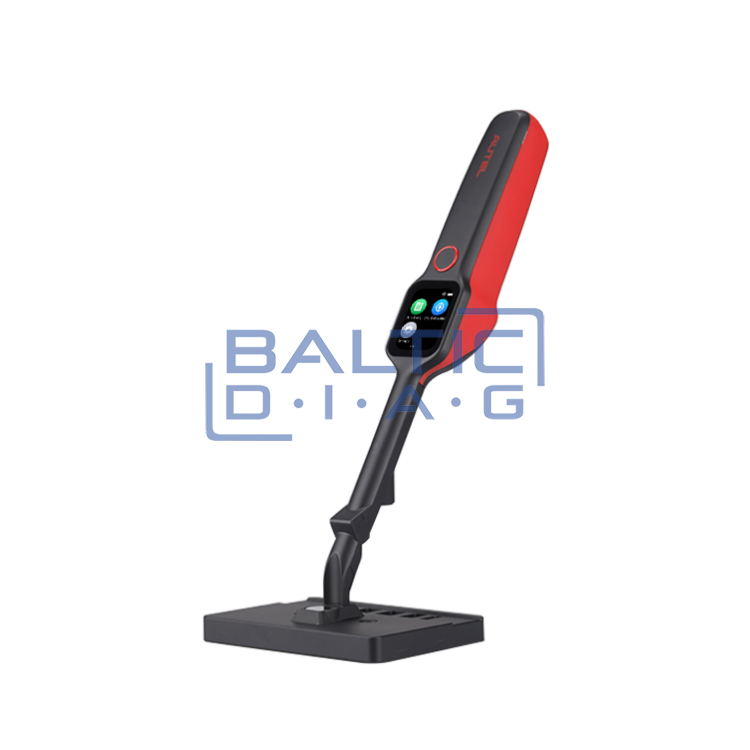

Tire depth and brake disc measuring device Autel MaxiTPMS TBE200

Tire depth and brake disc measuring device Autel MaxiTPMS TBE200

Manufacturer Autel (Italy), warranty 24 months.

MaxiTPMS TBE200 is a laser tester for tread depth and brake disc wear that allows users to quickly and accurately measure wear. Measure the brake disc wear without removing the tires. It features a 1.65-inch AMOLED touch screen that displays measurement data curves in real time. The TBE200 provides uneven wear analysis and detailed replacement and maintenance suggestions for quick tire service. The dual-chamber TBE200 allows users to document tire wear and damage and scan the tire identification number (TIN). Use the tool alone or with ITS600 to view and print detailed TPMS reports.

Laser measurement:

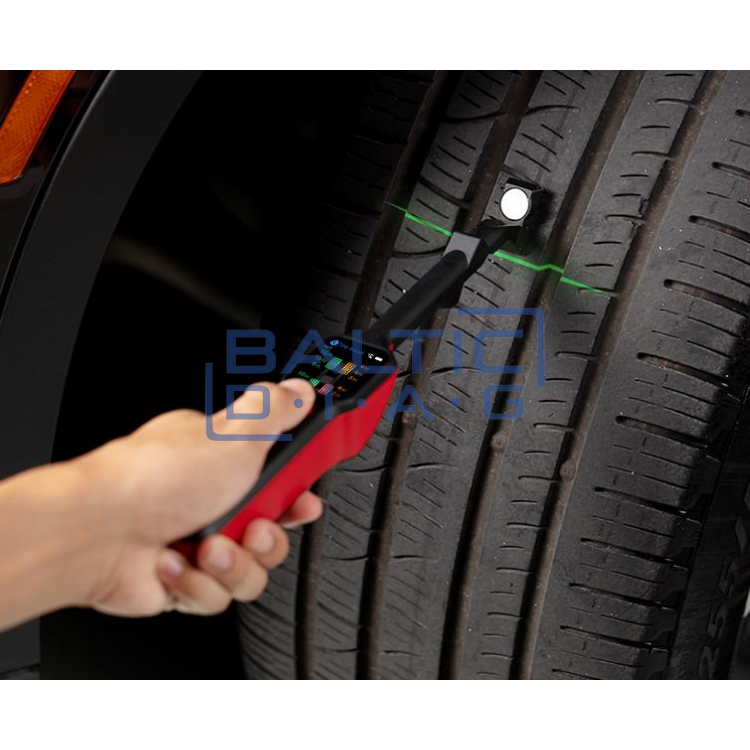

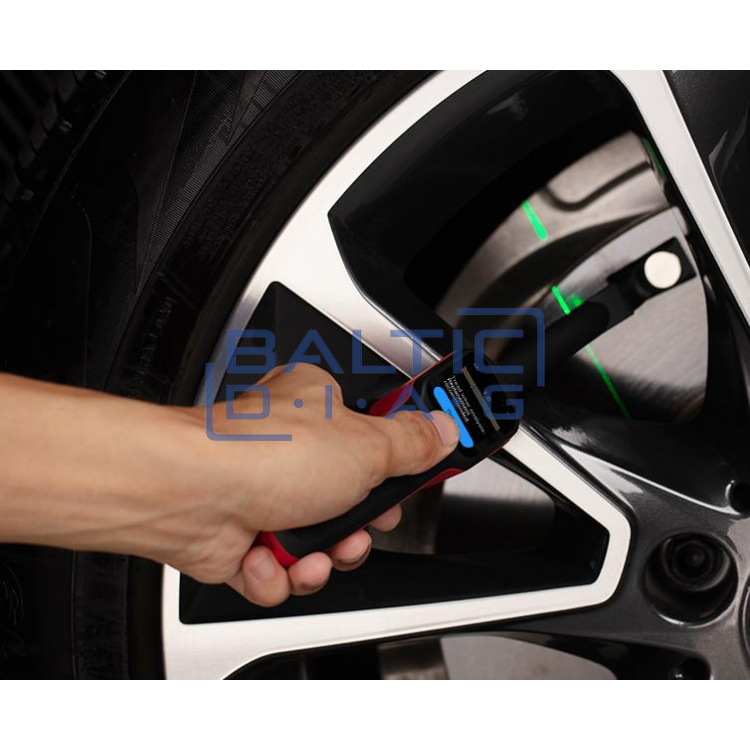

• Checking the tread depth and wear of the brake discs in one tool, no need to remove the wheel during measurement
• Laser measurement with an accuracy of 0.1 mm
• Measurement of total tread
• Quickly check tread depth and brake disc

Real analysis:

• Real-time measurement data on the touch screen
• Measurement data curves
• Uneven wear analysis
• Tire / brake disc tests on one tire
• Detailed replacement and maintenance suggestions (tire / brake disc replacement, tire rotation / adjustment)
• Scan DOT, tire expiration message
• Photographs tire wear and damage

Technical data:

• Processor: 4x ARM Cortex-A35 (1.5 GHz)
• Memory: 1 GB RAM LPDDR3 and 4 GB ROM
• Display: 1.65-inch AMOLED touch screen with 348 × 442 resolution
• Wi-Fi / USB 2.0, type C.
• Camera: CMOS WXGA, 1 megapixel and 8 megapixels, 30 frames per second
• Power and battery: 3.7 V / 3000 mAh 18650 lithium-ion battery
• Charges using a 5 V AC / DC power supply
• Battery life: ~ 8 hours
• Battery charging input: 5 V / 1.5 A
• Power consumption: 300 mA (AMOLED on, default brightness) @ 3.7 V
• Operating temperature: -10 to 45 ° C
• Storage temperature: -20 to 60 ° C
• Dimensions: 283.0mm x 39.0mm x 33.5mm
• Weight: 188 g

Equipment:

• Basic measuring instruments
• Calibration table
• Power adapter
• Type C USB cable
• User Guide
• Suitcase
