Laser welding device, WCD-1500 Laser Pro

Laser welding device, WCD-1500 Laser Pro

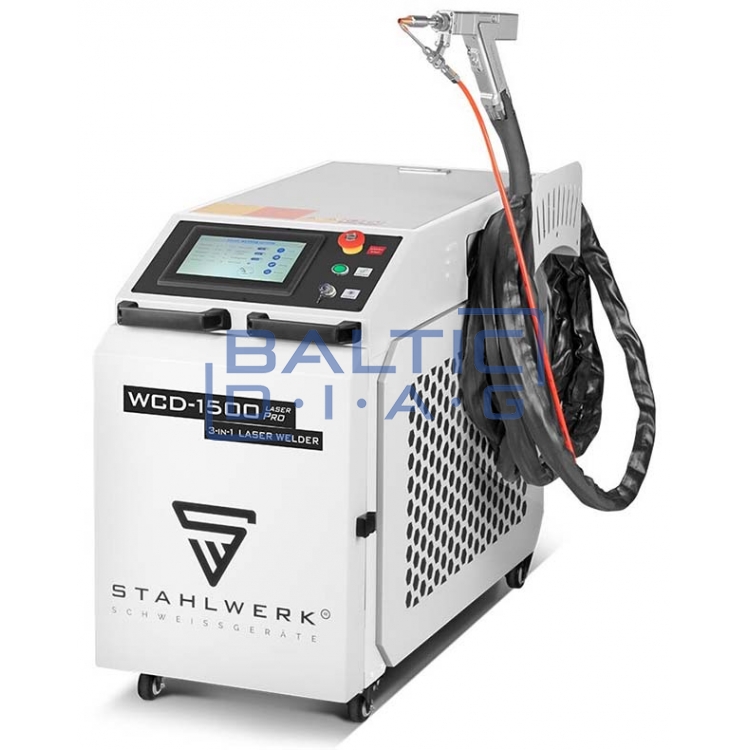

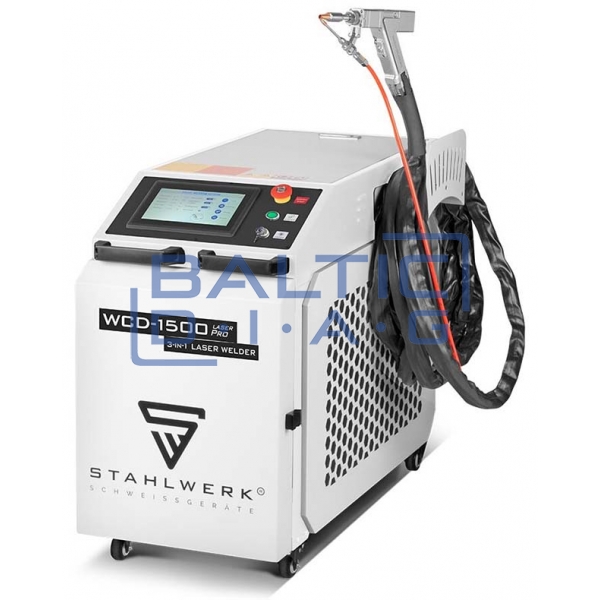

3 in 1 welding machine WCD-1500 Laser Pro with a power of 1500 W and is ideal for ultra-precise welding, cutting and rust removal. Laser welding on equipment from equipment manufacturer Stahlwerk ensures precise welds with low thermal distortion, even at high welding speeds, by using concentrated energy delivery to the workpiece. In this way, excellent work results can be achieved in a short time. The handheld laser is equipped with the latest generation fiber laser technology and can withstand very high workloads. The integrated water cooling system allows you to continuously extract maximum power. The universal combination welder can cut stainless steel up to 4 mm thick (metal up to 4 mm; aluminum up to 3 mm) and has interchangeable rust removal cuts from 10 to 20 mm. Laser welding torch - ergonomically shaped and ensures comfortable handling even during longer work cycles.

Features:

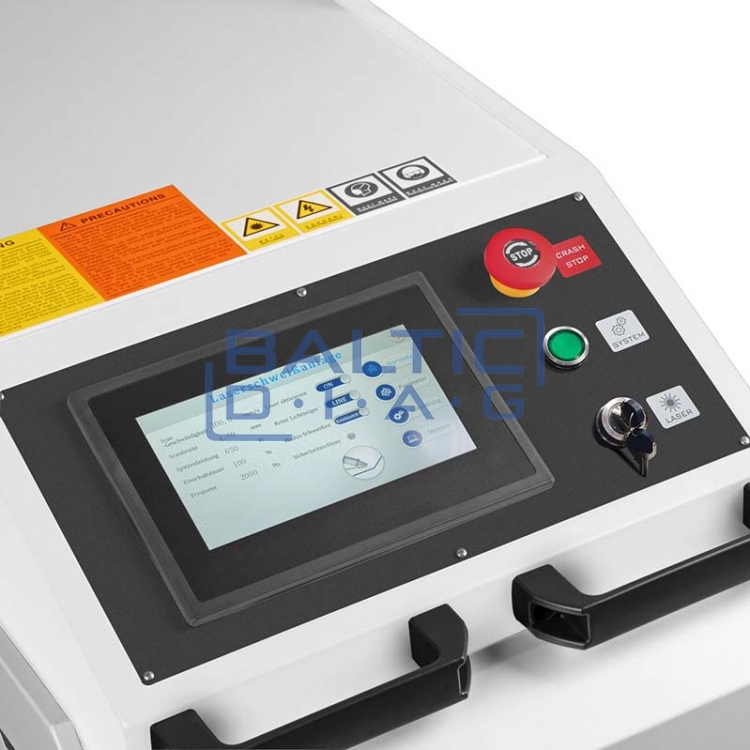

• The desired settings can be quickly selected on the clearly arranged control screen.

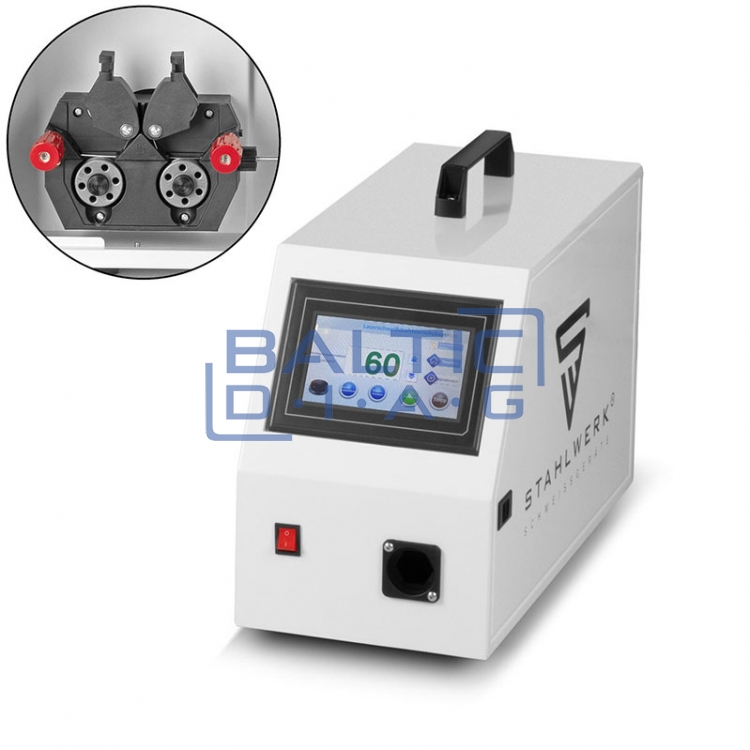

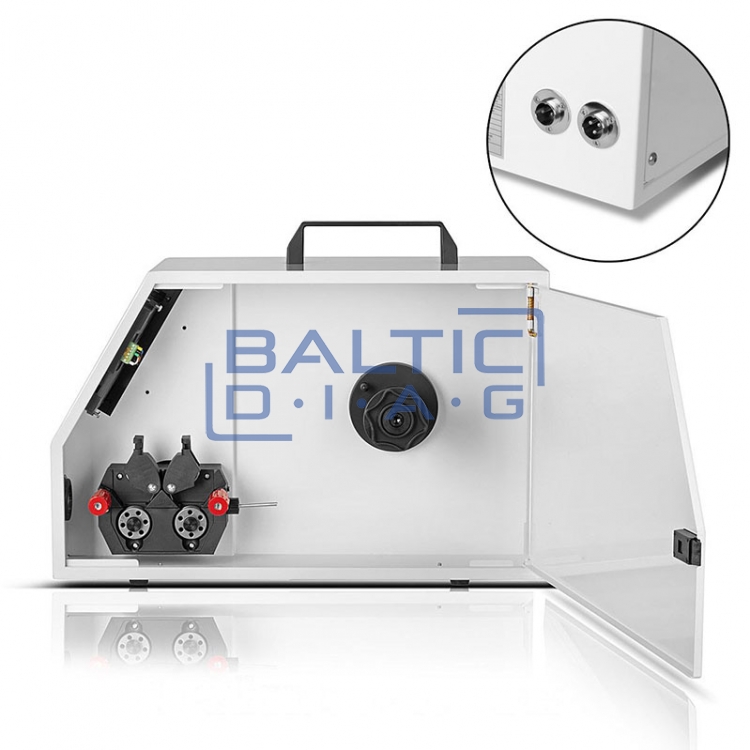

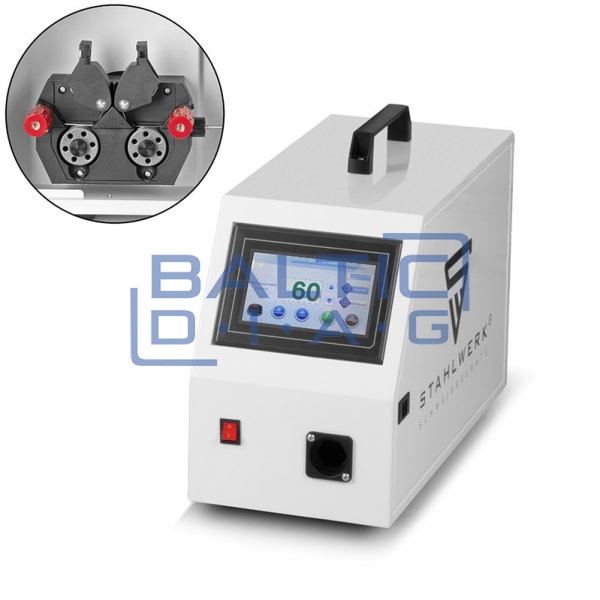

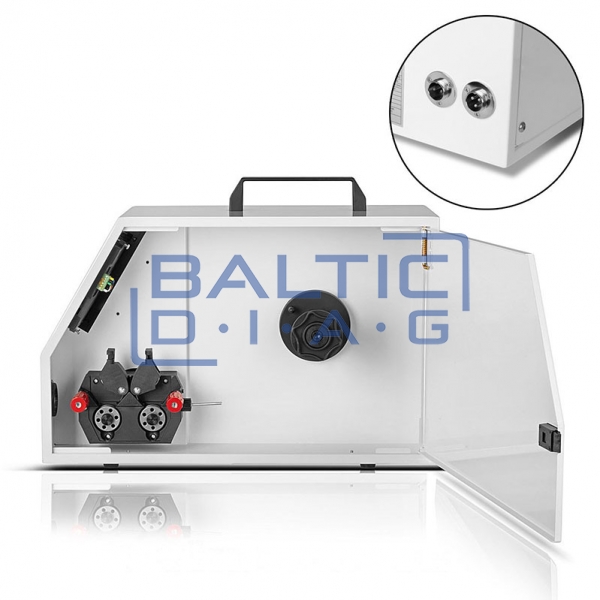

• The device has a separate synergistic wire feed mechanism with a 4-roller drive, memory of the performed settings, intelligent cooling and protection against overheating.
• The laser welding machine has laser class 4, so safety glasses must be used when working with it. Also, we recommend using additional protective measures. These include protective clothing, a protective mask with appropriate breathing filters. All necessary safety rules must be followed.
• A practical, manual laser cleaning device with a supply voltage of 230 V.
• Thanks to its lightweight and compact design, the multifunctional laser welding machine is ideal for mobile use in industry, commerce and personal use.
• Welding machine - sold complete with a wide range of accessories and known with a 2-year equipment warranty.

Note:

We do not recommend using the device in residential premises where electricity is supplied from a public, low-voltage electricity system. It can be difficult to ensure electromagnetic compatibility in these rooms, both due to electrical conductivity and laser beam interference.

Technical parameters:

• Model: WCD-1500 Laser Pro
• Laser type: fiber optic
• Laser class: 4
• Power output: 1500W
• Supply voltage: 230 V
• Frequency: 50 | 60 Hz
• Wavelength: 1080 nm ± 3 nm
• Maximum cutting depth: stainless steel: 4 mm | metal: 4 mm | Aluminum: 3 mm
• Cleaning cuts (rust removal): 10 – 20 mm

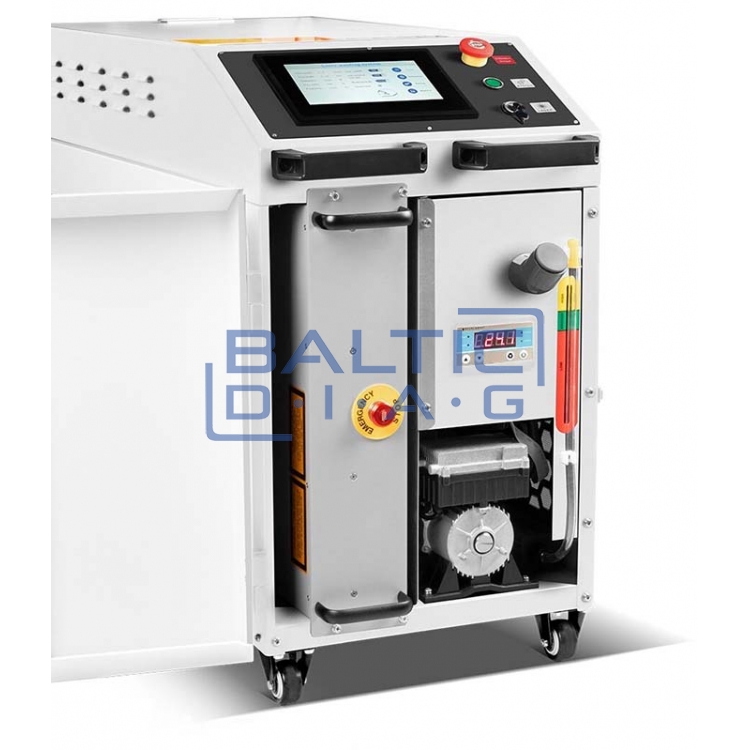

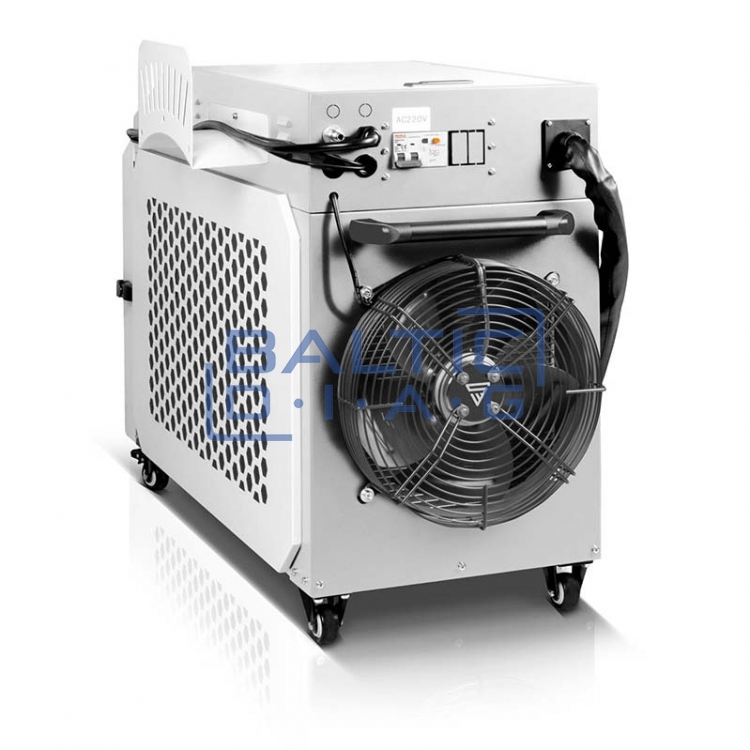

• Coolant system: 1500 W water cooler
• Welding wire feed wheels: 0.8; 1.0; 1.2; 1.6 mm
• Hose length: 10 mm
• Operating temperature: 10 °C - 40 °C
• Dimensions: 980 x 420 x 712 mm
• Weight: 115 kg
• Wire holder: 50mm core

Complete set:

• Laser welding device WCD-1500 Laser Pro

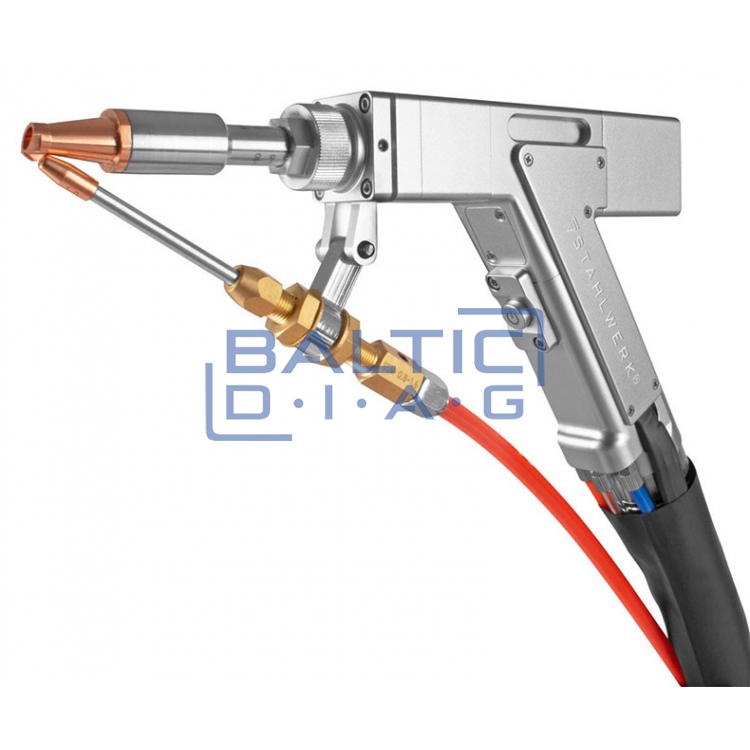

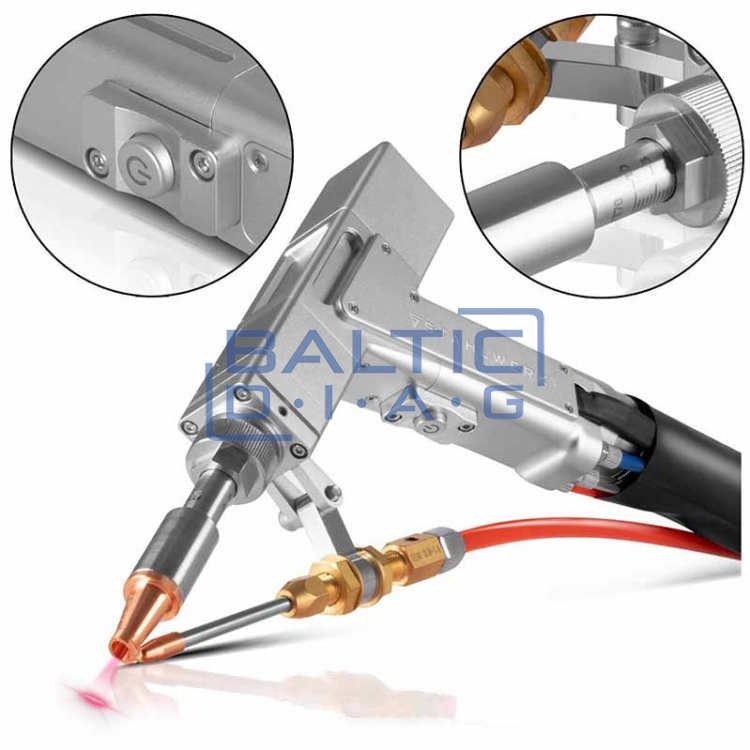

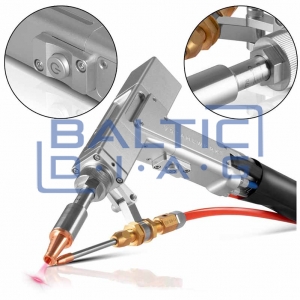

• Laser welding gun
• Contact tips: 0.8; 1.0; 1.2; 1.6mm (1.2mm tip mounted)

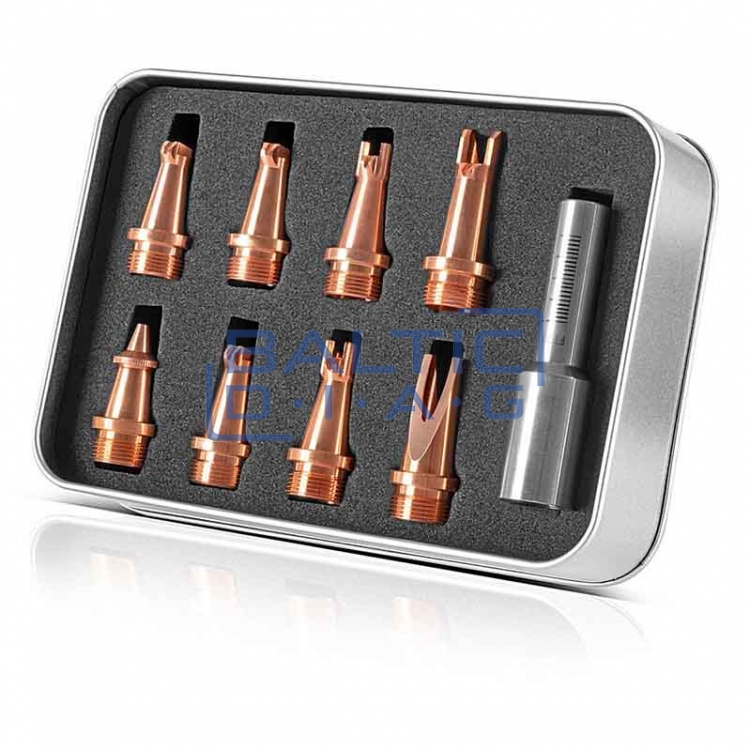

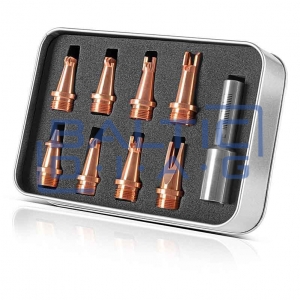

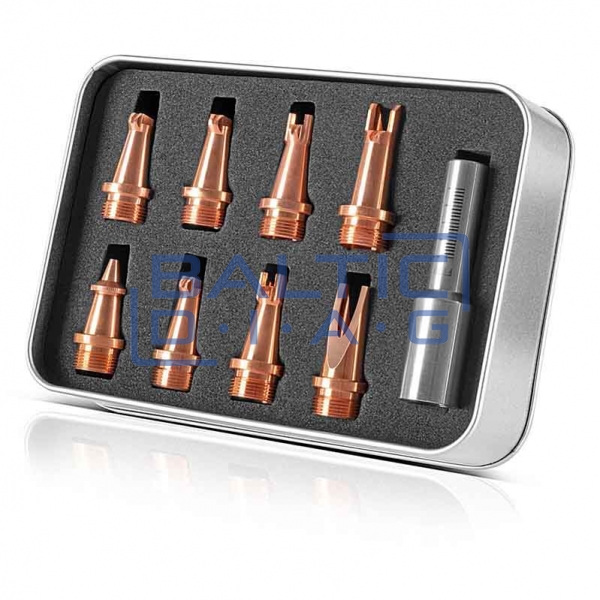

• 9 spec. set of nozzles

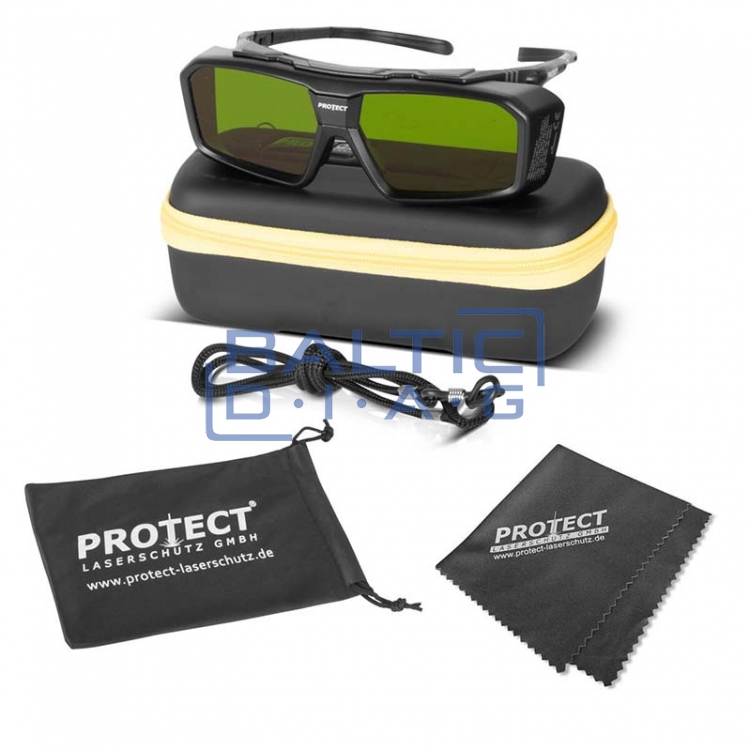

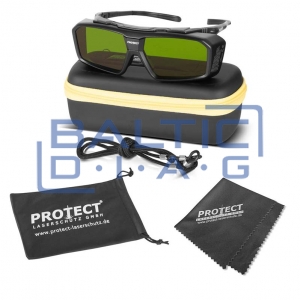

• Safety glasses
• Wire feed wheels 0.8; 1.0; 1.2; 1.6 mm
• 5 pairs of interchangeable lenses x 2 pcs.
• Gas connection hose
• Spanners x 2 pcs.
• Carbon fiber core 3 m
