AC Hydraulic GD150-2M Double Pneumatic Hydraulic pit jack
AC Hydraulic GD150-2M Double Pneumatic Hydraulic pit jack
AC Hydraulic GD150-2M Double Pneumatic Hydraulic pit jack
AC Hydraulic GD150-2M Double Pneumatic Hydraulic pit jack

AC Hydraulic GD150-2M Double Pneumatic Hydraulic pit jack

  • SKU: BD13391
7,095.00 €

AC-HYDRAULIC AC-HYDRAULIC
Prices shown include tax
Add to Cart

Send Message

Description

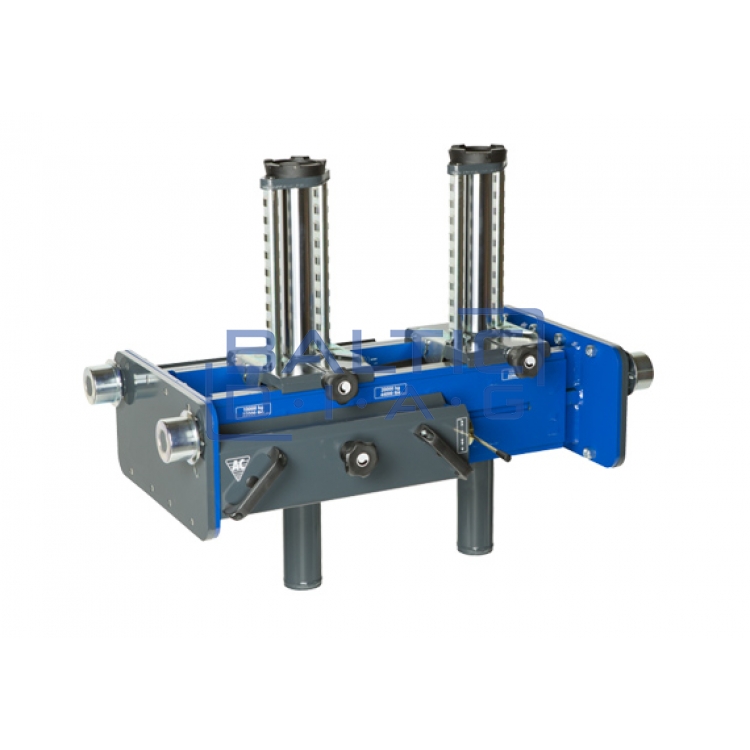

AC Hydraulic GD150-2M Double Pneumatic Hydraulic pit jack


Pneumatic-hydraulic two-cylinder pit lift for trucks with automatic mechanical safety lock

Description:
- Fast and accurate pneumatic-hydraulic axle hoist with high-speed cylinder
- 2 individually controlled cylinders for safe and even lifting
- Simple modern design with control panel and ergonomic working height
- Can be adapted for use with all trucks due to its adjustable body
- The height of the casing is adjusted and adjusted according to the customer's requirements
- Sliding cylinders
- Wide range of applications: transverse beam, support bridge and other similar applications
- Supplied with 2 x 100 mm extensions
- Manufacturer: Denmark
- Warranty: 3 years

Technical parameters:

- Lifting capacity: 15 tonnes
- Stroke of pistons: 420 mm
- Minimum height: 560 mm
- Maximum height: 945 mm
- Lift length: 590-890 / 850-1150 / 1110-1410 mm
- Lift width: 649 mm
- Lifting points: 200 - 1160 mm
- Required compressed air pressure: 8 - 12 bar
- Required compressed air flow: 350 L / min
- Weight: 220 kg
