Telescopic and electronic body gauge with accessories Blackhawk Tech-Tram 400 - 2665 mm MGE10.
Telescopic and electronic body gauge with accessories Blackhawk Tech-Tram 400 - 2665 mm MGE10.
TOP -11 %

Telescopic and electronic body gauge with accessories Blackhawk Tech-Tram 400 - 2665 mm MGE10.

  • SKU: BD11270
2,497.44 €

2,799.00 €
Prices shown include tax

Send Message

Description

Telescopic and electronic body gauge with accessories Blackhawk Tech-Tram 400 - 2665 mm MGE10.


Manufacturer Blackhawk, USA; Warranty 12 months


The equipment is delivered immediately with a license!


Description:

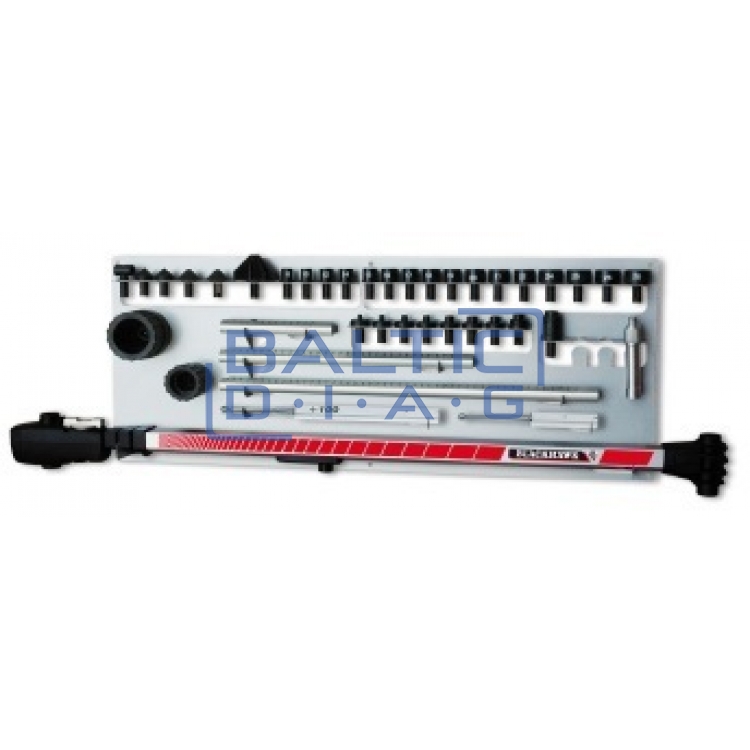

Tech Tram is an electronic measuring tool designed to measure and check the dimensional accuracy of a car body.

The tool is equipped with:

- Tech Tram measuring tool;

- Reference rods;

- Height measuring rods;

- Measuring sockets and heads;

- Box for storage

- Software that records the measurement results from the tool

- Access to a car dimensional database with the ability to print personalized reports


The measuring arm and its accessories and measuring heads together with the software and database allow you to measure lengths in two dimensions. It is also possible to compare the symmetry between the heights on the left and right in a very efficient way.


More about included accessories:


- Height bars: The measuring equipment is equipped with two height bars of two different heights.

- Magnetic connector Ø35 and Ø60 mm in diameter: This connector is designed to fit most car models on the market.

- Height measuring rods: 3 rods. The length of the rod is selected according to the database and must allow the measurement of specific readings when the rod is fixed on the measuring arm.

- Spirit level: a spirit level mounted on the measuring head for comparing height deviations.

- Measuring heads, sockets: 5 measuring heads included (2 x Ø25 mm, 2x Ø35 mm and 1 x Ø60 mm); 9 sockets, sizes from 10 to 26 mm; 9 M201 Adapters 6-18; 1 90 ° holder. The heads and sockets fit on the ends of the measuring rods.
