Synergic welding device MIG / MAG, T1 GYS Auto with accessories

Synergic welding device MIG / MAG, T1 GYS Auto with accessories

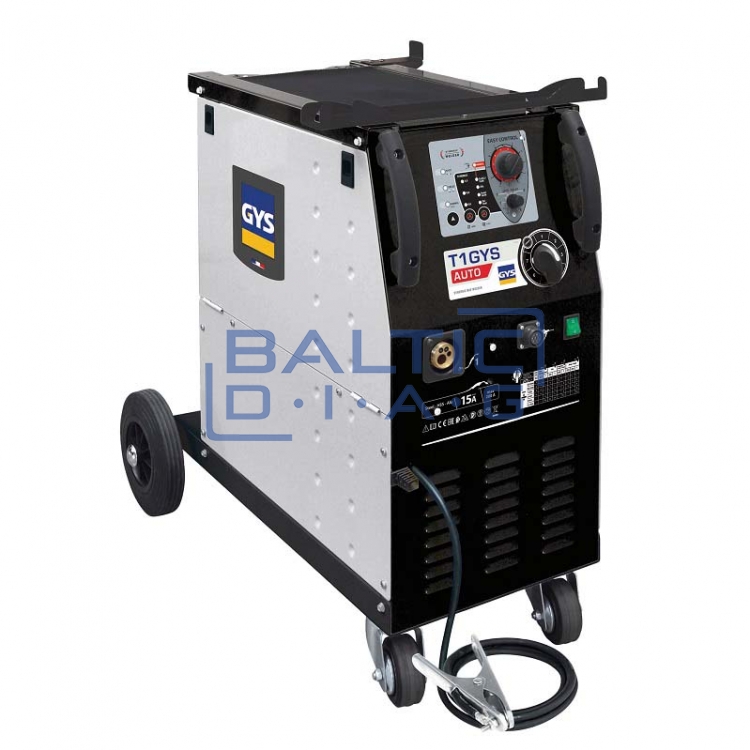

This T1 GYS AUTO is a synergic, three-phase MIG-MAG welding machine with a welding torch connection. With this unit you will be able to comfortably weld steel, stainless steel, aluminum and perform MIG welding on high strength metals using CuSi3 and CuAl8 wires (great for bodywork).

Synergistic mode:

The device will automatically select the most optimal wire feed speed as soon as you enter the following data:

• Wire type
• Wire diameter
• Welding current

Welding torch with coil:

• This type of torch is ideal for auto body repair work, working with aluminum, AlSi5 and AlSi12 wires

Four motorized wire feed wheels:

• Perfectly compatible with wire spools of both diameters, Ø 200; 300 mm, max. 15 kg

The set welding parameters are saved:

• Each burner has an automatic saving of the set parameters, so they can be restored at any time using the Last Used command from the device arts function.

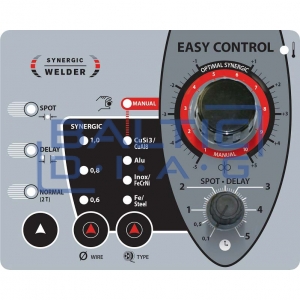

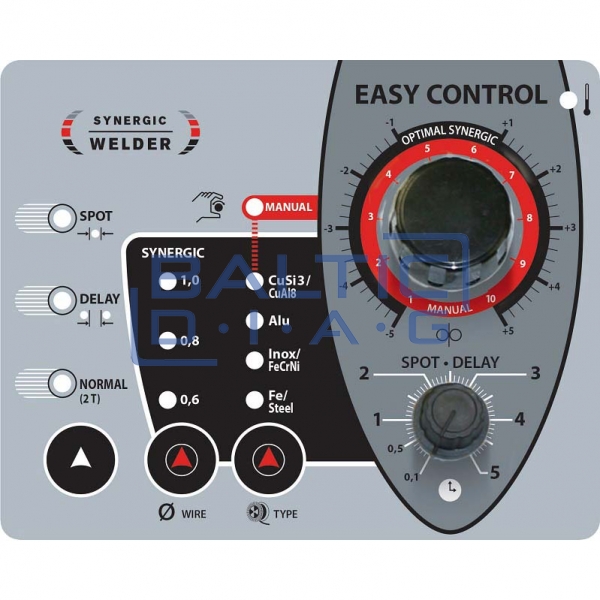

3 welding modes:

• Standard (2T)
• Dotted
• With a delay

The possibility of matching with additional accessories:

The T1 GYS AUTO welding machine can be compatible with a torch equipped with a wire spool. This motorized torch is compatible with 100 mm diameter aluminum, stainless steel, copper and plain steel wires with a diameter of Ø 0.8 mm

• Ideal for soft wires such as AlSi5 or AlSi12 (recommended for car body repair work
• Easy and simple to use: the wire feed speed can be adjusted directly from the torch

Technical parameters:

• Supply voltage: 230 / 400 V / 3 fz / 50 - 60 Hz
• Electric current: 16 / 10 A
• Welding current: 15 - 200 A
• Welding wire: 0.6 - 1.0 mm
• Supported welding wire coils: Ø 100 / 200 / 300 mm
• Motorized wire feed mechanism
• Duty cycle current at 60% (EN60974-1): 110 A
• Dimensions: 470 x 770 x 790 mm
• Weight: 55 kg
• Required electrical power from the generator (± 15%): 5 kVA

Complete set:

• Tourch 150 A - 3 years
• Earth clamp 200 A - 3 m
• It is possible to additionally purchase a Spool Gun
