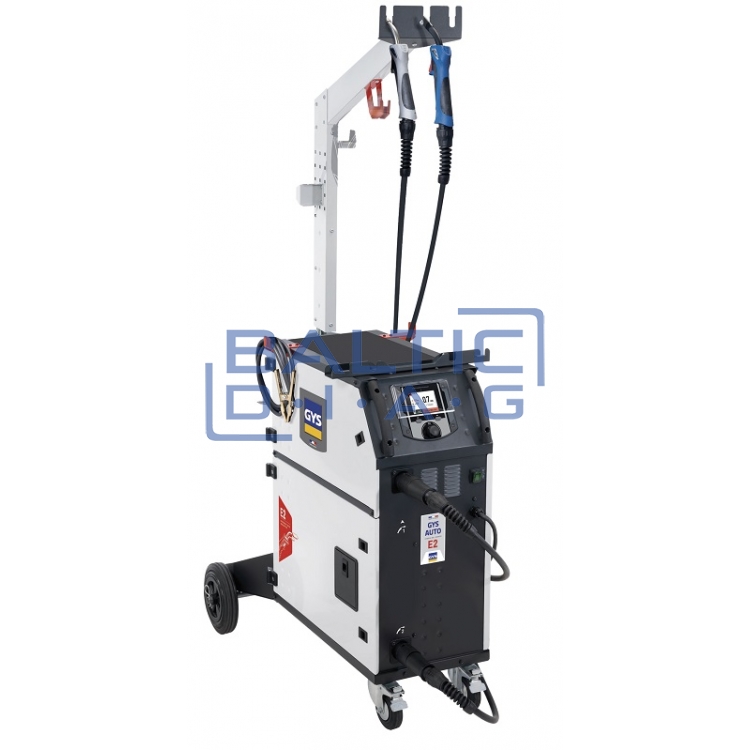

Synergic welding device MIG / MAG, E2 GYS Auto with accessories

Synergic welding device MIG / MAG, E2 GYS Auto with accessories

This welding device E2 GYS Auto is a single-phase, 200 A synergic MIG / MAG welding machine with integrated 2 different wire feeding systems and is specially designed for car body repair and production workshops. The welding device has an integrated color and intuitive control screen, which conveys one of the best experiences of adjusting welding parameters, and also ensures excellent welding performance in steel and aluminum, even with extremely thin materials. Thanks to the synergic technology used in this welding device, you will be able to work with CuSi3, CuAl8 wires as well.

MIG/MAG welding:

2 individual wire feeding mechanisms ensure the versatility of the equipment, allowing the use of 2 different wires and wire coils of different dimensions.

• Steel and stainless steel wire: from Ø 0.6 mm to 1.0 mm
• Aluminum wire: from Ø 0.8 mm to 1.2 mm (Ø 1.2 mm, for light welding)
• CuSi and CuAl wire: from Ø 0.8 mm to 1.0 mm

Intelligence:

• Specific type of synergy: for steel, AlSi, AlMg, CuSi3, CuAl8, CrNi
• The new, more convenient 3.5" HMI is designed for body shops
• Full upgrade of welder and synergy function via USB
• Database of up to 200 welding programs, easy to select for repetitive tasks
• The mobility function allows you to save the welding parameters of the performed work, load them on a USB stick and move them to other devices.

Integrated wire feed mechanism:

• 2 motorized, 4-wheel wire feed mechanisms that ensure even and smooth wire feeding.
• Compatible with three coils of welding wire at the same time: Ø 200 / 300 mm.
• European torch connector that ensures quick and easy torch disconnection or connection.

2 screen modes:

Simple - simplified parameter display suitable for most users while maintaining excellent welding results.

• 2 welding modes: welding and spot welding
• 4 parameters: material to be welded (synergy), wire diameter, thickness and welding time

Expert - detailed parameter mapping, perfect for advanced users:

• Welding modes: synergic or manual
• Excitation operation: 2T or 4T
• Welding modes: spot and spot with delay
• The selection of the main parameters is displayed on the control screen
• Full adjustment of the welding cycle: welding arc length, delay, premature gas supply and etc.

Ergonomics:

• Reinforced wheels for greater stability and maneuverability
• Compatible with two gas cylinders - 4 m3 (20 l)
• Cover and storage space for various accessories of the welding machine
• Automatic detection of the used torch, when the torch is moved, special welding gas is selected for it.
• It is equipped with a holder for torches and a welding helmet

Technical parameters:

• Supply voltage: 230 V / 1 phase / 50 hz
• Electric current: 16 A
• Welding current: 25 - 200 A
• Available welding wire thicknesses (with gas): Ø 0.6 – 1.0 mm
• Supported welding wire coils: Ø 200 / 300 mm
• Wire feed control: electronic
• Wire feeding motor power: 50 W
• Wire feed speed: 1 - 15 m/min
• Original wire feed wheels: 0.6; 0.8; 1.0
• Duty cycle current at 60% load: 145 A
• Duty cycle current at 100% load: 130 A
• Welding voltage: 63.9V
• Dimensions: 875 x 630 x 900 mm
• Weight: 58.3 kg
• Protection class: IP21
• Power cable length: 6.25 meters
