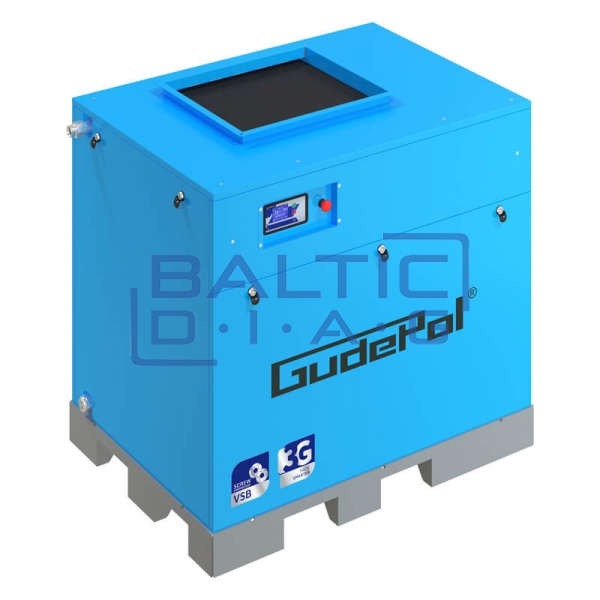

Screw compressor Gudepol VSB11-3G 30/10

Screw compressor Gudepol VSB11-3G 30/10

The VSB compressor series is an extension of the technical concept that has been implemented in the NKSB series compressors. We have expanded the compressor maintenance system through a control panel that includes more detailed information transfer and a wider range of setting changes. Its unique feature is the ability to connect two compressors in a cascade. Due to the above features combined with a reliable design, VSB compressors are the best investment choice in their class of compressors.

The VSB compressor is equipped with a microprocessor panel of the new generation control system L26S. This solution allows easy and legible operation of the device, the system automatically detects malfunctions indicated by the type of fault displayed. If there is a risk of damaging the compressor, it automatically shuts off the unit. Informs the user about the operating mode of the compressor.

The clear and detailed screen provides information on:

arrow operating pressure

arrow device failure according to detailed alarm code

number of arrows total hours worked and load

in time for the roadworthiness test

the arrow is stored in the fault memory.

Additional benefits:

arrows L26S control panel has alphanumeric LCD display,

Compressor operation messages are transmitted in 8 languages ​​(Polish, English, German, French, Italian, Spanish, Turkish, Portuguese),

the arrow clock integrated allows you to set 3 work schedules for one day a week,

Arrowsport 485 (MODBUS RTU) allows you to connect the compressor to the network of monitored devices or Gudepol Internet Cloud,

arrow automatic start of the compressor in the event of a power failure,

the ability of the arrows to connect the compressor to the L26S cascade (main / slave / multicompressor).

Reliable drive mechanism for stable compressor operation. The compressor maintains the highest performance throughout the maintenance range. The electric motor meets all European quality standards, its indisputable characteristics are the following:

excellent reliability,

quiet operation, no vibration,

check for environmentally friendly production technology

Modern automation based on the highest quality components protects the compressor from:

check mains voltage,

power phase loss,

check the wrong direction of engine rotation,

electric motor or radiator fan load,

check that the oil temperature is too high,

check that the oil temperature is too low,

check that the non-startable screw module is started,

By installing an electronic pressure transducer, the operating pressure can be precisely selected on the control panel.

Highly efficient, dual-function cooler that ensures optimal working conditions in the most difficult compressor operating conditions. This allows low air temperatures to be reached in the pneumatic network. It has a fan controlled by a control panel, depending on the compressor load. High temperature hydraulic hoses are used to connect the cooler to the module.

The housing of the VSB screw compressor is a closed shape, made of a very precise, compact design. The sound insulation panels installed inside the housing, together with the structural layout of the compressor, made it possible to achieve a noise barrier of 68 [dBA], which is one of the best results for compressors in this class.

Technical parameters:

Version - 3G

Efficiency - 4800 l/min

Capacity - 2880 m3/ h

Maximum pressure - 10 bar

Engine power - 37 kW

Give energy. power  - 400 / 50Hz V

Noise - 70 dB

Connector- 1-1 / 4"

Size - 137x98x124 cm
