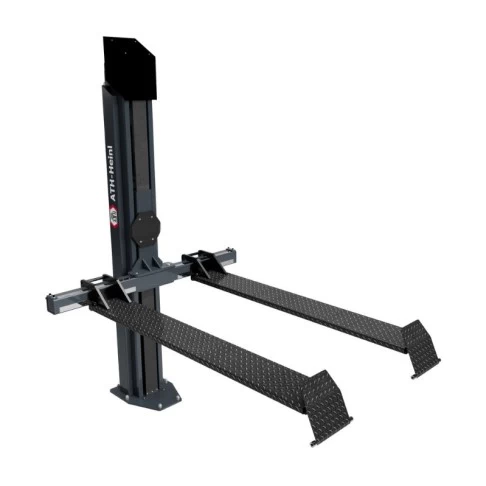

Electro-hydraulic single column lift ATH-Single Lift 12PL

Electro-hydraulic single column lift ATH-Single Lift 12PL
Electro-hydraulic single column lift ATH-Single Lift 12PL
Electro-hydraulic single column lift ATH-Single Lift 12PL
Electro-hydraulic single column lift ATH-Single Lift 12PL
Electro-hydraulic single column lift ATH-Single Lift 12PL
Electro-hydraulic single column lift ATH-Single Lift 12PL
Electro-hydraulic single column lift ATH-Single Lift 12PL
Electro-hydraulic single column lift ATH-Single Lift 12PL
Electro-hydraulic single column lift ATH-Single Lift 12PL
Electro-hydraulic single column lift ATH-Single Lift 12PL
Electro-hydraulic single column lift ATH-Single Lift 12PL
Pre-order
3,932.50€
Ex Tax: 3,250.00€
Prices include VAT
Want to buy or learn more?

Fill out the inquiry form

High-quality and robust electrohydraulic single-column lift designed for stationary use. Suitable for repairing ATVs, lawnmowers, and small tractors.

Fuse protection 3C16A
Oil volume 10.5 l
Motor power 3.0 kW
Power supply 3 / 400V / 50Hz
Lifting and lowering time ~ 20 sec
Required concrete grade C 25/30
Base depth without floor covering 200 mm

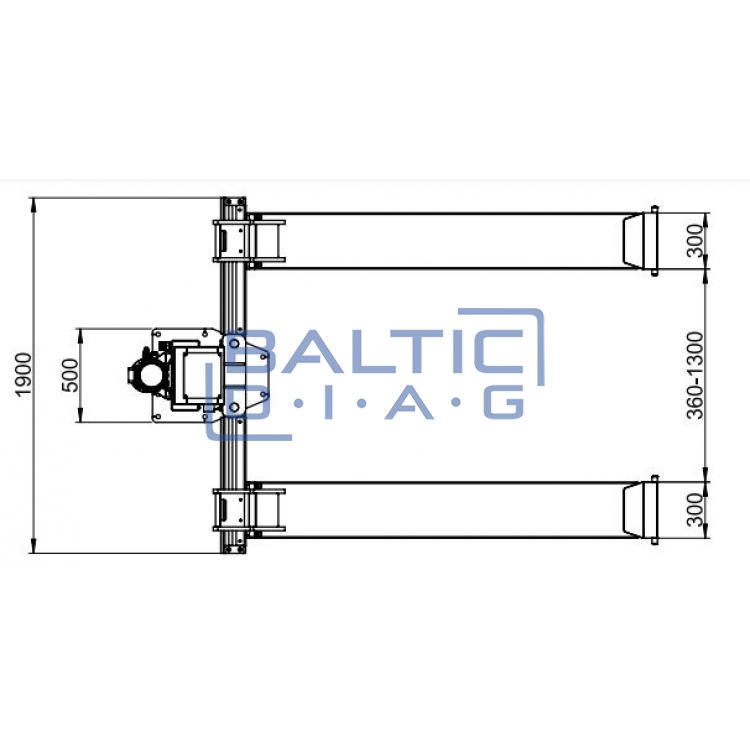

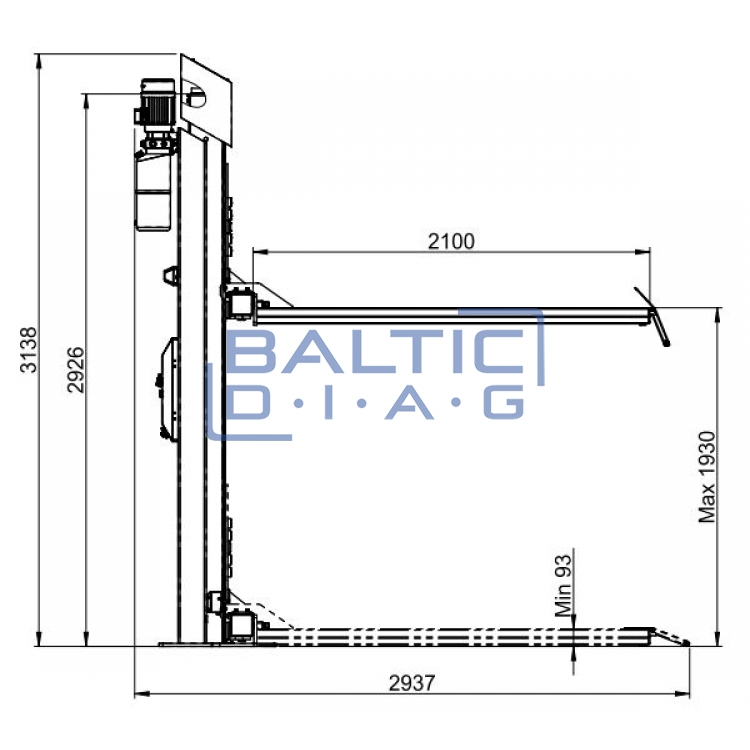

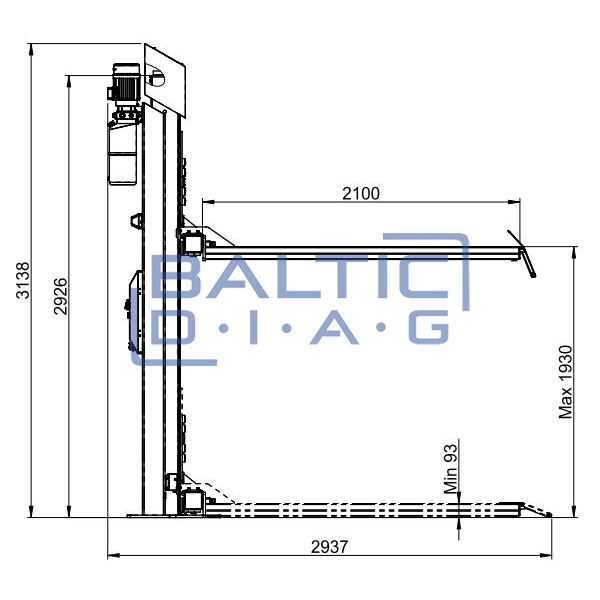

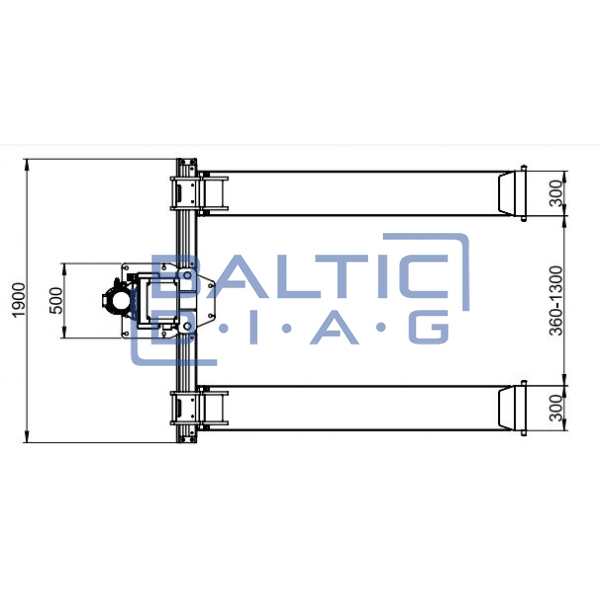

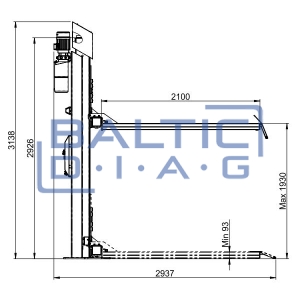

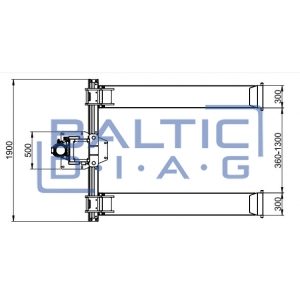

Technical Specifications
Total length I mm 2937
Lifting capacity I kg 1200
Lifting height I mm 1930
Overall height I mm 3138
Total width I mm 1900
Power supply I V 400

Electrohydraulic lift with fast lifting and adjustable lowering mechanism

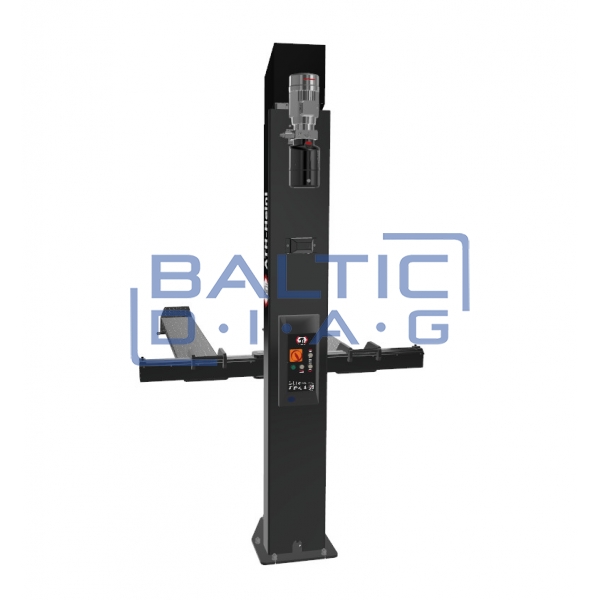

Central control panel with additional accessories (230V / 12V sockets and compressed air connection)
For stationary use with reinforced column and platforms
Electromagnetic lock control when raising and lowering platforms
Safety locks allowing load fixation
Multifunctional adaptability with sliding and long platforms and additional wheel forks
