Power measurement stand for tractors and agricultural machinery PT 170 SE

Power measurement stand for tractors and agricultural machinery PT 170 SE

Country of Origin: Germany, warranty period – 24 months

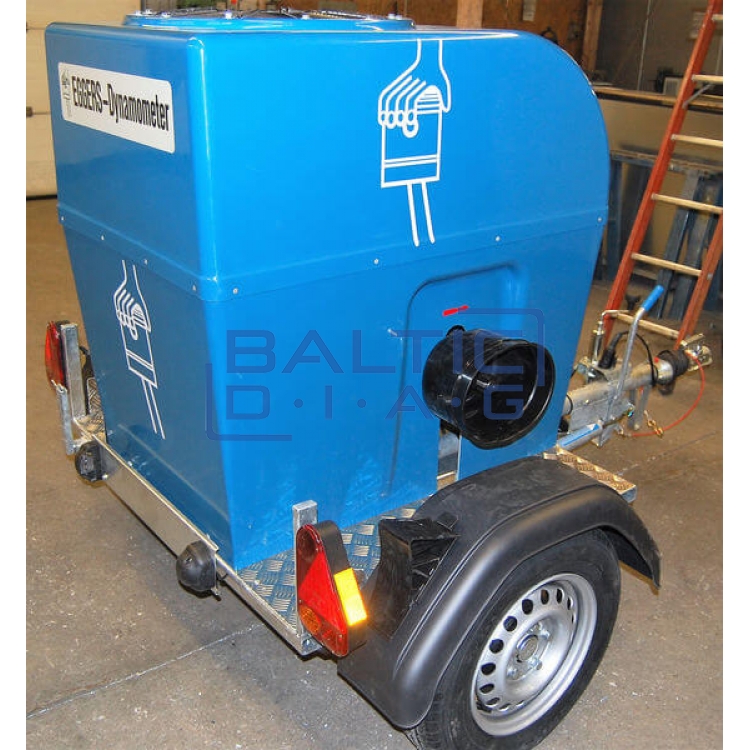

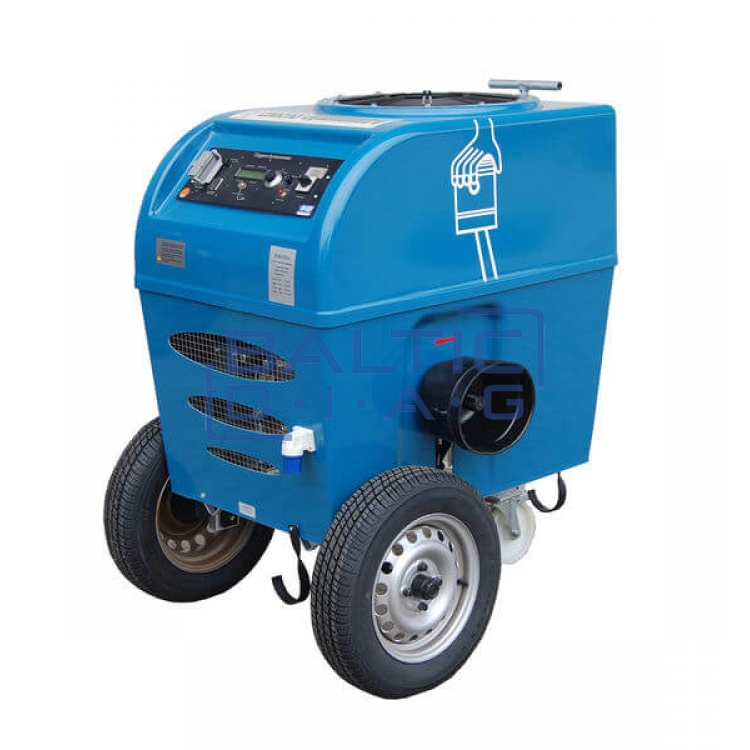

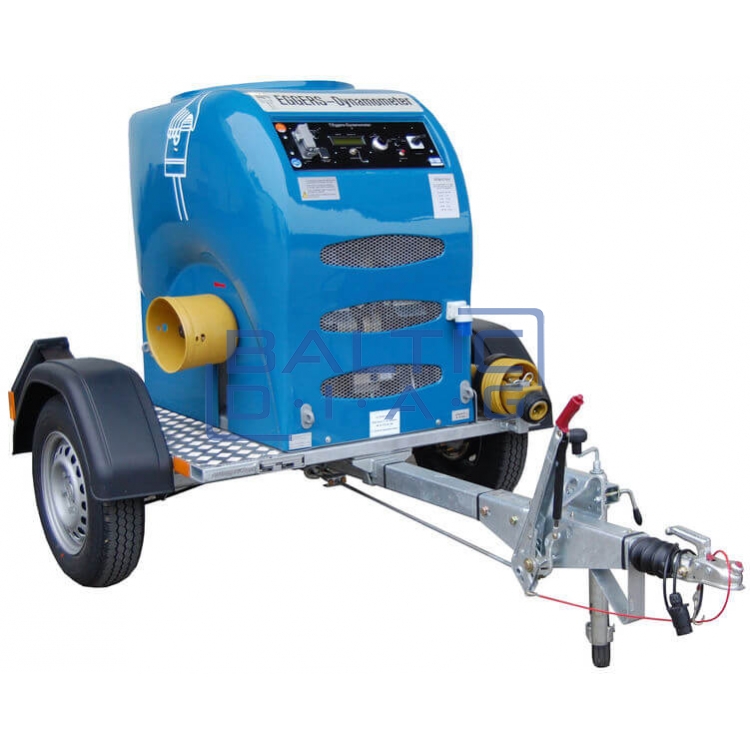

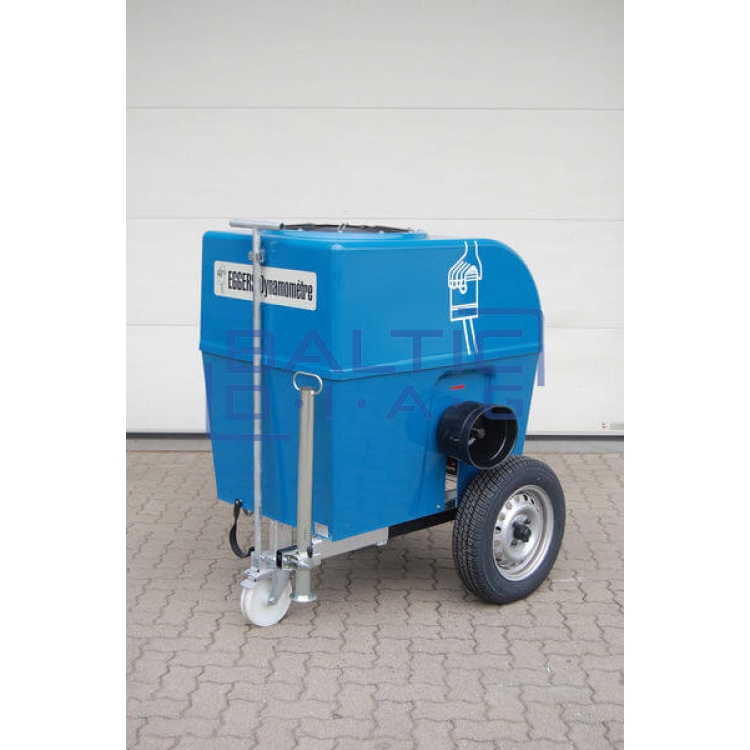

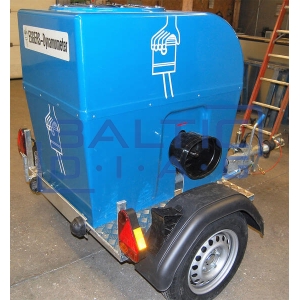

The PT 170 E / SE power measurement stand is designed for measuring the power, torque, and rotational speed of tractors and agricultural machinery. Its compact design allows the device to be used even in tight workspaces. The power measurement stand is available as a mobile workshop version (PT 170 E) or mounted on a chassis suitable for road use at speeds up to 80 km/h (PT 170 SE). With a performance range of 300 kW for quick tests and 170 kW for full-load curves, this device is perfectly suited for most tractors on the market.

Functions:

• Accurate measurement of power, torque, and rotational speed (<1% error margin)
• Contactless electromagnetic brake (maintenance-free)
• Air cooling using a high-performance fan (airflow up to 8500 m³/h)

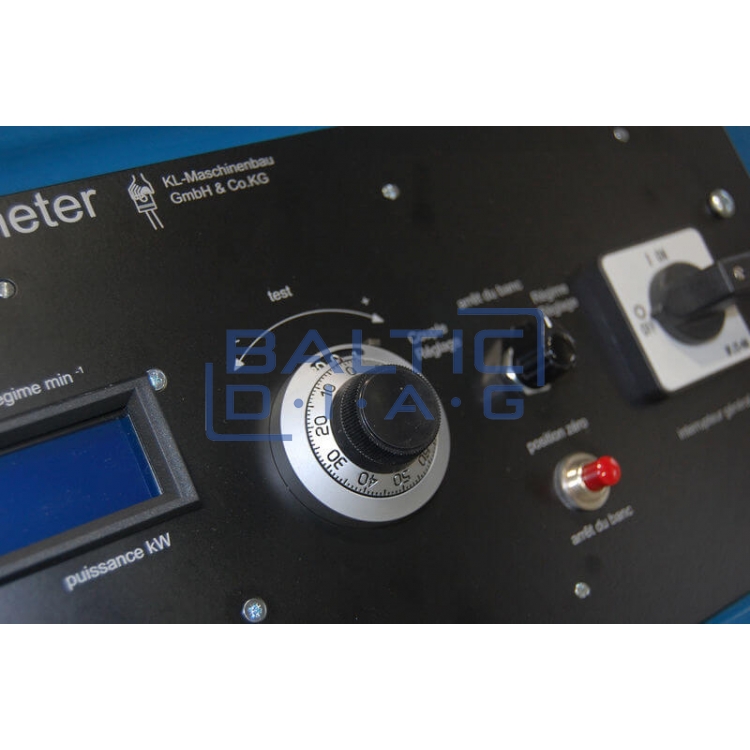

• Digital display showing RPM, torque, and power (kW, HP)
• Ability to perform measurements in both rotational directions
• Mobility with the road version or suitability for workshop use
• Technical Specifications:
• Maximum Power: 300 kW (1 min), 275 kW (2 min), 170 kW full-load curve
• Maximum Torque: 3600 Nm
• Maximum Rotational Speed: 1300 rpm (optionally up to 3600 rpm)
• Precision: <1%
• Cooling: Air cooling with a high-performance electric fan (8500 m³/h)
• Measurement Range (at 1000 min⁻¹ and 20°C):

Measurement time depends on tractor size and location conditions:

• 300 kW – 1 min
• 275 kW – 2 min
• 250 kW – 2.5 min
• 225 kW – 3.5 min
• 200 kW – 4.5 min
• 160 kW – 7.5 min
• 140 kW – 9 min
• 110 kW – 40 min

Power Supply: 240 V, 16 A (slow fuse)

Dimensions and Weight:

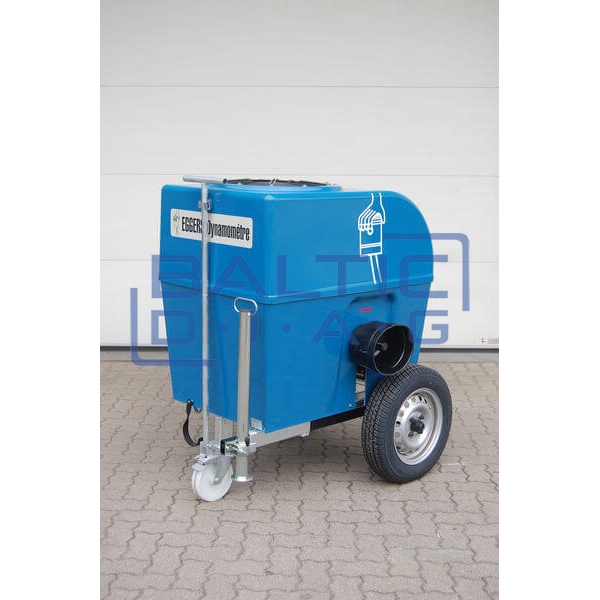

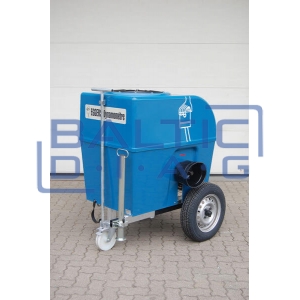

• PT 170 E (workshop version): Length: 900 mm, Width: 1000 mm, Height: 1500 mm, Weight: 525 kg

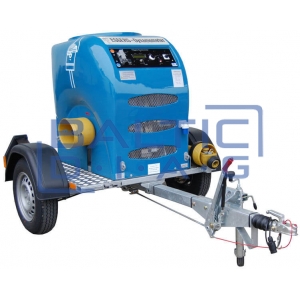

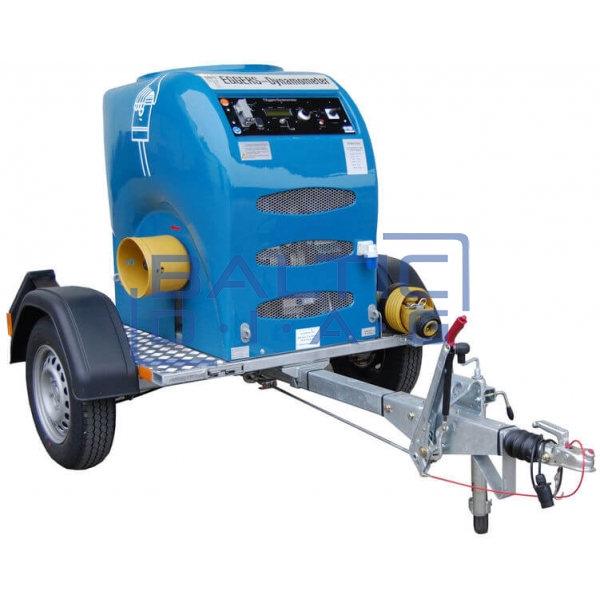

• PT 170 SE (road version): Length: 2350 mm, Width: 1600 mm, Height: 1350 mm, Weight: 550 kg

Frame: Galvanized frame, reinforced plastic (GRP) housing

Additional Equipment (at extra cost):

• PTZUB-002 Power Control software with cable control – 1799 EUR
• PTZUB-003 Power Control software with Bluetooth control – 2499 EUR
• PTZUB-019 Device for lifting the dynamometer with a forklift – 1299 EUR
• PTZUB-014 Additional fan cooling – 499 EUR
• PTZUB-015 Shock absorbers for speeds up to 100 km/h – 349 EUR
• PTZUB-009 Operating hours counter – 329 EUR
• PTO Drive Shaft (1⅜/6Z - 1¾/6Z Bandioli or Walterscheid for trailers) – 1399 EUR incl. VAT
• Calibration, 1-day registration in Germany (DE), TUV, and lighting equipment – 949 EUR
