Pneumatic-hydraulic jack for low lifter AC Hydraulic 40-4
Pneumatic-hydraulic jack for low lifter AC Hydraulic 40-4
Pneumatic-hydraulic jack for low lifter AC Hydraulic 40-4
Pneumatic-hydraulic jack for low lifter AC Hydraulic 40-4
Pneumatic-hydraulic jack for low lifter AC Hydraulic 40-4

Pneumatic-hydraulic jack for low lifter AC Hydraulic 40-4

  • SKU: BD25780
3,630.00 €

Prices shown include tax

Send Message

Description

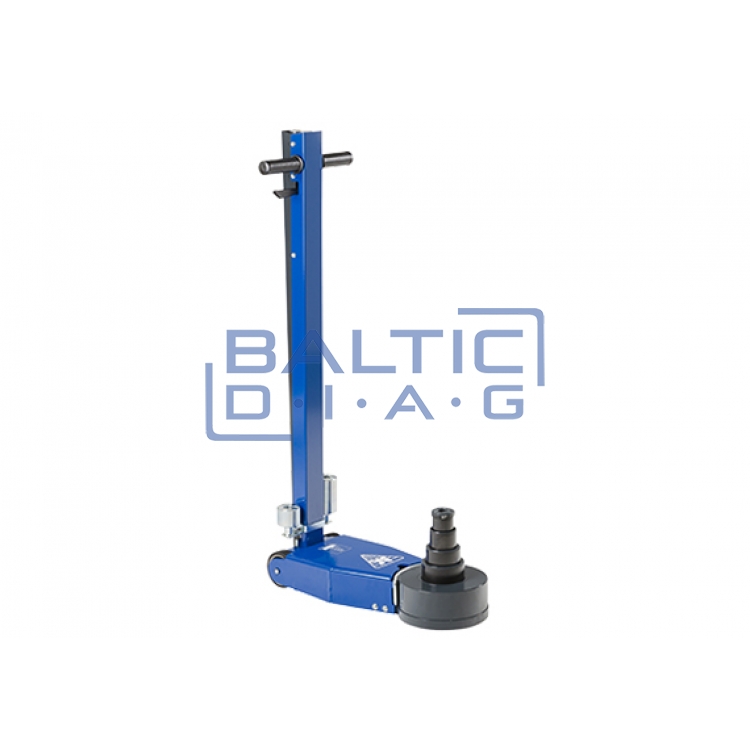

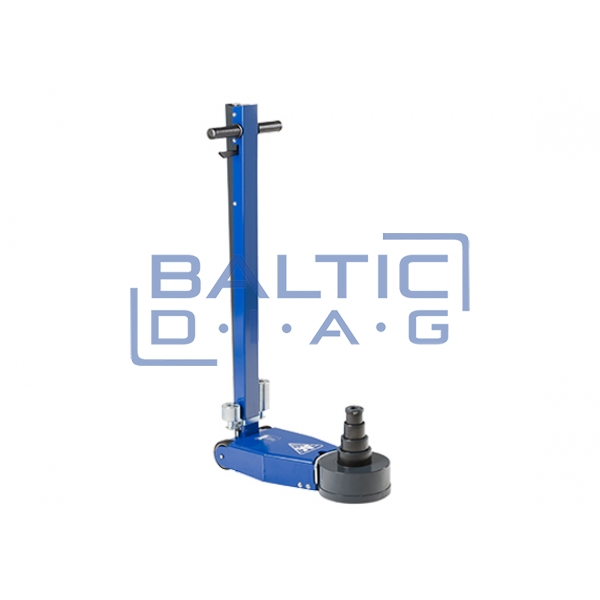

Pneumatic-hydraulic jack for low lifter AC Hydraulic 40-4


AC-Hydraulic, Denmark; Warranty: 3 years for hydraulics and 10 years for body parts

One-step, high-lift pneumohydraulic jack for agricultural, construction, truck trailers and other high-lift machines

Description:

The lowest pneumohydraulic hoist on the pick. The minimum height is only 100 mm
Telescopic cylinders ensure quick and safe lifting in four steps
Compact and short body, even for the lowest cars
Manual emergency control for optimum safety during lifting and lowering
Supplied with two extensions (50/100 mm)
Ergonomic handle with control buttons
Warranty: 3 years

Technical parameters:

- Lifting capacity: 40/27/16/10 tonnes
- Minimum height: 100 mm
- Maximum height: 145/180/230/275 mm
- Case length: 630 mm
- Handle length: 1160 mm
- Width: 235 mm
- Width (with wheels): 255 mm
- Required compressed air pressure: 6 - 10 bar
- Required compressed air flow: 170 L / min
- Weight: 50 kg
