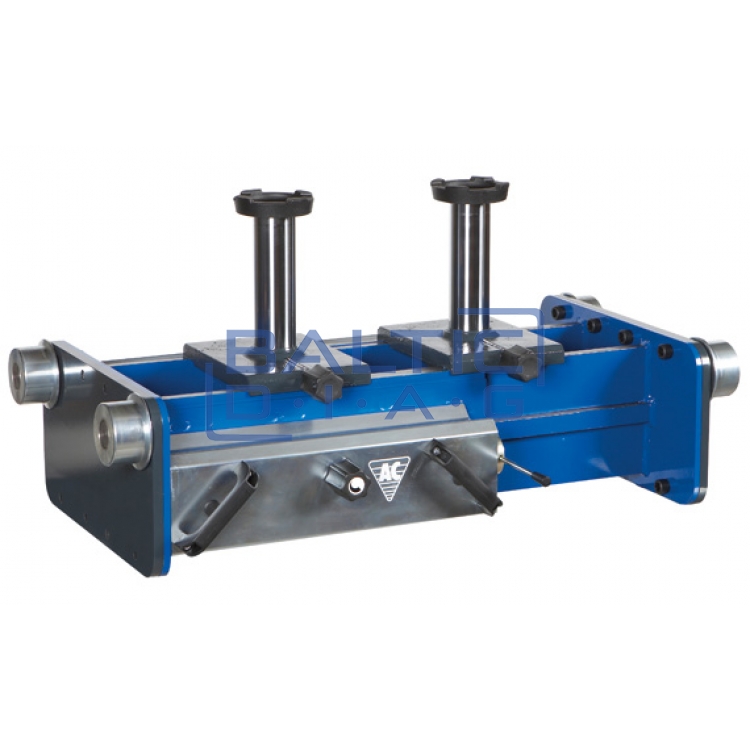

Pneumatic-hydraulic axle lift AC Hydraulic FL60-2


AC-Hydraulic, Denmark; Warranty: 3 years for hydraulics and 10 years for body parts

Standard pneumatic-hydraulic single cylinder axle lift for trucks

Description:

- Fast and accurate pneumatic-hydraulic axle hoist with high-speed cylinder
- Simple modern design with control panel and ergonomic working height
- Can be adapted for use with all trucks due to its adjustable body
- The height of the casing is adjusted and adjusted according to the customer's requirements
- Sliding cylinder
- Emergency release and overload valve for optimum safety
- Supplied with 1 x 100 mm extension
- Manufacturer: Denmark
- Warranty: 3 years

Technical parameters:

- Lifting capacity: 6 tonnes
- Stroke of piston: 200 mm
- Min. height: 305 mm
- Max. Height: 505 mm
- Lift width: 590 - 1410 mm
- Depth of lift: 665 mm
- Required compressed air pressure: 8 - 12 bar
- Required compressed air flow: 350 L / min
- Weight: 202 kg
