OBDStar D700 diagnostic equipment for water transport outboard engines

OBDStar D700 diagnostic equipment for water transport outboard engines

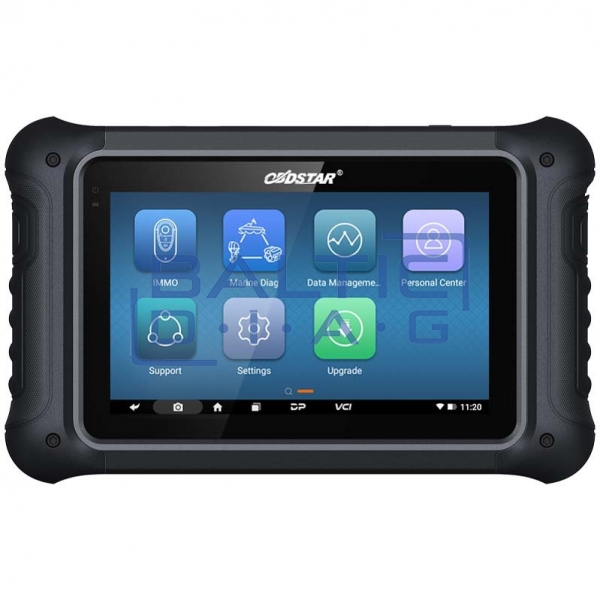

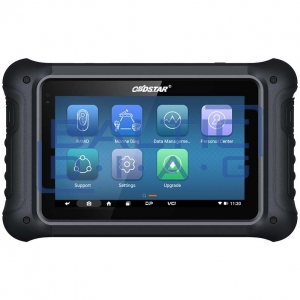

This D700 diagnostic device is a new generation OBDStar device, which is primarily designed for intelligent and detailed diagnostics of outboard engines in water transport. Based on a Rexchip microprocessor, the device with a 7" screen ensures extremely fast and smooth operation, regardless of the scope of work. It uses the latest 3.0 APK platform, which has fast features such as automatic car identification, smart data scanning and simplified operation. The diagnostic device has frequent update intervals and built-in help information, making it a great helper for marine maintenance engineers.

Features:

• It uses a new Android software version that ensures smooth operation of the equipment
• A simple and intuitive control menu allows you to quickly and quickly master the principles of equipment operation
• Provides full diagnostic functions including engine control module (ECU) information, fault code reading, fault code erasing, proper and safe data flow, ability to view stored additional information about existing faults and perform various active tests, coding
• Record and play back captured information in real-time, quickly and accurately. In this way, you will be able to accurately and quickly identify various sensor failures.
• Connecting to the Internet using the Wi-Fi interface and performing updates at the touch of a button
• Possibility of remote assistance by OBDStar technical staff

Functions:

• OBDStar software provides functions such as diagnostic slot location indication, coding code request, technical information, information on how to reset the service interval light interval, reading various parameters, etc. The D700 diagnostic tool helps you accurately and efficiently diagnose various vehicles.
• Various methods of displaying data, the ability to see them in textual, numerical and graphical form, which provides particularly convenient data analysis
• Supports fully automatic car VIN reading, multi-level adaptations, throttle calibration, navigation calibration, tilt calibration, idle adjustment, maintenance message reset and much more.

D700 device compatibility:

• Performing diagnostics, Evinrude
• Performing diagnostics, Hidea
• Performing diagnostics, Honda
• Performing diagnostics, Johnson
• Performing diagnostics, Mariner
• Performing diagnostics, Mercury
• Performing diagnostics, Parsun
• Performing diagnostics, Selva
• Performing diagnostics, Seven
• Performing diagnostics, Suzuki
• Performing diagnostics, Tohatsu
• Performing diagnostics, Yamaha
• Diagnostics DEMO, Suzuki

Technical parameters:

• Operating system: Android
• Processor: RK3128, quad-core
• Battery capacity: 3700 mAh
• Battery: lithium polymer
• Additional memory card: up to 32 GB, SD TF
• Internal memory: 16 GB
• Screen: 7", LCD, touch sensitive
• Screen resolution: 1024 x 600
• Wi-Fi interface: available
• Operating temperature: -20 °C ~ 55 °C
• Storage temperature: -20 °C ~ 70 °C
• Weight: 0.766 kg
• Dimensions: 243 x 148 x 36 mm

Complete set:

• Diagnostic equipment OBDStar D700 A
• Main diagnostic cable, M001B
• Power cable with terminals, M002
• Connector Honda, M015A
• Connector Parsun, M021A
• Connector Mercury, M060
• Connector Yamaha, M061
• Connector Suzuki, M062
• Connector Mercury, M064
• Connector Evinrude, M065
• Connector Tohatsu, M070
• Connector Tohatsu, M071
• Charger 12 V / 2 A
