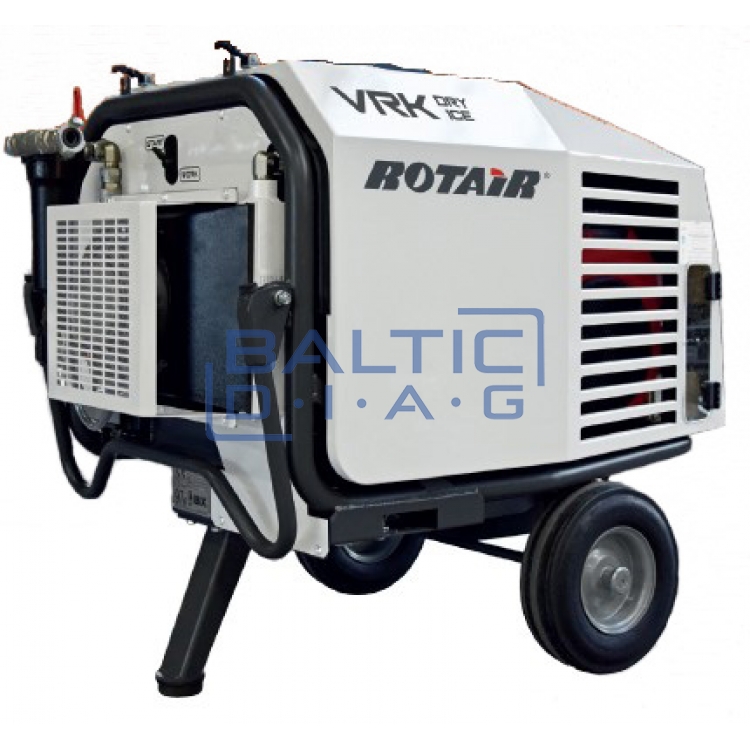

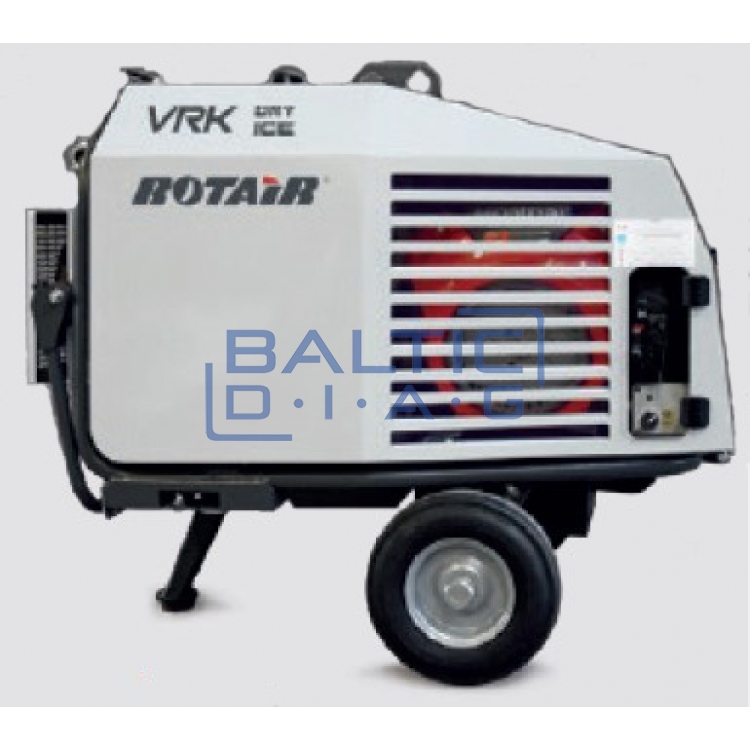

Mobile air compressor for dry ice cleaning equipment VRK Dry Ice

Mobile air compressor for dry ice cleaning equipment VRK Dry Ice

Manufacturer: Rotair, Italy.

Features:

• Lifting eye to allow the unit to be lifted with a crane
• High-quality machine wheels
• Option to purchase a device without wheels
• High efficiency V-belt transmission system
• Two stage oil/air filter. Ensuring the lowest oil content in the produced air, of the devices in its class
• Separate compressor air filter and internal combustion engine air filter
• Integrated two-level air dryer with air filtration filter
• Compact and very maneuverable design
• Very easy access to serviceable parts and components, easy to transport and quick preparation for work
• A special Rotair system that regulates the internal combustion revolutions depending on the required amount of air, thus reducing the noise level and improving fuel consumption
• Removable fuel tank for easier filling
• All filters are special Spin-on / bayonet type for faster replacement
• Effective starting starter, integrated working hours counter, manometer, thermostat with protection against excessive temperature
• Emergency stop device that monitors the oil level
• Cooling fan, covered and protected
• The muffler of the device is directed under the device, which reduces the noise level and prevents accidental burns

Technical parameters:

Compressor:

• Maximum working pressure: 12 bar - 174 psi | standard / 10 bar - 145 psi | additionally, double pressure
• Air flow: 1200 l/min | 42 cfm
• Minimum working pressure: 5.5 bar | 80 psi
• Transmission type: belt, XPZ
• Cooling system: oil / air
• Oil cooling capacity: 5 l
• Output connections: 1 x 3/4"
• Noise level: ≤ 97 LWA
• Air quality, oil content in compressed air: 1 - 3 PPM
• Air quality, compressed air temperature: ~ 0°C / +2°C

Gasoline internal combustion engine:

• Manufacturer: HONDA
• Model: GX690
• Number of strokes of the internal combustion engine: 4 strokes
• Working volume: 690 cm3
• Number of cylinders: 2 cylinders
• Type of air intake: atmospheric
• Maximum engine power (3600 rpm): 16.5 kW | 22.5 Ag
• Maximum engine speed: 3400 rpm
• Minimum engine speed: 2000 rpm
• Cooling system: air
• Lubrication system: oil
• Oil tank size: 1.9 l
• Battery pack: 12 V / 330 A / 45 Ah (EN)
• Fuel tank capacity: 15 l
• Working ambient temperature: -10°C / + 46°C

Total weight of the device: 260 kg
