Industrial 3-in-1 welding machine Hugong NVM500 500A

Industrial 3-in-1 Welding Machine Hugong NVM500 500A

Country of origin: Netherlands, warranty period – 24 months

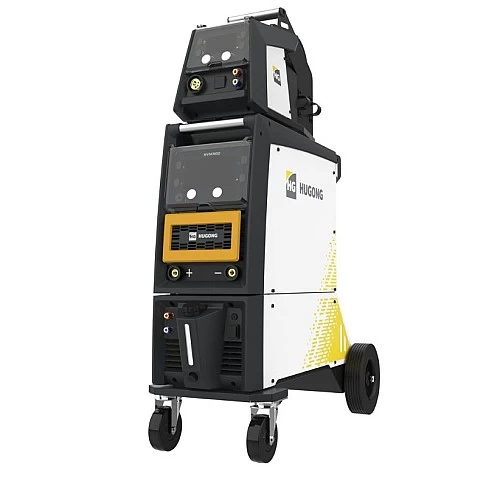

The Hugong NVM500 is an extremely powerful digital 3-in-1 industrial welding machine from the advanced NOVI series, designed for MIG/MAG, MMA, and Lift-TIG welding. The system comes equipped with water cooling, a 50-liter gas cylinder platform, a separate wire feed unit, and a 10-meter intermediate cable package. Engineered for demanding industrial environments, this machine offers durability, consistent power, and a high duty cycle.

The NOVI architecture, featuring Cortex M4 chip technology, a high-frequency IGBT inverter, an HDVision display, and synergic control, enables automatic parameter adjustment even when working with thicker wire or during prolonged welding sessions. The separate 4-roll wire feed unit ensures smooth, slip-free wire delivery. This tower-type machine is ideal for metalworking, structural fabrication, and shipbuilding applications.

Features:

• Powerful 3-in-1 welding solution: MIG/MAG, MMA, and Lift-TIG – for professional and continuous use
• Water cooling system – effectively prevents overheating during heavy-duty operation
• HDVision display with synergic control – intuitive user interface and automatic parameter adjustment
• Separate 4-roll wire feeder – consistent and strong wire feed without slippage
• Robust, impact-resistant ABS housing – built to withstand dust, impacts, and long-term use

Technical Specifications:

• Power supply: 400 V – 3 phase
• Frequency: 50/60 Hz
• Open-circuit voltage: 78 V
• Nominal input current: 38 A
• Duty cycle @20 °C: 60% – 500 A
• Duty cycle @40 °C: 60% – 500 A
• Welding Current Range:
• MIG: 30–500 A
• MMA: 25–500 A
• TIG: 15–500 A
• Compatible Welding Wire:
• MIG wire: 1.0–1.6 mm
• Flux-cored wire: 0.8–1.6 mm
• Protection class: IP21S

Product Dimensions:

• Length: 803 mm
• Width: 440 mm
• Height: 1070 mm
• Weight: 80.0 kg

Packaging Dimensions:

• Length: 990 mm
• Width: 495 mm
• Height: 1320 mm
• Weight: 138.0 kg

Included in the Package:

• MIG torch EP5000 – 4 m
• Ground clamp with 3 m cable (50 mm², 35–70 DINSE connector)
• Power cable: 10 m x 50 mm²
• Control cable: 10 m with 6-pin plug
• Gas hose: 12 m, Ø8 mm
• Water cooling hoses: 2 × 5 m
• Full-length rubber protective cover
• Contact tips: 1.0 mm, 1.2 mm, 1.6 mm (1 pc each)
• Wire spools: 1.2 mm and 1.6 mm (2 pcs each)
